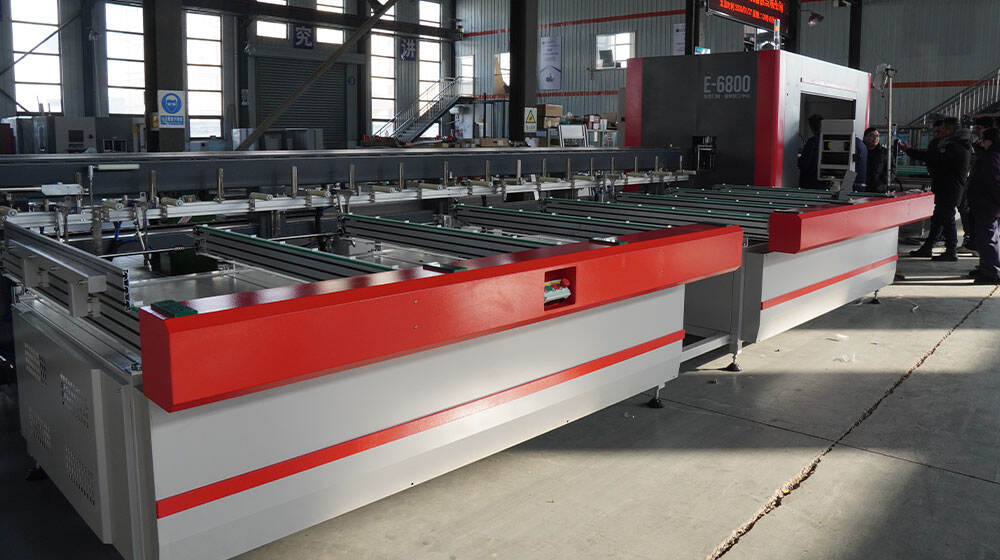

E6800 Intelligent Sawing & Milling Workstation

Engineered for precision aluminum profile processing, the E6800 serves a wide range of industries that demand automation, accuracy, and flexibility:

• Building Door & Window Systems: Mass production of frames, sashes, and mullions for thermally broken aluminum, system, and aluminum-clad wood windows — especially suited for custom, mixed-batch orders.

• Curtain Wall & Facade Engineering: Structural aluminum mullions and transoms for unitized and stick-built curtain walls, including decorative profiles.

• All-Aluminum Furniture: Cabinetry, wardrobes, and shelving systems requiring precise miter cuts and structural hole drilling/milling.

• Sunrooms & Skylights: Beams, rafters, and drip channels needing angular end cuts, concealed drainage, and mounting hole machining.

• Industrial Aluminum Structures: Workstation frames, machine guards, conveyor profiles, and modular assembly line components.

• Four-Zone Parallel Processing: A gantry-style front milling & laser unit handles lock holes, handle holes, drainage channels, and mounting holes; the central sawing unit executes cuts; two rear milling units finish corner code holes, glue injection holes, and corner relief. All four zones run simultaneously without interference, delivering up to 260 m² per day.

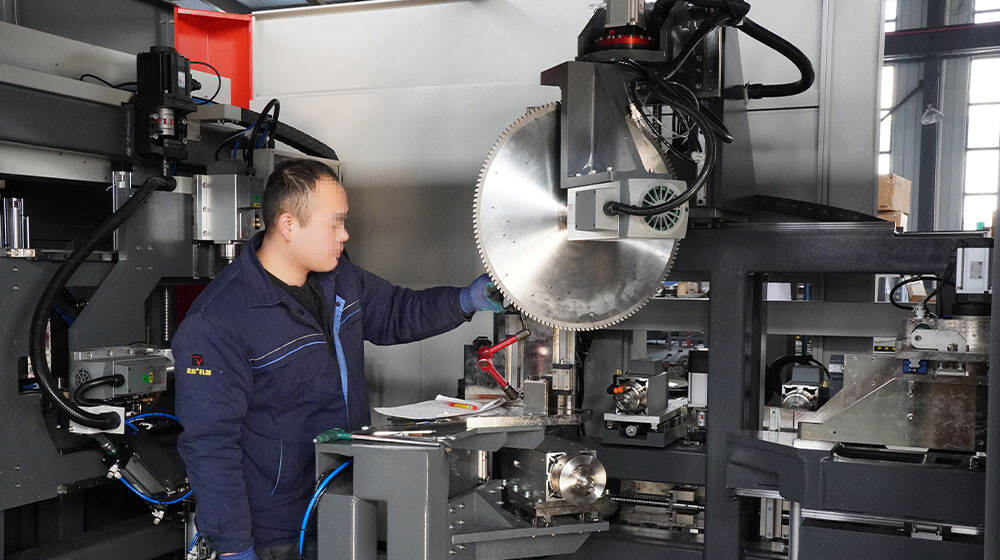

• Upper & Lower Saw Blade Configuration: The upper blade cuts any angle from 40° to 140° for complete miter flexibility, while the lower blade uses a fixed 45° bottom-up cut for trimming finished ends — preventing material chipping, improving cut finish, and extending blade service life.

• Unidirectional Feeding, Permanent Precision: A single-direction feeding robot eliminates mechanical backlash entirely, ensuring stable long-term cutting and positioning accuracy without the wear and error associated with reciprocating mechanisms.

• All-Spindle Milling, Zero Laser Holes: Six 3 kW high-speed spindles machine every slot, hole, and recess. This all-milling approach avoids the high equipment cost, ongoing maintenance expense, and profile coating “sunburn” damage inherent in laser cutting — preserving the profile’s surface finish and long-term corrosion resistance.

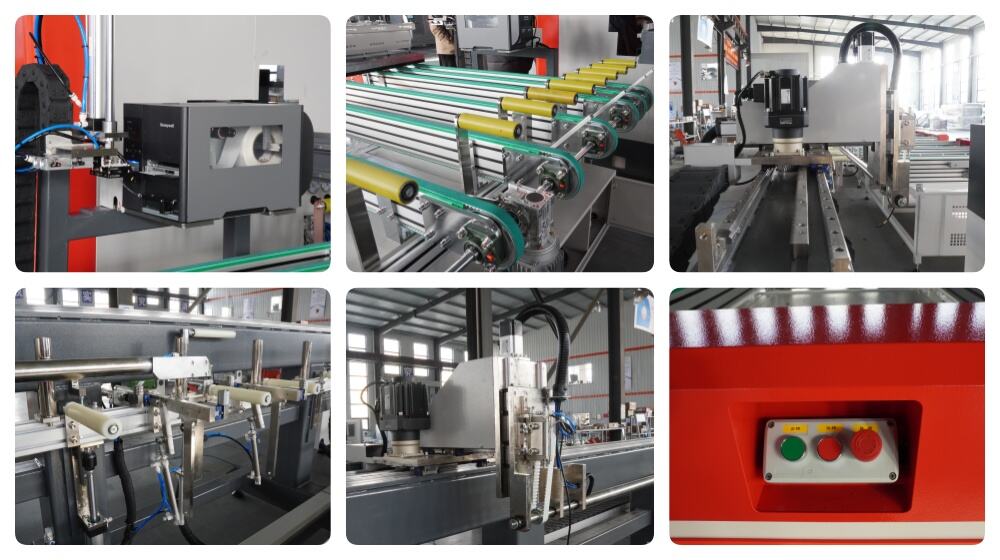

• One Clamping, Zero Transfer: Raw material enters, finished parts exit — automatically sorted and labeled. No intermediate inventory, no manual handling, and a direct handoff to the assembly line.

• Servo-Controlled Lateral Saw Movement: Both upper and lower saw spindles feature a side-shift function that retracts the blade clear of the cut surface, preventing micro-deformation drag marks and guaranteeing superior cut face quality.

• Fully Enclosed Eco-Friendly Machining: The sawing and milling unit is completely enclosed to contain aluminum chips and suppress noise. Integrated automatic chip removal keeps the workspace clean and safe.

• ERP-Ready Smart Manufacturing: Seamless integration with major window and door ERP platforms enables scan-to-start barcode processing. Production data flows directly from design drawings to the machine, enabling true digital manufacturing.

• Remote Diagnostics & Support: Built-in remote service capabilities for maintenance, troubleshooting, and training reduce downtime and lessen dependence on highly skilled on-site operators.
