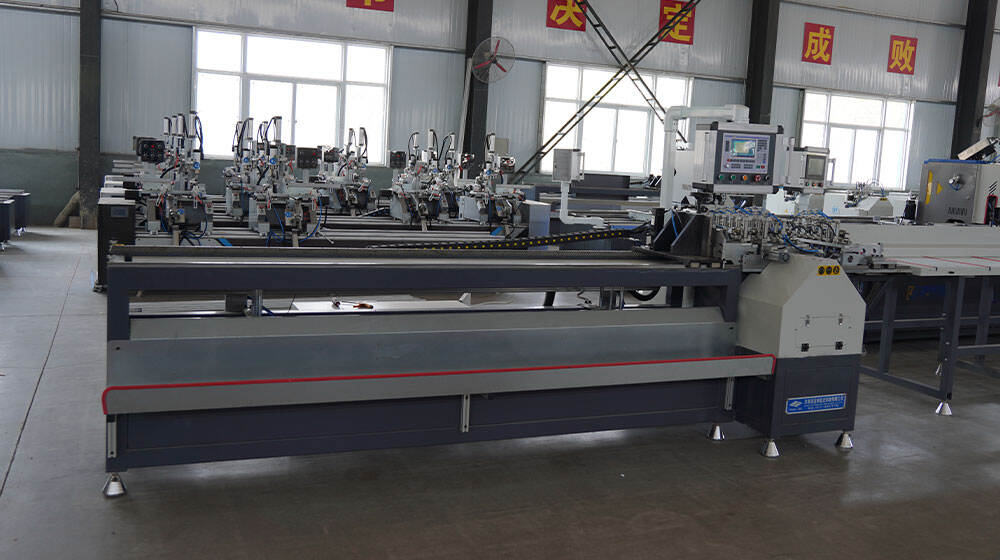

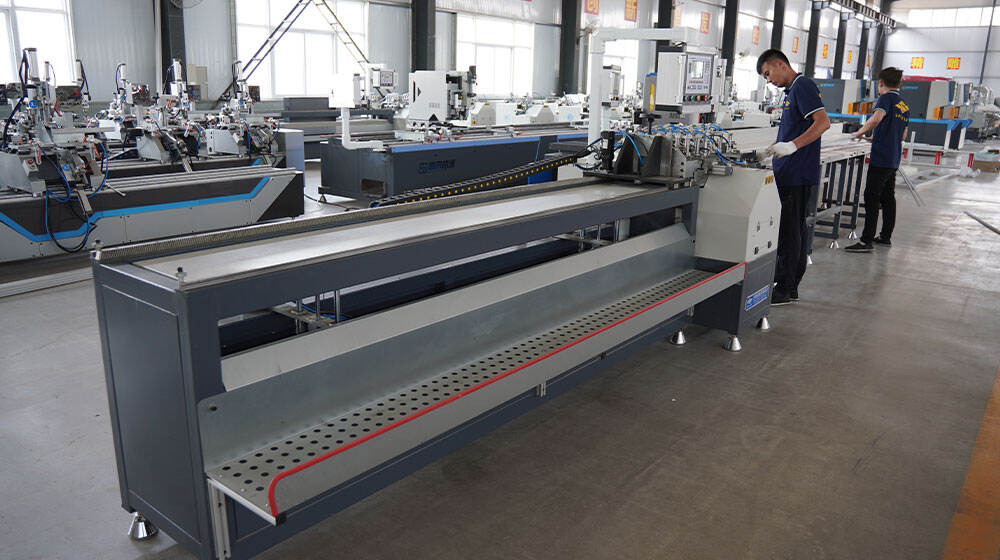

JP-Y2S CNC Glazing Bead Saw

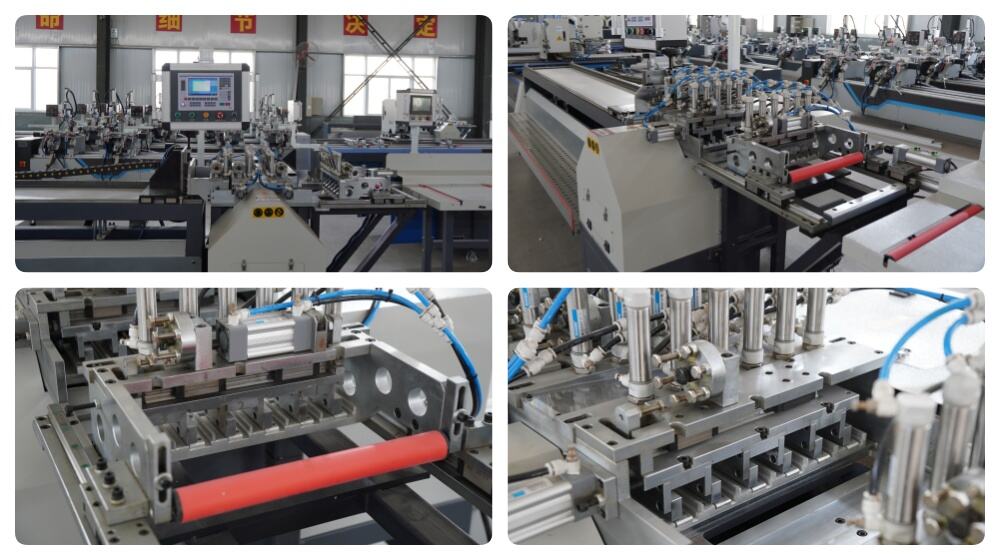

CNC glazing bead sawing machine for plastic profiles, a special equipment suitable for cutting glass glazing beads of PVC plastic-steel doors and windows. The main sawing unit adopts a high-precision spindle motor and two saw blades arranged in an X-shape, equipped with two sets of special milling cutters, which can chamfer the mounting claws of the glazing beads to 45 degrees for convenient installation by operators. The patented horizontal pressing mechanism allows manual adjustment of the horizontal pressing position via a digital display device according to glazing beads of different widths, ensuring a tight fit between the cut glazing beads and the glass.

Equipped with a well-known domestic brand CNC system for easy manual data input, and a precision planetary reducer driving rack-and-pinion transmission, featuring fast conveying speed and high accuracy. This machine can simultaneously cut up to 6 glazing beads of 6 meters in length in a single operation, making it the ideal sawing equipment for mass production in large-scale door and window processing enterprises.

Applications:

This machine is a special CNC glazing bead sawing equipment for plastic profiles, dedicated to cutting glass glazing beads of PVC plastic-steel doors and windows. It can chamfer the mounting claws of glazing beads to 45° and cut up to 6 pieces of 6-meter-long glazing beads at one time. It is widely applied in large-scale PVC plastic-steel door and window processing enterprises, glazing bead specialized production workshops and door and window accessory supporting factories, meeting the high-efficiency, high-precision cutting needs of mass production of glazing beads, and ensuring the installation fit between glazing beads and glass.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	JP-Y2S

Specifications:

Model	JP-Y2S
Power supply	380V50Hz（3 phase 4 wires）
Motor power	2.2（1.1X2）Kw
Air pressure	0.6~0.8MPa
Air consumption	200L/min
Blade size	Ø255mm ,Ø135mm
Rotation speed	2800r/min
Cutting length	300-3000mm
Cutting height	≤40mm
Profile width	10-38mm
Overall dimension	9500X1800X1950mm

Competitive Advantage:

1. Specialized Glazing Bead Processing: Dedicated to cutting glass glazing beads of PVC plastic-steel doors and windows, equipped with two special milling cutters to chamfer mounting claws to 45°, facilitating subsequent installation and matching the professional processing needs of glazing beads.

2. High-Efficiency Batch Cutting: Can simultaneously cut up to 6 glazing beads of 6 meters in length in a single operation, greatly improving mass production efficiency and meeting the large-volume processing needs of large-scale enterprises.

3. High Precision & Stable Transmission: Main sawing unit adopts high-precision spindle motor, matched with precision planetary reducer driving rack-and-pinion transmission, featuring fast conveying speed and high cutting accuracy, ensuring consistent glazing bead size.

4. Flexible & Precise Pressing: Patented horizontal pressing mechanism, with digital display device for manual adjustment of pressing position according to different width glazing beads, ensuring tight fit between cut glazing beads and glass.

5. User-Friendly CNC Operation: Equipped with well-known domestic brand CNC system, enabling easy manual data input, simple operation, lowering the operation threshold and ensuring stable and reliable processing quality.
