Butyl Sealant Coating Machine

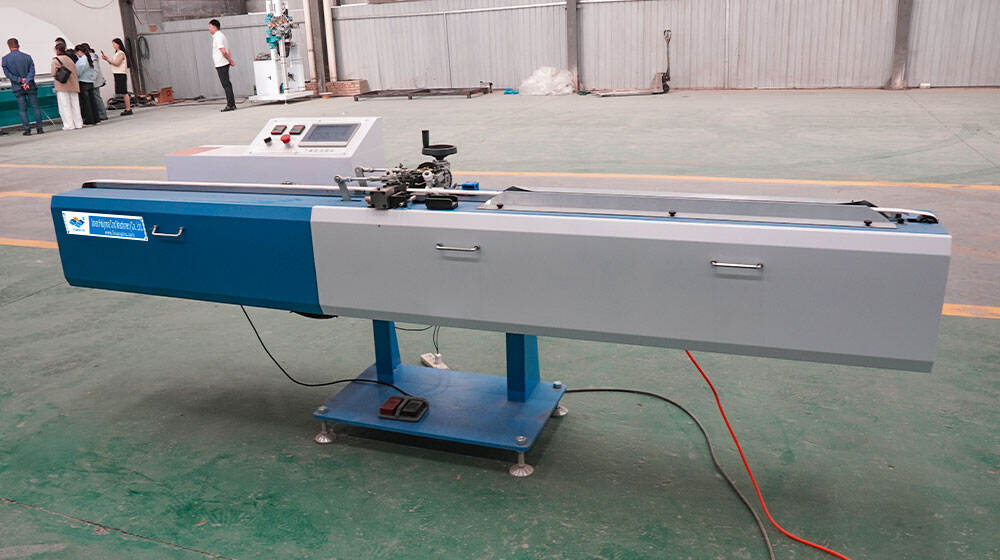

The MT-DJJ-05 Butyl Sealant Coating Machine is an automated machine specifically designed for producing the primary seal of insulating glass. Butyl sealant is a critical sealing material for insulating glass – its application quality directly affects the sealed life and anti‑fogging performance of the insulating glass unit. This machine adopts an advanced automatic nozzle adjustment system (6~18.5mm stepless adjustment), an efficient pulping system, and a touch screen HMI, achieving precise control of nozzle width, coating speed, and temperature.

In actual production, the operator simply sets the aluminium spacer width on the touch screen, and the machine automatically adjusts the nozzle position – no manual nozzle change is required. The variable‑frequency conveyor allows the coating speed to be smoothly adjusted between 2~45m/min, suitable both for small‑batch / multi‑variety flexible changeovers and for high‑speed continuous production. The large‑capacity glue cylinder (14KG per fill) effectively reduces the frequency of glue reloading. Together with the four‑section rotatable glue roller structure, daily cleaning and maintenance are extremely convenient.

The machine provides stable working pressure (extrusion pressure 10–20Mpa) and precise temperature control (110–140℃), ensuring that the butyl sealant always maintains good fluidity for uniform application – no bubbles, no interruptions. Total power consumption is only 3.75KW (220V supply), offering economical energy use. An optional liftable work table further improves operator comfort.

With its high precision, high stability, and easy operation, the MT-DJJ-05 Butyl Sealant Coating Machine is an ideal choice for mid‑to‑high‑end insulating glass production lines, helping users effectively improve the sealing quality and production efficiency of insulating glass.

The MT-DJJ-05 Butyl Sealant Coating Machine is a core piece of equipment for the primary sealing process on insulating glass production lines. Its main applications include:

• Insulating Glass Deep‑Processing Plants: Coating butyl sealant on both sides of aluminium spacers to form the primary seal of insulating glass units.

• Building Window Glass Production: Manufacturing insulating glass for residential buildings, offices, shopping malls, and other construction projects.

• LOW‑E Insulating Glass Production Lines: Cooperates with LOW‑E glass processing requirements, ensuring uniform butyl sealant application without damaging the coating.

• Curtain Wall Insulating Glass Manufacturing: Curtain wall glass demands higher sealing performance; stable coating quality effectively extends the service life of curtain wall glass.

• Specialty Insulating Glass (Argon‑filled, triple‑pane double‑cavity, etc.): Precise nozzle width control and stable extrusion pressure meet high sealing requirements.

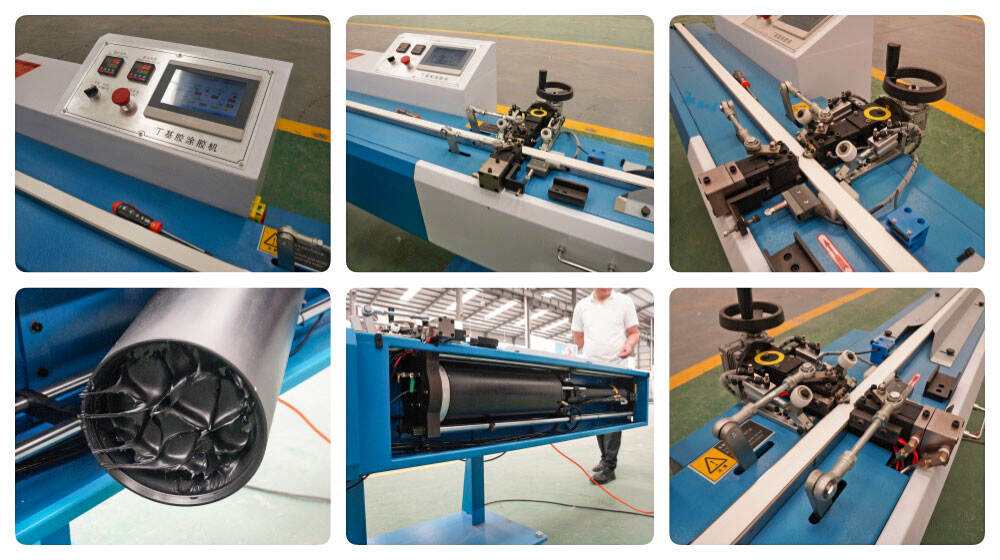

• Pioneering the use of automatic nozzle adjustment technology, the nozzle width can be infinitely adjusted within 6~18.5mm to suit different aluminium spacer specifications. No manual nozzle change is required, and adjustment is precise and fast.

• Adopts an advanced efficient pulping system (pneumatic pump system), making the output pressure more stable while reducing energy consumption. Stable pressure ensures uniform butyl sealant application without interruption, improving the quality of the primary seal of insulating glass.

• Equipped with a touch screen control system, all parameters (nozzle width, speed, temperature, etc.) are clearly displayed. Operation is intuitive and simple, reducing the skill requirement for operators and lowering training costs.

• The conveyor system uses variable frequency speed control. The coating speed is adjustable within 2~45m/min (as per the technical table), allowing flexible matching to production rhythm and meeting different efficiency requirements.

• The glue roller adopts a four‑section rotary structure that can rotate freely, making glue loading, cleaning, and maintenance much more convenient. Compared to traditional integrated rollers, daily upkeep is significantly simplified.

• The large‑size glue cylinder (diameter 120~250mm) holds up to 14kg of butyl sealant per fill, reducing downtime caused by frequent glue reloading and suiting continuous batch production.

• An optional liftable work table can adapt to different operator heights or different glass sizes, improving ergonomics.
