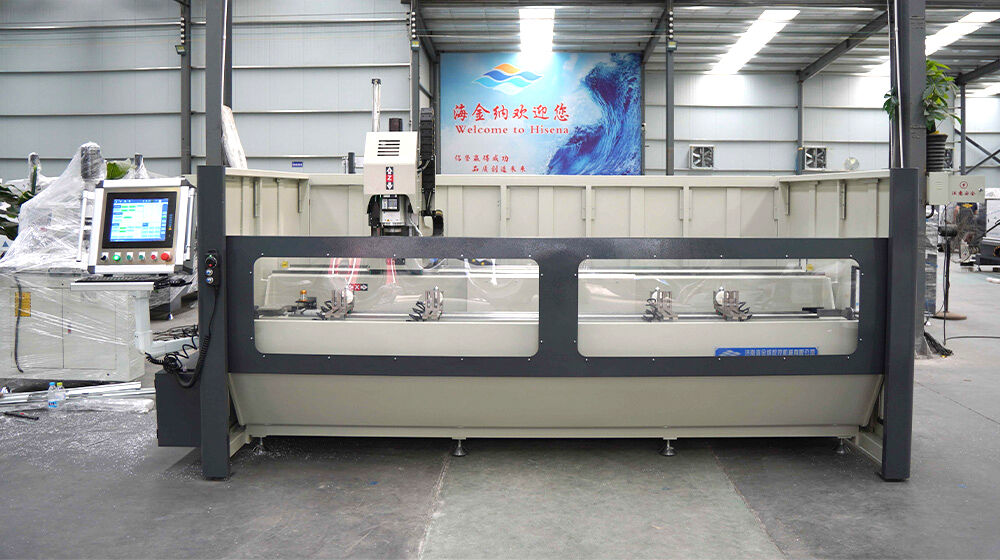

MC3-3000 3 axis CNC machining center

• MC3-3000 is a CNC machining center,It has X,Y and Z three CNC controlled axis.Drilling,contour or pocket milling and tapping can be done on this machine. This machine can be used for processing windows,doors,facade and curtain wall.As well as other products made of aluminum tubes. Example,the lock holes and slots,hinge holes,weep slots and assembly holes on aluminum windows and doors.

• Applicable material:aluminum,pvc and wood,steel tube is optional.

• Equipped with CNC numerical control system and CAM software which can read the .DXF drawing.

• Simple programming, the software comes with a graphics library containing a variety of machining hole patterns.

• Equipped with hand-operated pulse generator.

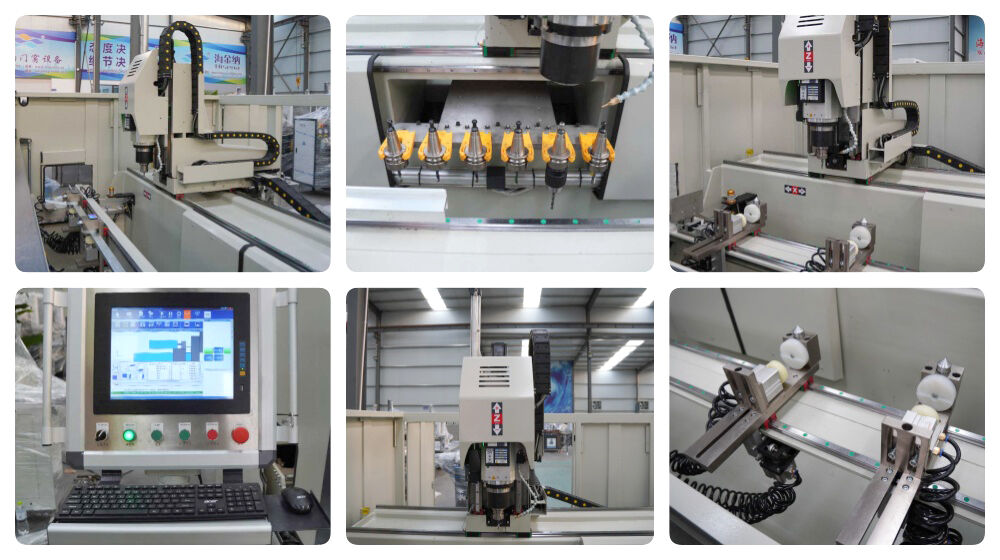

• Equipped with tools magazine,automatic tool change.

• Equipped with automatic tool setting guage.

• The position of the clamps can be scanned and adjusted automatically without manual intervention.

• The zero-point stop can be automatically turned over which is friendly for the processing at or near the end face.

• The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.

• Automatic coolant spraying.

• Automatic lubrication.

• Self-lifting safety guard.

Applications:

MC3-3000 is a CNC machining center with X, Y and Z three CNC controlled axes, capable of drilling, contour/pocket milling and tapping. It is widely applied in processing windows, doors, facades, curtain walls and other aluminum tube products, such as machining lock holes, slots, hinge holes, weep slots and assembly holes on aluminum windows and doors. Suitable for aluminum, PVC and wood materials (steel tube optional), it is ideal for professional door and window factories, curtain wall processing enterprises, aluminum product customization workshops and architectural decoration processing plants, meeting high-precision machining needs of building components and customized aluminum products.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	MC3-3000

Specifications:

Model	MC3-3000	Air consumption	100L/min
Power supply	380v/50hz	Magazine	6 tools
Electrospindle power	8kw	Tool holder	ISO30
Rated speed	12000rpm	Collet	ER32
Max.speed	24000rpm	X-axis speed	0-60m/min
X-axis stroke	3000mm	Y-axis speed	0-60m/min
Y-axis stroke	320mm	Z-axis speed	0-60m/min
Z-axis stroke	300mm	Dimension	420020002350mm
Air pressure	0.6-0.8Mpa	Weight	1800kg

Competitive Advantage:

1. Multi-process Integrated Machining: With X/Y/Z three CNC axes, it integrates drilling, contour/pocket milling and tapping, realizing one-machine multi-function and reducing the need for multiple equipment, improving processing efficiency.

2. Intelligent Programming & Drawing Compatibility: Equipped with CNC system and CAM software that supports .DXF drawing reading, plus a built-in graphics library of various hole patterns, making programming simple and reducing technical thresholds.

3. High Automation & Precision: Automatic tool change (with tool magazine), automatic tool setting gauge and automatic clamp position scanning/adjustment, reducing manual intervention and ensuring stable machining precision.

4. Flexible Multi-angle Processing: 3-side worktable turnover (0°, 90°, -90°) and automatic zero-point stop turnover, facilitating end face and multi-side processing of workpieces, adapting to diverse machining needs.

5. Stable & Safe Operation: Equipped with automatic coolant spraying, automatic lubrication and self-lifting safety guard, ensuring long-term stable operation, extending equipment service life and guaranteeing operator safety.
