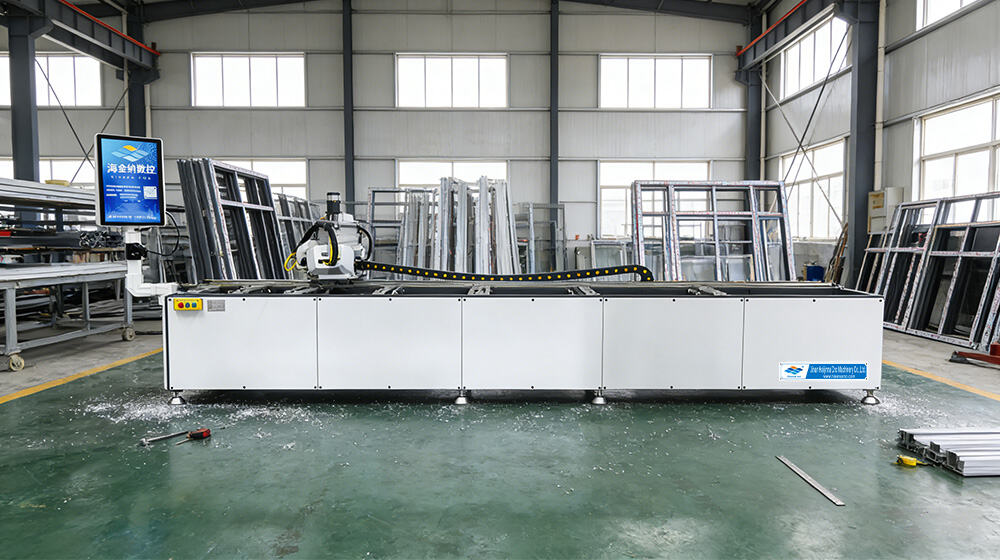

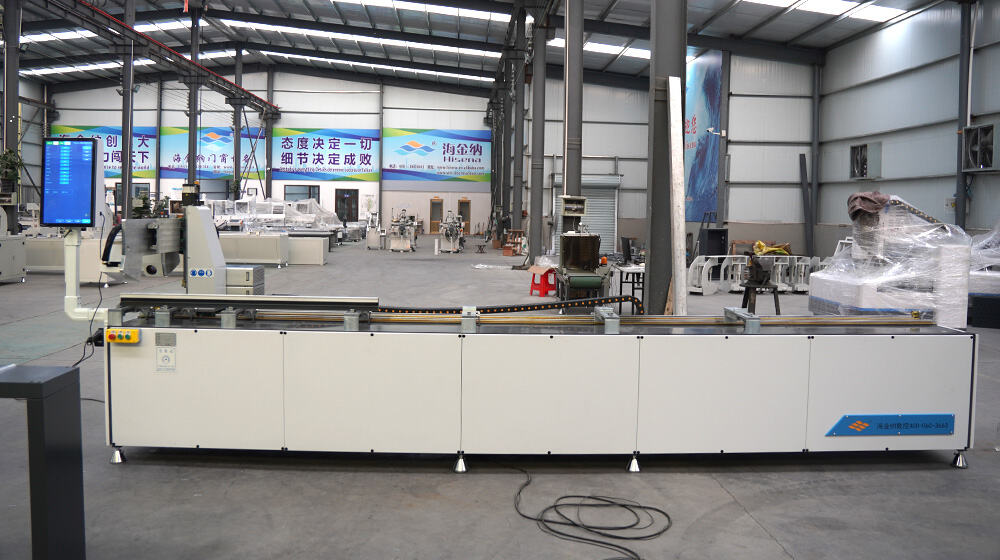

HJN-CNC-4500 Smart Connection CNC Laser Marking Machine

This machine is suitable for marking on process positions such as the water channel and mullion of aluminum alloy profiles.It adopts high-precision linear motion guides, ball screws, gear and rack drives, dual lasers, and 3-axis servo control, ensuring stable operation and high positioning and processing accuracy.

• Machine operation is simple and convenient

• Applicable to the marking of aluminum profile frame profile water gloves position, mullion position and other process positions

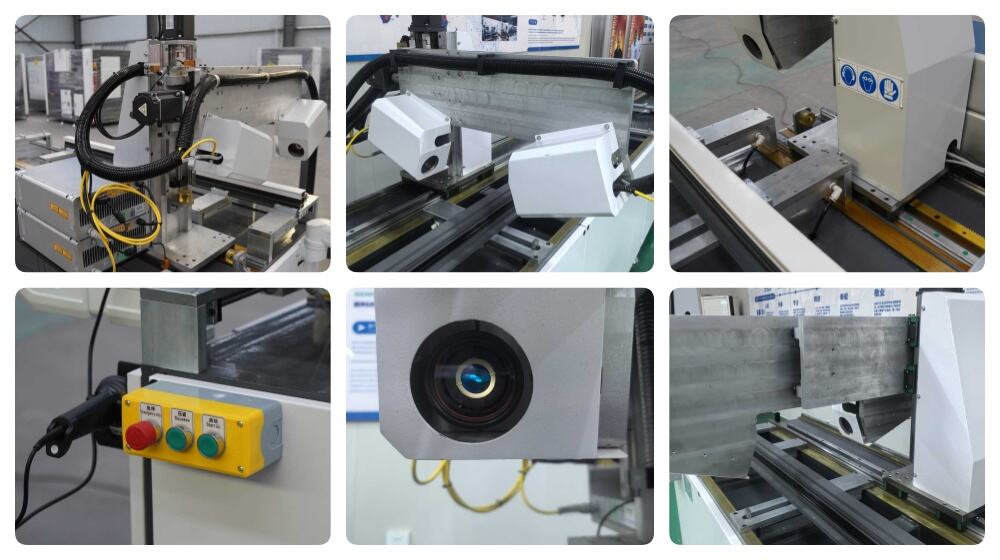

• Using high-precision linear motion unit, ball screw, rack and pinion, double laser, 3-axis servo, running smoothly, with high positioning and processing accuracy.

• Industrial control 21.5 inch touch screen, scanning code input task list, wireless networking, cloud generated profile

• processing program, convenient on-line Simple operation, plus all CNC intelligent completion, without human intervention.

Applications:

This laser marking machine is specially used for precision process positioning marking on aluminum alloy profiles, including water channel positions, mullion positions and other key processing points of thermal-break aluminum profiles, system door & window profiles. It is widely applied in high-end system window & door manufacturing, broken bridge aluminum window production, curtain wall profile processing, industrial aluminum profile fabrication, aluminum frame customization and automated door & window production lines.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	HJN-CNC-4500

Specifications:

Power	0.8KW
Applicable Material	Aluminum
Place of Origin	China
	Shandong
Core Components	Bearing, motor, PLC
Weight	400kg
Warranty	1 Year
Key Selling Points	Easy to Operate
Voltage	380V
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Brand Name	Hisena
Dimension(LWH)	520012001860mm
Power supply	380V, 50HZ or customized
Working pressure	0.5-0.8MPa
Servo Power	750W*3
Laser Power	20W*2
Processing Profile Height/Width	150*150mm
X Axis Working Range	4500mm
Z Axis Working Range	150mm
Y Axis Working Range	150mm
Dimension	520012001860mm

Competitive Advantage:

• Dual Laser & 3-Axis Servo High Precision:Adopts dual laser heads and 3-axis servo control system, matched with high-precision linear guides, ball screws and gear-rack drive, ensuring ultra-high positioning accuracy, clear and stable marking, no offset or blurring.

• Intelligent Cloud & Code-Scanning Operation:Supports code-scanning task input, wireless networking and cloud-generated profile processing programs, realizing full CNC intelligent operation without manual programming or intervention, greatly improving production efficiency.

• 21.5 Inch Industrial Touch Screen：Equipped with large industrial control touch screen, intuitive interface, simple and convenient operation, lowering operator training cost and suitable for rapid batch operation.

• Wide Profile Compatibility:Perfectly adapts to aluminum alloy, thermal-break aluminum, system door & window profiles and various architectural aluminum profiles, meeting diverse process marking requirements of different products.

• Stable & Durable Performance:Industrial-grade transmission structure and core components ensure smooth long-term operation, low failure rate, reduced maintenance cost and long service life.

• Unmanned Efficient Production:Fully automatic marking completion reduces manual errors, improves processing consistency and adapts to large-scale continuous production of modern door & window factories.
