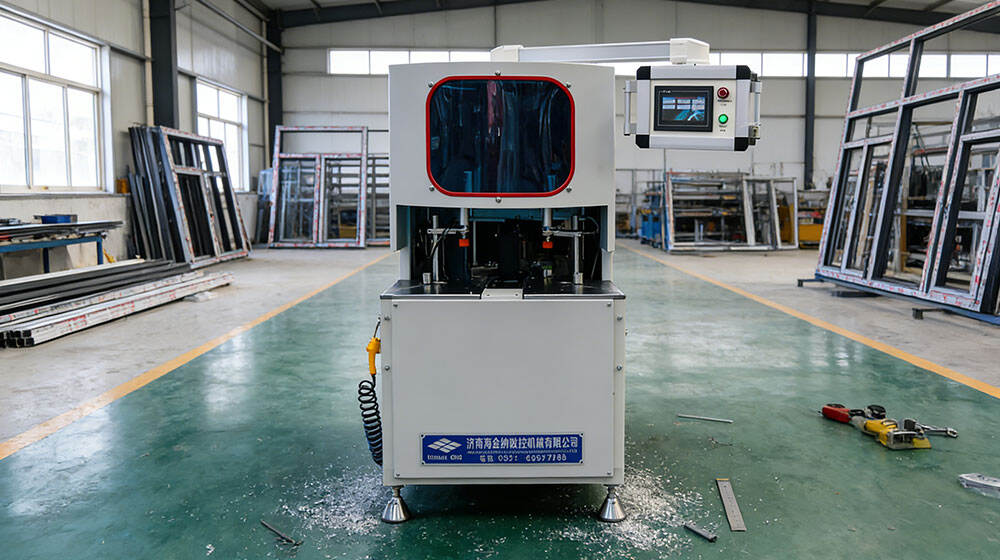

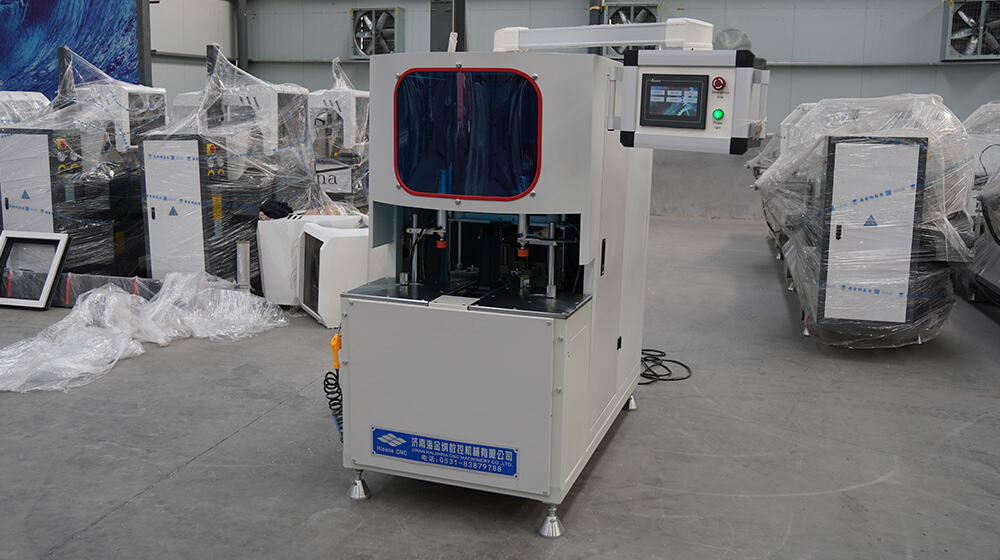

HJN03-CNC CNC Corner Cleaning Machine (3 Tools)
- Specifically designed for cleaning welding beads and weld seams at the 90° outer corners, outer corner bevels, upper and lower profiles, and rubber strip installation grooves of PVC door and window frames and sashes.

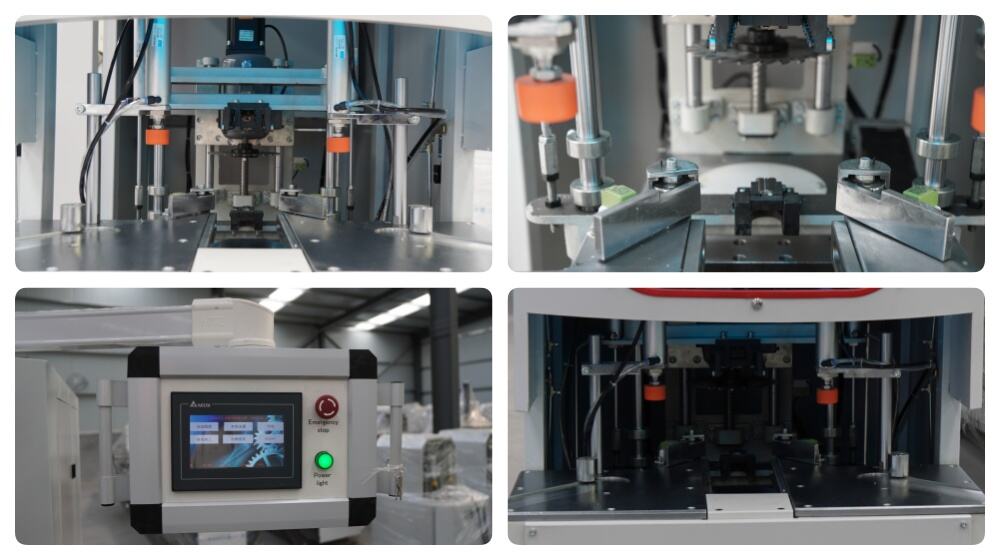

- Equipped with multiple functions including sharp cutting, saw milling and broaching, it adopts a standard numerical control system, a classic and complete set of CNC machine tool system that has been tempered in the CNC machine tool industry for more than ten years, featuring stable performance and reliable quality.
- The control system has replaced the original unstable system controlled only by a programmable logic controller (PLC), completely solving the problem of step loss.
- The reliability of the whole machine control system has been significantly improved, enabling easy realization of linear interpolation and circular interpolation.
- The color LCD display operation interface is simple and intuitive, making it easy to operate and master.
Applications:
This machine is a dedicated equipment in the PVC door and window manufacturing industry, specifically designed for cleaning welding beads and weld seams of PVC door and window frames and sashes—including 90° outer corners, outer corner bevels, upper and lower profiles, and rubber strip installation grooves. It is widely applied in professional PVC door and window factories, large-scale profile processing workshops, and high-end PVC door and window production lines. It meets the high-precision cleaning needs of PVC door and window weld seams, ensuring the flatness of profiles and the tightness of rubber strip installation, and is an essential equipment to improve the quality and aesthetics of PVC doors and windows.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
HJN03-CNC |
Specifications:
|
Model |
HJN03-CNC |
|
Power supply |
AC 380V 50Hz |
|
Input power |
1.5kw |
|
Air pressure |
0.4-0.6Mpa |
|
Air consumption |
100L /min |
|
Profile width |
20-120mm |
|
Profile height |
20-120mm |
|
Grooving depth |
0.3±0.15mm |
|
Grooving width |
3±0.15mm |
|
Clean type |
Upper,lower and external corner seams |
|
Overall dimension |
1510x850x1780mm |
|
Weight |
700kg |
Competitive Advantage:
1. Specialized Weld Seam Cleaning: Exclusively designed for cleaning PVC door and window frame/sash weld seams and welding beads, targeting 90° outer corners, bevels, upper/lower profiles and rubber strip grooves, perfectly matching the professional cleaning needs of PVC doors and windows.
2. Multi-Functional Integrated Cleaning: Integrates sharp cutting, saw milling and broaching functions, realizing one-stop cleaning of various weld seam positions, improving cleaning efficiency and reducing manual operation steps.
3. Stable & Reliable CNC System: Adopts a standard CNC system tempered in the CNC machine tool industry for over ten years, replacing the unstable PLC-only control system, completely solving the step loss problem and enhancing overall control reliability.
4. High-Precision Interpolation Control: Easily realizes linear interpolation and circular interpolation, ensuring precise cleaning of weld seams and welding beads, maintaining the flatness and dimensional accuracy of PVC profiles.
5. Simple & Intuitive Operation: Equipped with a color LCD display operation interface, which is simple and intuitive, reducing the operation threshold and enabling workers to master it quickly.
