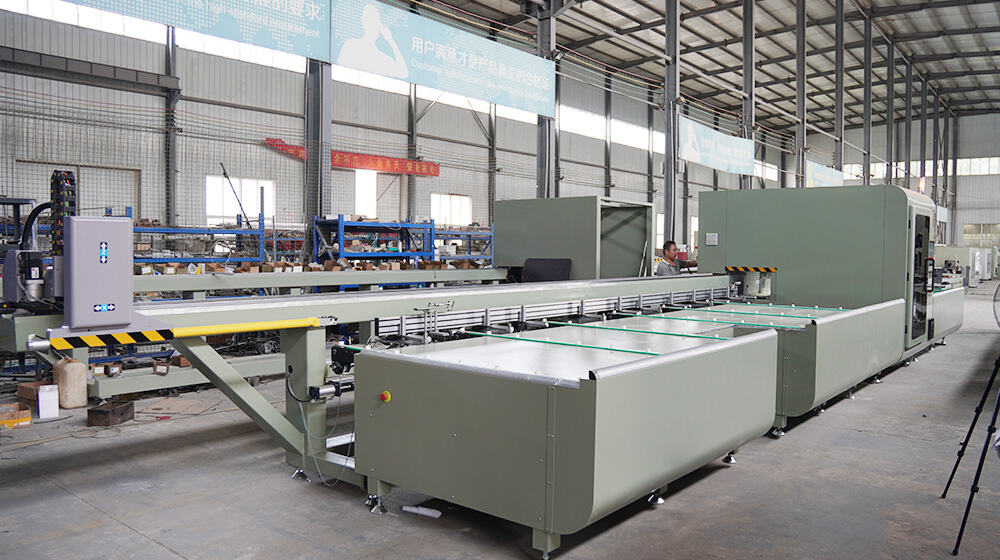

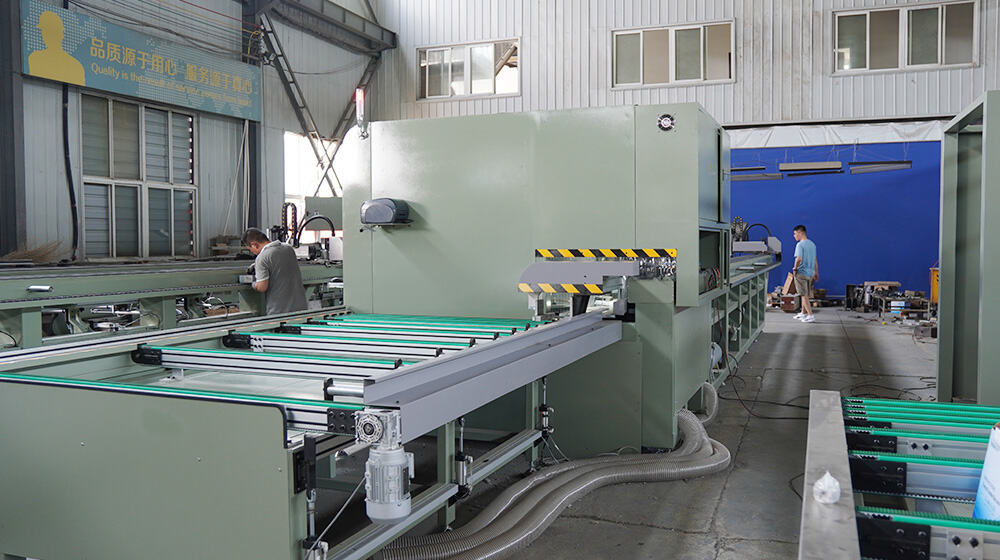

HJN-Z550×6500 CNC cutting center

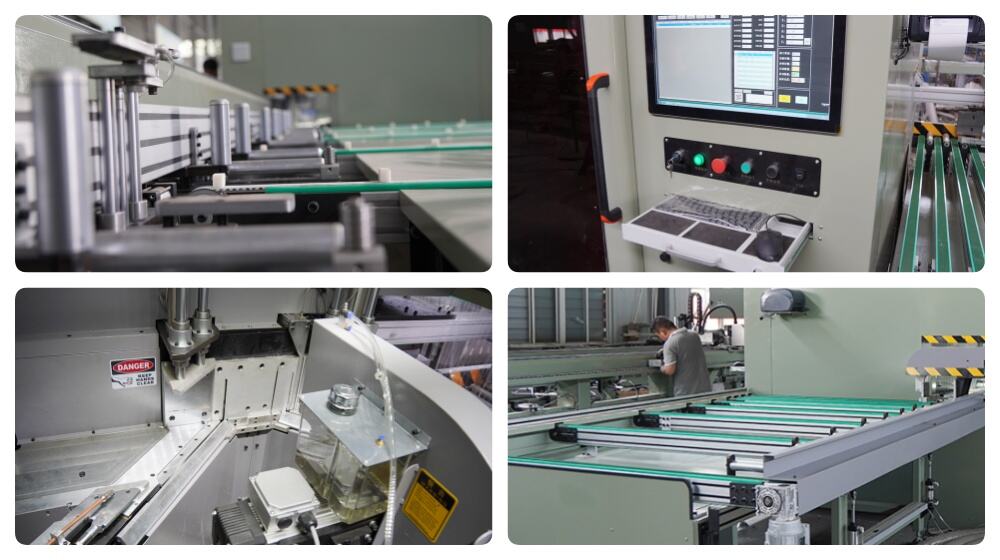

• HJN-Z550×6500 is a CNC cutting center or called cutting production line, this line includes 5 units: control unit, loading unit, feeding unit, cutting unit and unloading unit. It is designed to improve production efficiency and optimize production schedule while maintaining cutting quality.The production capacity per shift is 2500 to 3000 pieces.

• The control unit is equipped with an industrial computer and servo drive system.

• Equipped with optimized software for reasonable production schedule, and also supports importing programs generated from other software via U-disk and wireless.

• Six CNC axes, multi-stage clamping and holding devices are realized by CNA communication, frequency converter, driver bus and PLC.

• HMI is easy to understand and operate.

• 7 profiles of loading capacity and automatic conveying.

• Automatic gripper feed.

• The cutting unit includes 3 spindles:two for mitre 45 degree cutting,one for 90 degree cutting.

• Equipped with high precision spindle motor

• Profile automatically retracts to prevent scratches when the blade is retracted.

• Equipped with belt conveyor and vacuum cleaner to discharge wastes and chips.

• Automatic picking and conveying of finished products.

• Equipped with label printer.

• Automatic lubrication.

Applications:

HJN-Z550×6500 is a single CNC cutting center (cutting production line) that integrates 5 units: control unit, loading unit, feeding unit, cutting unit and unloading unit. It is designed to improve production efficiency and optimize schedules while ensuring cutting quality, with a per-shift capacity of 2500-3000 pieces. It is suitable for mass cutting of aluminum, PVC and thermal break profiles, widely applied in large-scale door and window manufacturing factories, profile processing bases and automated production workshops. It is ideal for batch production of door and window frames, sashes and related components, adapting to high-efficiency, high-precision mass production needs, and supporting continuous production of large orders and standardized profile processing.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	HJN-Z550×6500

Specifications:

Model	HJN-Z550*6500	Max.cutting width	150mm
Air pressure	0.6-0.8Mpa	Cutting angle:	90°/45°
Air consumption	200L /min	In feed stroke	6500mm
Input power	15kw	Out feed stroke	1000mm
Spindle motor power	3*3kw	Rated in feed rate	80m/min
Rotation rate	2850rpm.	Rated out feed rate	60m/min
Servo motor power	50.75kw,10.4kw	Repeatability	≤0.2mm
Loading capacity	7	Angle tolerance	4′-6′
Profile length	2500-6500mm	Flatness	≤0.1mm
Blade size:	Ø550Ø304.4mm*140T	Surface roughness	Ra12.5um
Rated feed rate	30m/min	Overall dimension	14000*4000x2400mm
Cutting length	300-3500mm	Weight	5500Kg

Competitive Advantage:

1. High-Efficiency Automatic Production Line: Integrated 5 units (control, loading, feeding, cutting, unloading) with automatic conveying, gripper feeding and finished product picking, achieving fully automated operation and a high per-shift capacity of 2500-3000 pieces.

2. Multi-Spindle Precision Cutting: Equipped with 3 high-precision spindle motors (2 for 45° mitre cutting, 1 for 90° cutting), ensuring stable and accurate cutting, and profile retraction to avoid scratches during blade retraction.

3. Intelligent & Convenient Control: Industrial computer and servo drive system, optimized scheduling software, supporting U-disk and wireless program import, with an easy-to-operate HMI, reducing operation and programming thresholds.

4. Efficient & Clean Processing: Equipped with belt conveyor and vacuum cleaner for waste/chip discharge, plus automatic lubrication, ensuring a clean workshop environment and reducing maintenance workload.

5. High Compatibility & Stability: 6 CNC axes and multi-stage clamping devices, supporting 7 profiles loading capacity, adapting to mass standardized processing and ensuring stable operation for long hours.
