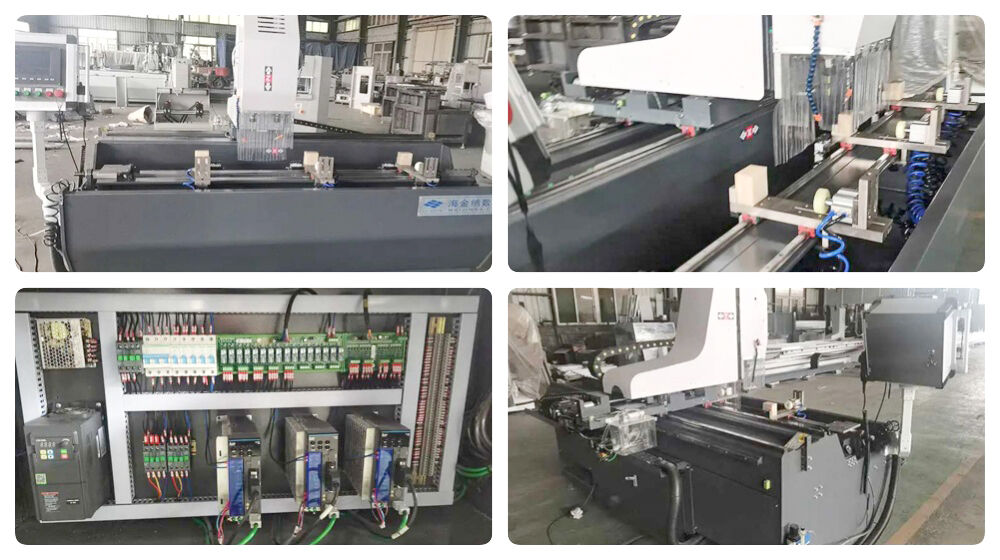

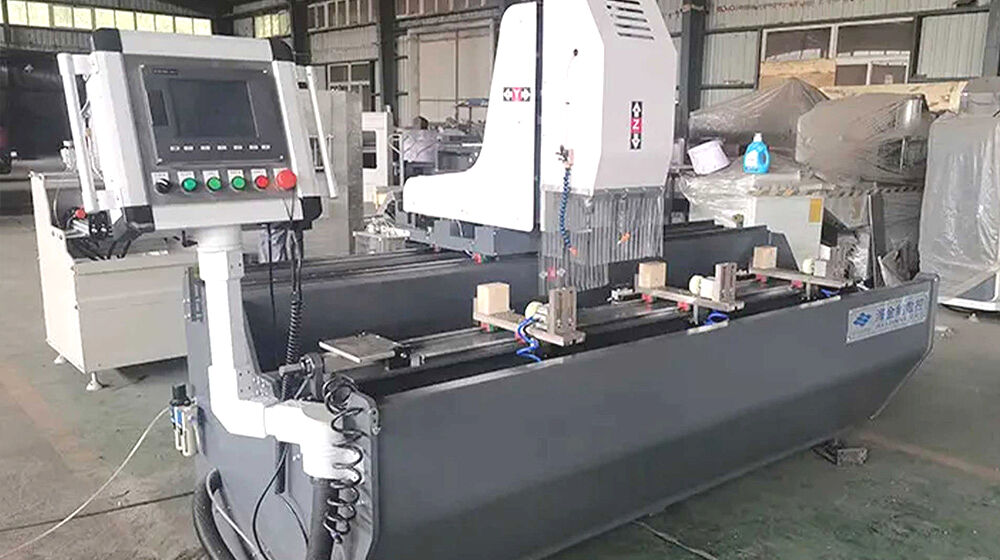

LZX-3000D 3-axis CNC Copy Router with Dual Spindle
• LZX-3000D is a 3-axis cnc copy router with dual spindle,It’s used for cnc drilling and milling,as well as routing of lock hole and slot,water drain slots and hinge holes on aluminum windows and doors.
• Applicable material:pvc,aluminum profile.
• Two programming methods: graphics and G-code.
• Abundant graphics library for door and window processing options.
• X,Y,Z three axis with servo-feed,fully automatic processing.
• Equipped with dual spindle for saving time on manual tool changes.
• Equipped with hand-operated pulse generator.
• The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.
• Automatic coolant spraying.
• Automatic lubrication.
• Pneumatic tilted X0 stopper.
Applications:
LZX-3000D is a 3-axis CNC copy router with dual spindle, mainly used for CNC drilling, milling, as well as routing of lock holes, slots, water drain slots and hinge holes on aluminum windows and doors. Applicable to PVC and aluminum profiles, it is widely applied in professional door and window manufacturing factories, aluminum profile processing workshops and customized door and window processing centers. It is ideal for high-precision machining of door and window functional holes and slots, meeting the batch and customized production needs of aluminum and PVC windows and doors, and adapting to mainstream door and window processing scenarios with high efficiency and stability.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
LZX-3000D |
Specifications:
|
Model |
LZX-3000D |
|
Power supply |
380v/50hz |
|
Air pressure |
0.5-0.8mpa |
|
Spindle motor power |
3.7kw+3.7kw |
|
Servo motor power |
3*750w |
|
Rated rotation rate |
12000rpm |
|
Max. rotation rate |
18000rpm |
|
X-axis stroke |
3000mm |
|
Y-axis stroke |
300mm |
|
Z-axis stroke |
280mm |
|
Processing range |
160*160mm |
|
X-axis feed rate |
0-60m/min |
|
Y,Z-axis feed tate |
0-20m/min |
|
Collet |
ER25 |
|
Dimension |
3900*1700*2100mm |
|
Weight |
1500Kg |
Competitive Advantage:
1. Dual Spindle Efficient Processing: Equipped with dual spindle, which saves time on manual tool changes, greatly improving processing efficiency and reducing downtime in batch production.
2. Flexible & Simple Programming: Two programming methods (graphics and G-code) with an abundant graphics library for door and window processing, lowering operation threshold and adapting to different operator skill levels.
3. High Precision & Full Automation: X, Y, Z three axes with servo-feed, realizing fully automatic processing, ensuring stable precision and reducing manual operation errors.
4. Convenient Multi-side Processing: Worktable can be turned over on three sides (0°, 90°, -90°), facilitating multi-side machining of profiles and adapting to diverse hole/slot processing needs of windows and doors.
5. Stable & Low Maintenance: Equipped with automatic coolant spraying and automatic lubrication, ensuring long-term stable operation, extending equipment service life and reducing daily maintenance workload.
