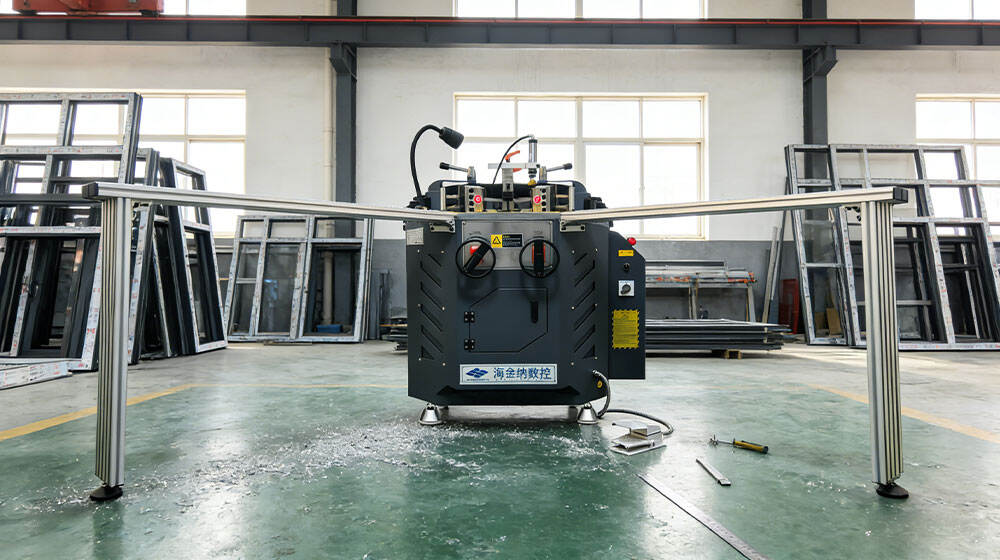

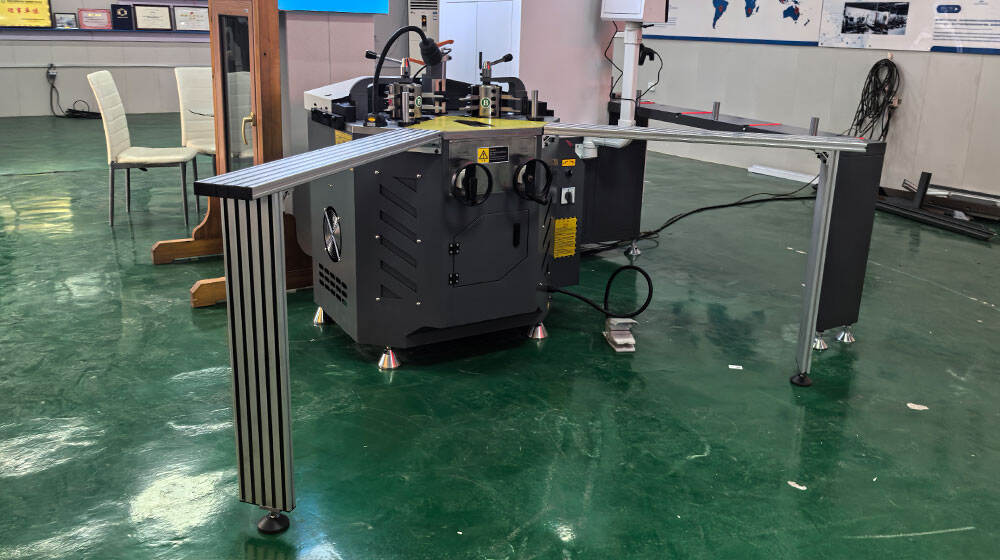

HJN-120A Tool Changer Corner Combining Machine

• This machine is used for 90-degree corner connector assembly of aluminum doors and windows, featuring synchronous, firm, accurate and flat corner assembling.

• The machine adopts pneumatic, electric and hydraulic combined operation control. With a new mechanical linkage structure, it eliminates the impact of oil pressure fluctuations on corner assembling quality, ensuring fully synchronous corner assembling, more consistent corner assembling depth and more precise 90-degree angle of assembled corners.

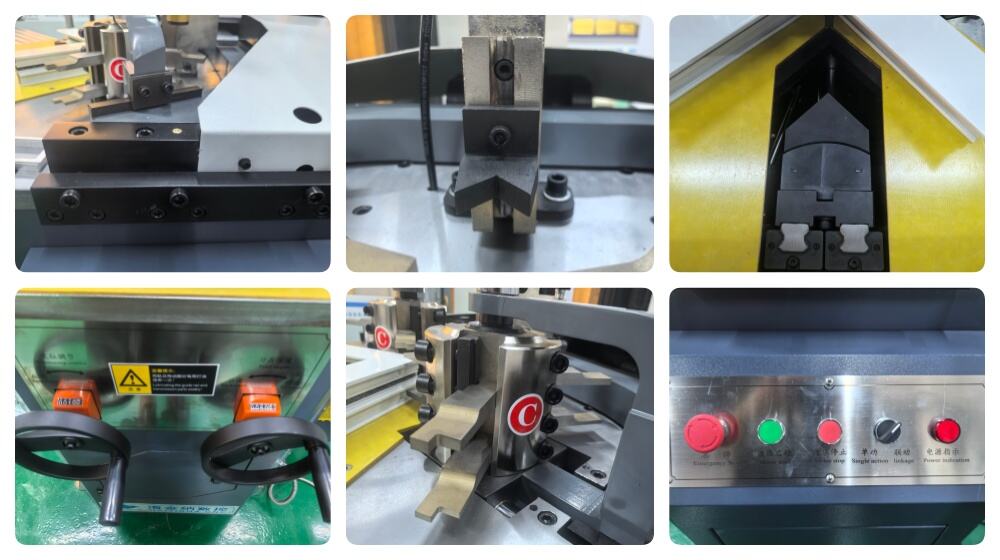

• Tool changing is realized through tool rest rotation, tool replacement and locking, with a tool changing time of three seconds.

• Adjustment is performed via a handwheel, which is equipped with a counter for precise adjustment.

• Positioning adopts pneumatic lifting plus electric adjustment.

• The mechanical transmission structure consists of polished shafts and copper sleeves, minimizing wear under long-term and high-load working conditions.

Applications:

This machine is specially used for 90-degree corner connector assembly of aluminum doors and windows, featuring synchronous, firm, accurate and flat corner assembling. It is widely applied in professional aluminum door and window manufacturing factories, door and window assembly workshops and aluminum profile processing centers. Suitable for various specifications of aluminum door and window frames, it meets the high-precision and high-efficiency assembly needs of batch production and customized processing. It is ideal for assembling standard and non-standard aluminum window and door corners, ensuring the firmness and flatness of corner joints, and is an essential equipment for modern aluminum door and window intelligent assembly lines.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	HJN-120A

Specifications:

Model	HJN-160
Power supply	380V/50Hz
Input power	3Kw
Air pressure	0.5–0.8MPa
Air consumption	2L/min
Rated hydraulic Pressure	15MPa
Crimping force capacity	48Kn
Crimping stroke	85mm
Fuel tank capacity	20L
Crimping height	20-160mm
Weight	450Kg
Dimension	123010601300mm

Competitive Advantage:

1. Stable & Precise Assembly: Adopts pneumatic, electric and hydraulic combined control with a new mechanical linkage structure, eliminating the impact of oil pressure fluctuations, ensuring fully synchronous corner assembly and precise 90-degree angles.

2. Ultra-Fast Tool Change: Tool changing is completed in 3 seconds via tool rest rotation, replacement and locking, greatly reducing downtime and improving assembly efficiency.

3. Precise Adjustment: Equipped with a handwheel with a counter for accurate adjustment, enabling precise control of assembly parameters and reducing operation errors.

4. Flexible Positioning: Adopts pneumatic lifting plus electric adjustment for positioning, adapting to different specifications of aluminum profiles and ensuring stable positioning during assembly.

5. Durable & Wear-Resistant: Mechanical transmission uses polished shafts and copper sleeves, minimizing wear under long-term high-load operation, extending service life and reducing maintenance costs.
