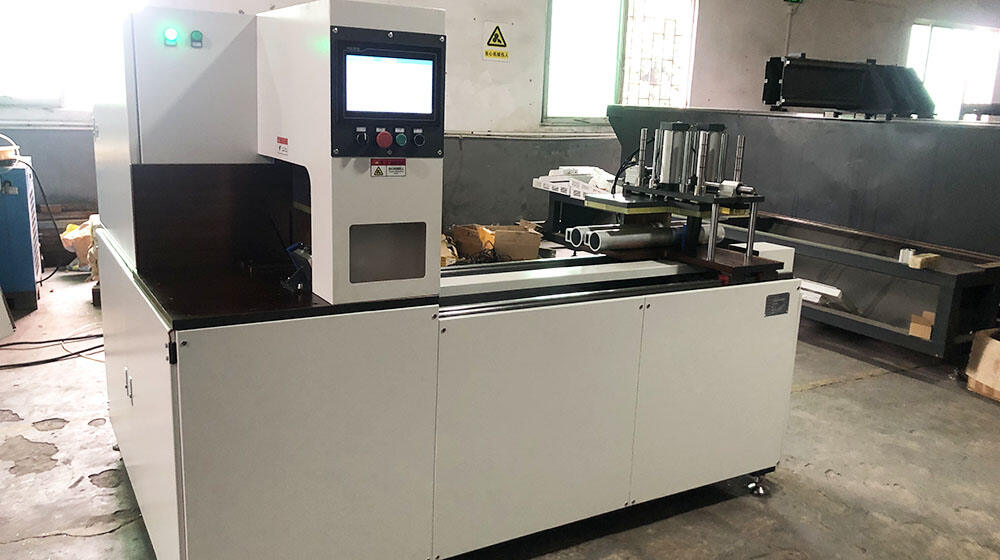

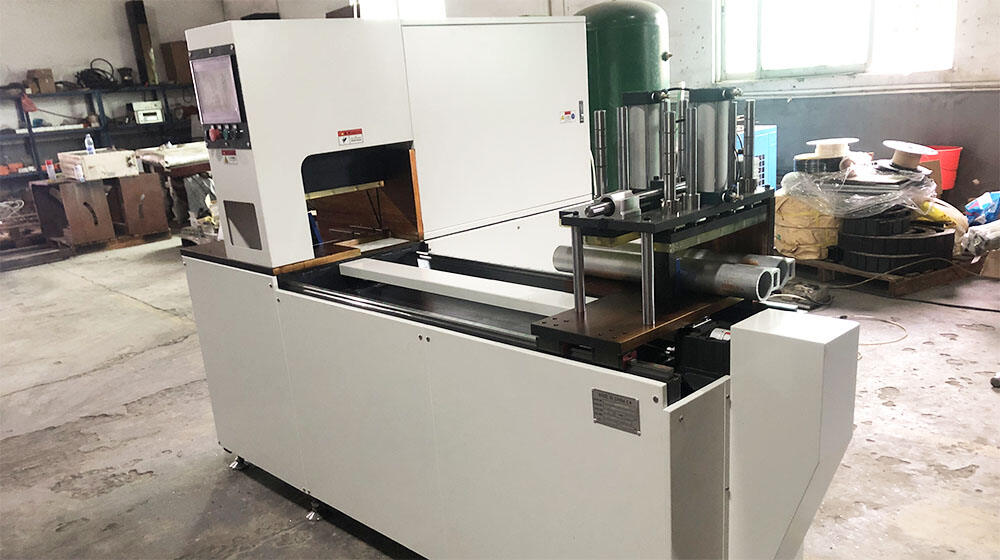

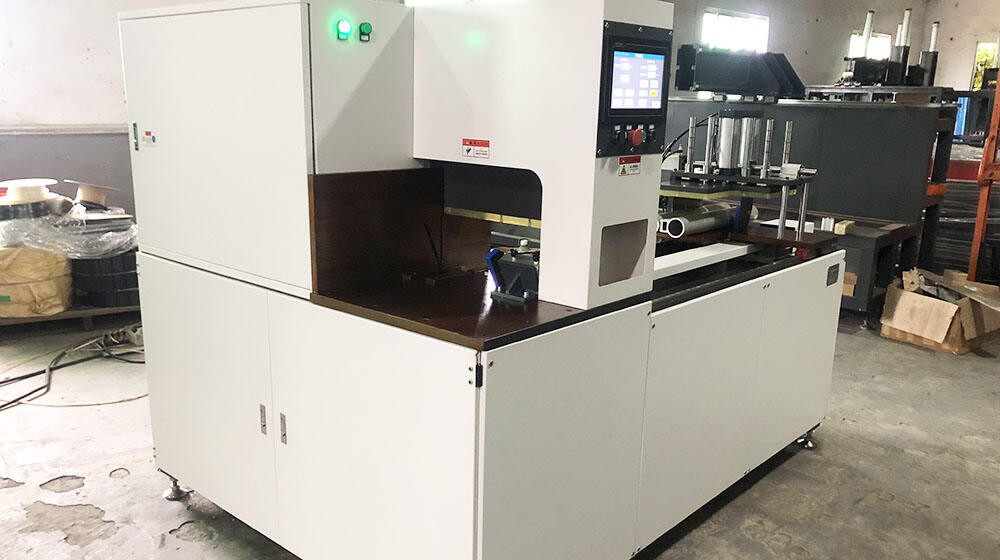

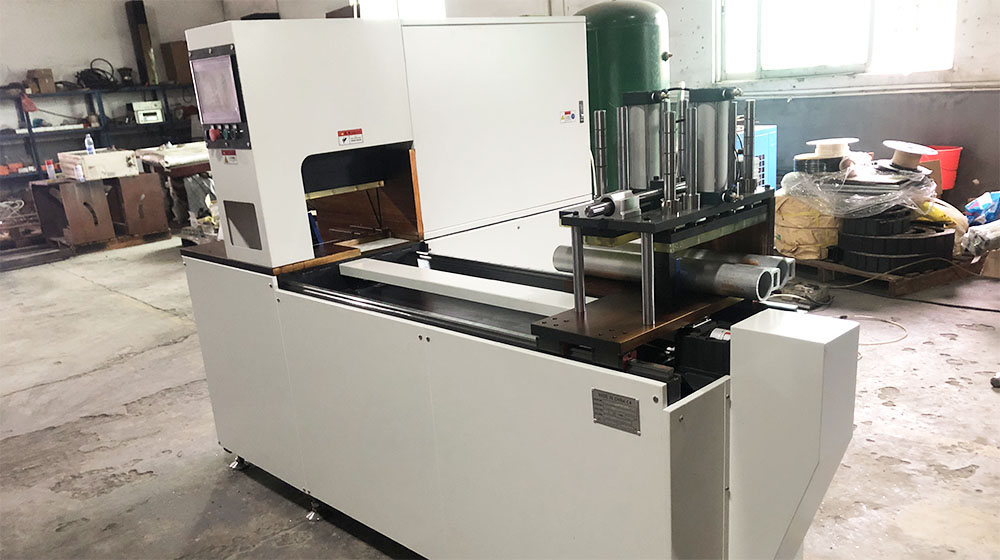

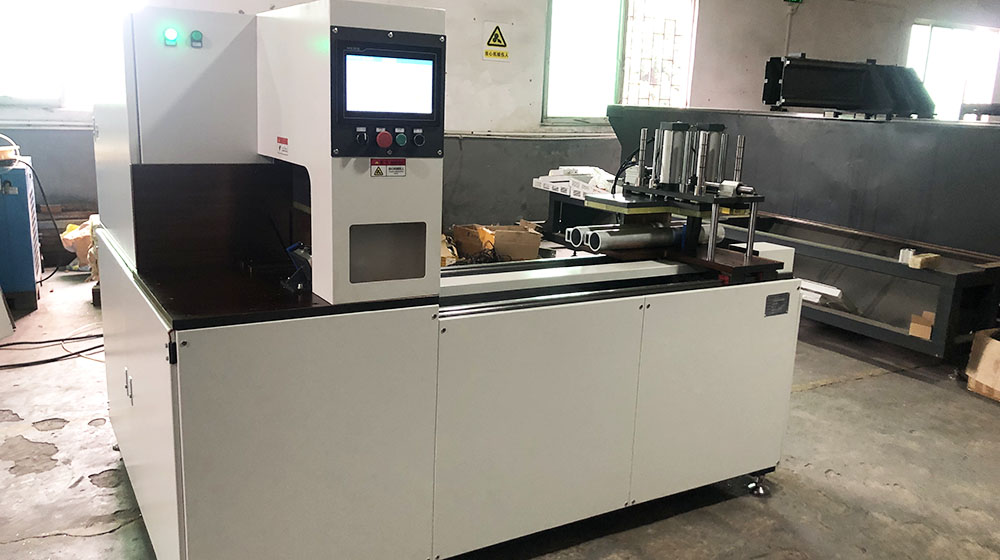

LJZS-500 Auto Feed Aluminum Cutting Profile Saw

LJZS-500 is an auto feed saw for cutting aluminum profile,such as the corner cleat extrusion,pipe or other industrial aluminum profile.
- Hydro-pneumatic saw feed.
- Servo controlled profile feed.
- 90 deg cutting.
- Cutting width is in large size and also customized.
- Touch screen LCD monitor.
- Variable cutting length can be set.

Applications:

LJZS-500 is a professional auto feed saw dedicated to the aluminum profile processing industry, specially designed for cutting aluminum profiles such as corner cleat extrusions, pipes and other industrial aluminum profiles. It is widely applied in industrial aluminum profile processing factories, aluminum corner cleat production workshops, and industrial aluminum product manufacturing enterprises. Featuring 90° cutting, large and customizable cutting width, it meets the high-efficiency, precise cutting needs of batch production of various industrial aluminum profiles. Its user-friendly operation and flexible cutting settings make it an essential equipment for aluminum profile precision cutting.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	LJZS-500

Specifications:

Model	LJZS-500
Air pressure	0.6-0.8Mpa
Power supply	380V 50Hz
Main motor power	4kw
Servo motor power	1kw
Rotation speed	2850-3000rpm
Cutting angle	90°
Blade size	Ø500304.4mm 96T
Maximum cutting height*width	100*180mm
Blade feed rate	0-30m/min
Single feed stroke	1100mm
Feed accuracy	±0.1mm
Rated feed rate	200mm/s
Machine dimension	245016001600mm
Weight	800kg
Loading conveyor length	2500mm

Competitive Advantage:

1. Stable & Efficient Feeding System: Adopts hydro-pneumatic saw feed and servo controlled profile feed, ensuring stable feeding, smooth cutting and high processing efficiency, reducing manual intervention and errors.

2. Flexible Cutting Width: Cutting width is large in size and can be customized, which can flexibly adapt to different specifications of industrial aluminum profiles, pipes and corner cleat extrusions.

3. User-Friendly Operation: Equipped with a touch screen LCD monitor, which is intuitive and easy to operate; variable cutting length can be freely set, facilitating quick switching between different processing requirements.

4. Specialized Aluminum Profile Cutting: Exclusively designed for cutting aluminum profiles, including corner cleat extrusions, pipes and other industrial aluminum profiles, perfectly matching the professional processing needs of the industry.

5. Reliable 90° Cutting: Specialized in 90° cutting, ensuring precise angle control and flat, smooth cutting surfaces, meeting the standardized processing requirements of industrial aluminum products.
