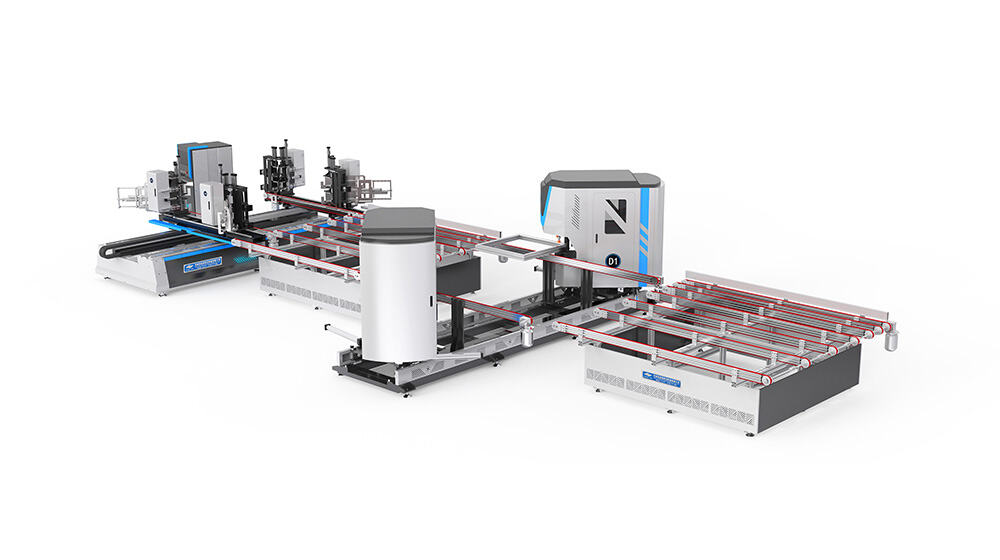

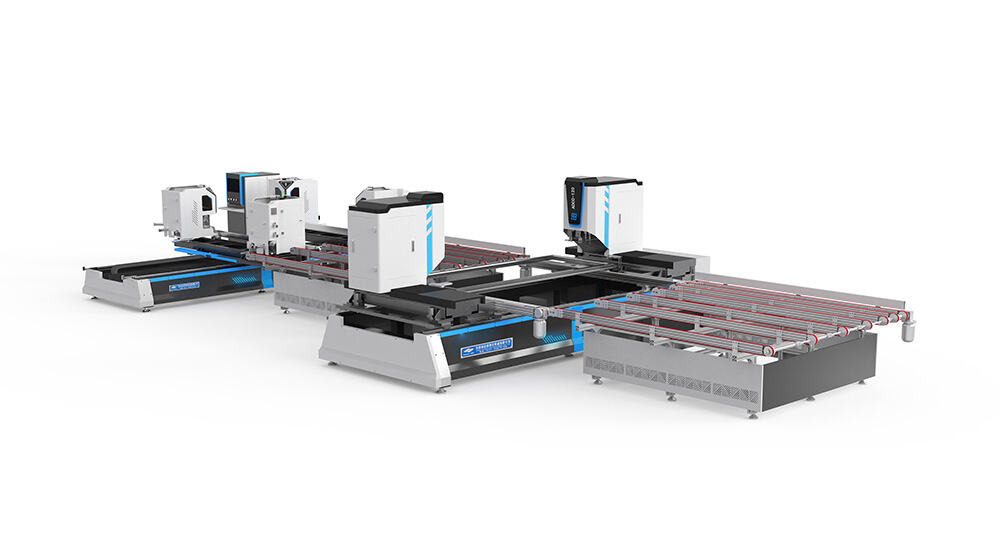

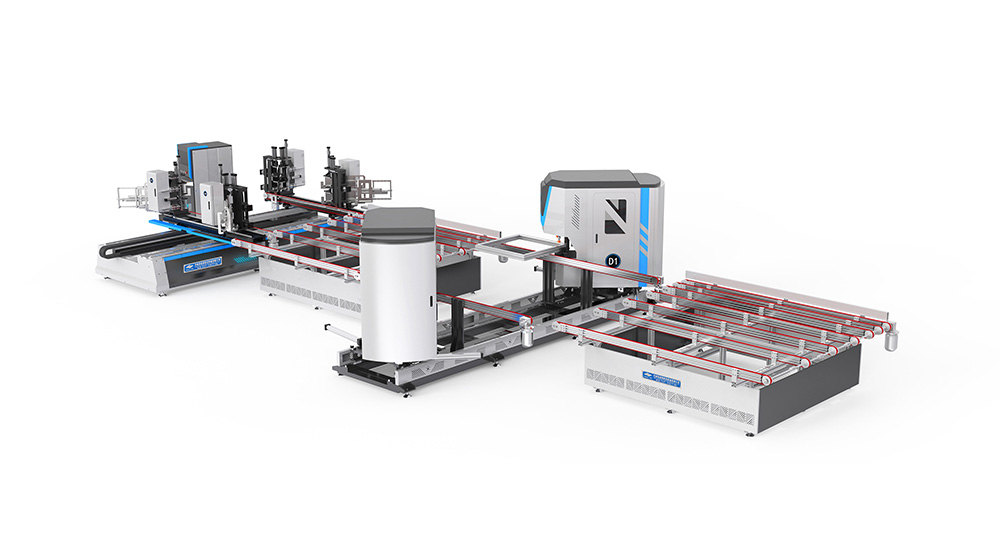

HQ-D Horizontal Welding and Corner Cleaning Line
-
HQ-D is designed to automate the welding and corner cleaning of pvc doors and windows. The design of the assembly line integrates the three processes of welding, feeding and corner cleaning.
- Four double-layer welding units can weld two rectangular window frames at the same time, with two corner cleaning units, high production efficiency, and only two people are required to operate, saving labor costs and labor intensity.
- The upper and lower clamps adopt patented technology, which has high flatness and high long-term application stability. The tools for corner cleaning are made of alloy material and are precision machined after quenching, which is standardized and supports interchangeability.
- The positioning system adopts high-precision linear square guide rails, and the feeding system is equipped with large inertia servo motors, which ensures high stability and positioning accuracy.
- Equipped with color touch screen and Siemens PLC, friendly man-machine interface and simple programming.
- The machine body is welded by thick-walled rectangular steel pipe, which has strong weighing capacity and is not easy to deform.
Applications:
HQ-D is an automatic assembly line specially designed for the welding and corner cleaning of PVC doors and windows, integrating welding, feeding and corner cleaning into one. It is widely applied in professional PVC door and window manufacturing factories and large-scale PVC profile processing enterprises. Suitable for batch production of PVC window frames, it can simultaneously weld two rectangular window frames, meeting the high-efficiency production needs of PVC doors and windows. It is ideal for enterprises pursuing labor saving and production efficiency improvement, effectively reducing manual operation intensity and ensuring the consistency of welding and corner cleaning quality.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
HQ-D |
Optional：
Variable welding modes: seam, single-sided seamless, double-sided seamless.
Clamp preheat to increase the strength of the welding corner.
Specifications:
|
Model |
HQ-D |
|
Power supply |
380V/50Hz |
|
Total power |
25Kw |
|
Air pressure |
0.6-0.8Mpa |
|
Weld size |
380*430mm-1800*3000mm |
|
Welding height |
20-120mm |
|
Welding width |
0-120mm |
|
Overall dimension |
14000*5350*1850mm |
Competitive Advantage:
1. High-Efficiency Integrated Production: Integrates welding, feeding and corner cleaning three processes, with four double-layer welding units (simultaneously welding two window frames) and two corner cleaning units, high production efficiency, only two operators needed, greatly saving labor costs and reducing labor intensity.
2. Stable & Interchangeable Components: Upper and lower clamps adopt patented technology, with high flatness and long-term application stability; corner cleaning tools are made of alloy material, precision machined after quenching, standardized and interchangeable, reducing maintenance and replacement costs.
3. High Precision & Stability: Positioning system adopts high-precision linear square guide rails, feeding system is equipped with large inertia servo motors, ensuring high positioning accuracy and stable operation during long-term batch production.
4. User-Friendly Operation: Equipped with color touch screen and Siemens PLC, man-machine interface is friendly, programming is simple, lowering operation threshold and reducing training costs for workers.
5. Durable & Deformation-Resistant: Machine body is welded by thick-walled rectangular steel pipe, with strong bearing capacity, not easy to deform, ensuring long-term stable operation and extending equipment service life.
