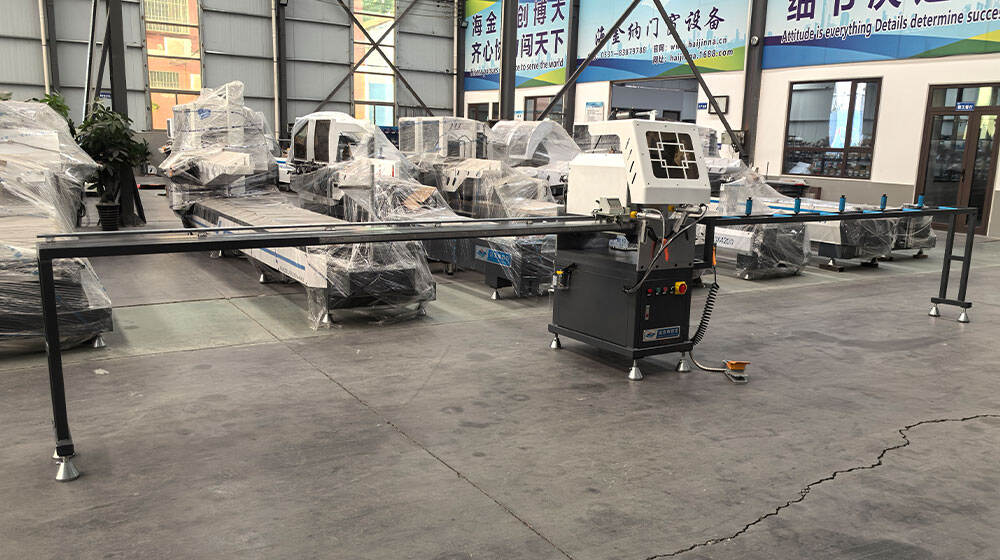

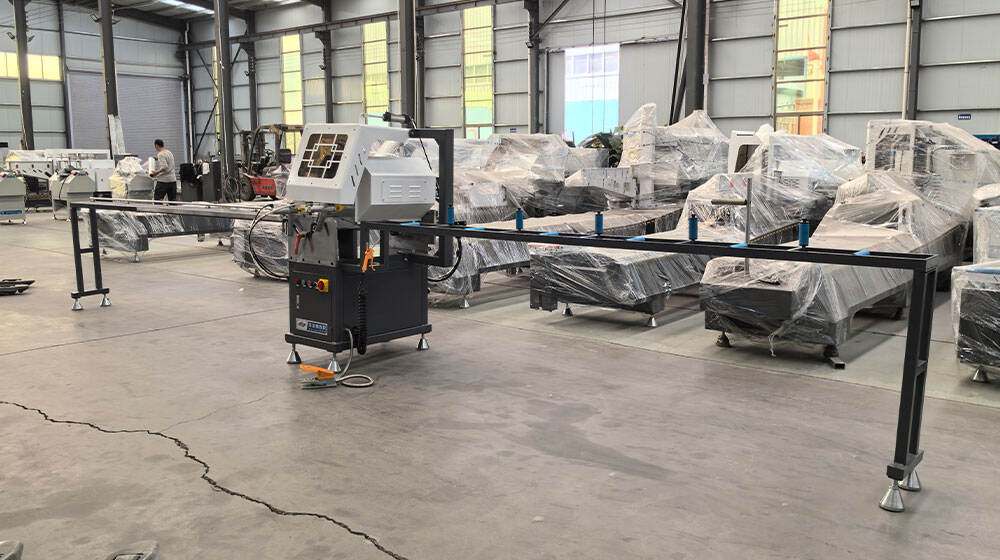

LSJ-450 Single Head Miter Saw

• LSJ-450 is a single head saw for 90 degree and 45 degree cutting, used for the production of aluminum and PVC windows and doors.

• Applicable material:aluminum,pvc and light thermal break profile.

• Hydro-pneumatic saw feed.

• Saw heads can be pneumatically tilted at outward 45,inward 45 and 90 degrees.

• Equipped with digital display for reading the cutting length.

Applications:

LSJ-450 is a single head saw for 90° and 45° cutting, specially used for the production of aluminum and PVC windows and doors. Applicable to aluminum, PVC and light thermal break profiles, it is widely applied in professional door and window manufacturing factories, small-to-medium-sized profile processing workshops and door and window supporting processing stations. It meets the high-precision cutting needs of door and window frames, sashes and light thermal break profile components, adapting to batch production and standard door and window processing scenarios, and is an essential equipment for efficient door and window profile cutting.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	LSJ-450

Specifications:

Model	LSJ-450	Cutting angle:	-45°/90°/45°
Power supply	380V 50Hz	Cutting width	Max 120mm
Motor power	1.5kw	Angle tolerance	±5′
Air pressure	0.6-0 .8Mpa	Flatness	≤0.10mm
Air consumption	200L /min	Surface roughness	Ra12.5um
Rotation speed	2800rpm	Overall dimension	95013201400mm
Blade size	Ø450mm	Weight	350Kg

Competitive Advantage:

1. Flexible Angle Adjustment: Saw heads can be pneumatically tilted at outward 45°, inward 45° and 90°, perfectly matching the standard cutting requirements of aluminum/PVC door and window frames and sashes, realizing quick angle switching.

2. Stable Hydro-Pneumatic Feed: Adopts hydro-pneumatic saw feed, ensuring smooth and uniform feeding, low noise and flat cutting sections, reducing profile waste and adapting to long-term continuous processing.

3. Precise Length Control: Equipped with digital display for cutting length, enabling intuitive and accurate reading, avoiding manual measurement errors and ensuring consistent cutting size, improving product qualification rate.

4. Targeted Material Compatibility: Applicable to aluminum, PVC and light thermal break profiles, focusing on door and window mainstream materials, with strong adaptability to light thermal break profiles, meeting industry lightweight processing needs.

5. Easy & Efficient Operation: Pneumatic angle tilting and simple digital operation, lowering the operation threshold for workers, facilitating quick debugging and improving processing efficiency in batch door and window production.
