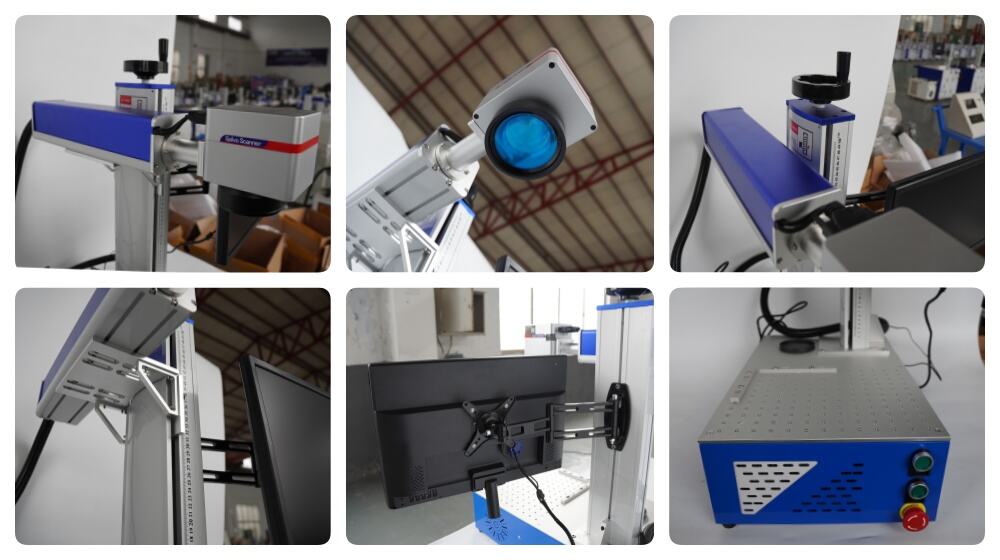

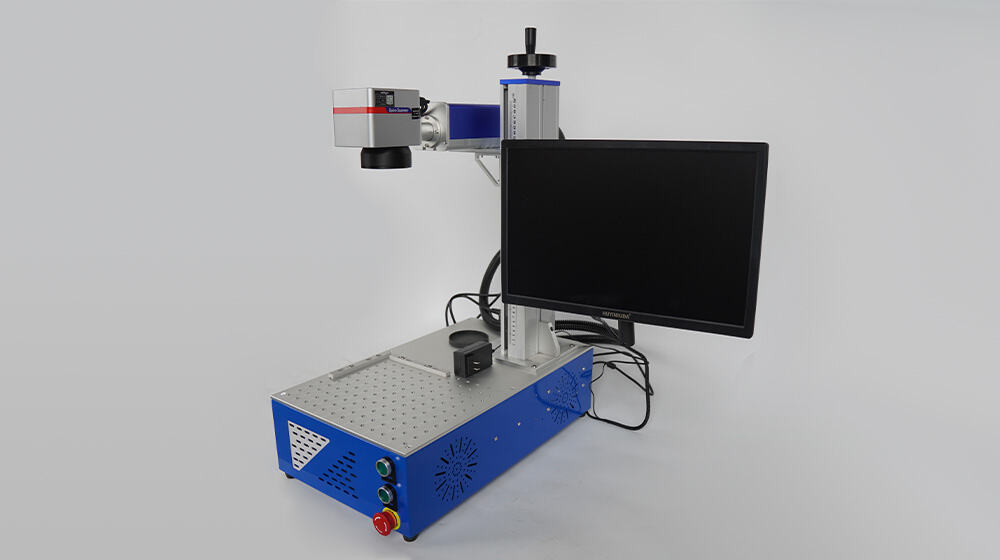

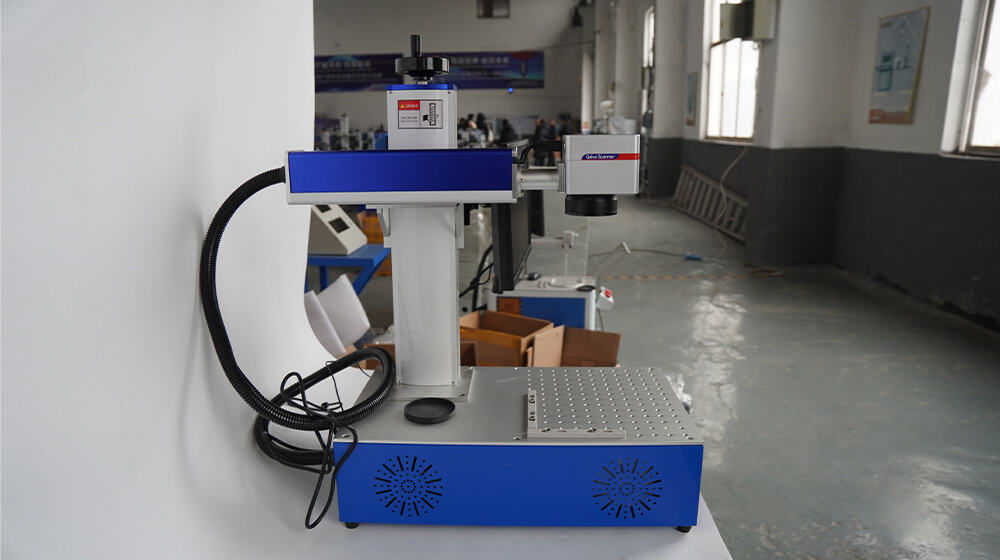

30W Laser marking machine introduction

• Small size, long life of semiconductor module (> 500,000 hours), low power consumption (160Q), high beam quality, USB interface, support win7/8/10 and other operating systems;Immune to adverse environment and temperature changes; In case of power failure can be used to operate the battery or car cigarette lighter.

• Before the appearance of fiber laser, the laser source of laser marking system generally used continuous or pulsed CO2 laser and Nd-YAG laser as the light source. Compared with the traditional laser light source, fiber laser has better performance and the divergence Angle is 1/4 of the semiconductor pumped laser (more suitable for precision and fine marking machine industry). The electro-optical conversion efficiency is 1/10 of that of the solid-state laser marking machine pumped by the flash lamp. Its average working time can reach 100,000 hours;

• The fiber laser is completely air-cooled, does not need the refrigerator, cooling water pipe and temperature controller and other supporting equipment. Volume smaller, energy consumption less, the user's cost is much lower than the use of traditional laser light marking system.

Applications：

Applicable for most metal:Stainless Steel products, hardware industry, watch industry, die and moulds etc. metal material, metallic material, metal tags, stannum, iron, copper, aluminum, chrome, Brass, Metal Alloy.

stainless steel, carbon steel, alumina, aluminum alloy, aluminum, copper, iron, gold and silver, etc.

Also Applicable for some Non-metallic materials:CE、PVC、PE、ABS、HDPE、PTFEPVC industry, PCB circuit wafer, ABS shell case, chip industry, plastic tags, ceramics products, plastic, rubber, epoxy resin, CE, PVC, PE, ABS, HDPE, PTFE

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	30W

Specifications:

Laser parameter	Output power	30W
	Beam quality	≤1.4
	Central wavelength	1064nm
	Spot diameter	5-7mm
	Power regulation range	1%~100%
Galvanometer field parameters	Marking speed	7000mm/s
	Resolution	±0.001mm
	Repeated positioning accuracy	±0.003mm
	Focal spot diameter	<0.01mm
Optical output characteristic	Single marking range	250*250mm(can be customized upon request)
	Minimum line width	0.012mm
	Engraving depth	0.01-0.1mm(dependinon the material of the workpiece)
	Carving width	0.05mm-0.2mm
	Minimum character height	0.1mm
System attribute	Computer operating system	Windows system
	Tag content	All fonts and fonts in the WINDOWS operating system font library (including national languages, barcodes, QR codes, etc.); BMP/PCX with 256 gray image files and DXF/PLT format vector graphics files
	Red light indication	include
	Cooling mode	Built-in air cooling
Equipment service conditions	Environmental requirement	0~40°C, humidity ≤90%, less dust, oil fog
	Overall power	500W
	Electricity demand	220V/Single-phase / 50Hz / 4A
	Power supply	Single-phaseAC 90-260V/50HZ-60HZ

Competitive Advantage:

• Long Service Life & Low Energy Consumption: The semiconductor module has a lifespan of over 500,000 hours with low power consumption (160Q), reducing long-term operational costs significantly.

• Superior Beam Quality & Precision: Fiber laser offers a divergence angle only 1/4 that of traditional pumped lasers, ensuring ultra-fine, high-precision marks perfect for detailed and fine marking applications.

• Air-Cooled & Compact Design: Fully air-cooled without the need for chillers or water cooling systems, it is smaller in size, lower in energy consumption, and more cost-effective for users.

• Wide Material Compatibility: Supports marking on most metals (stainless steel, aluminum, copper, etc.) and selected non-metals (PVC, ABS, ceramics, etc.), adapting to diverse industrial marking needs.

• Reliable & Environmentally Resistant: Immune to harsh environments and temperature fluctuations; USB interface and multi-system support (Win7/8/10) ensure flexible operation, with battery/car cigarette lighter backup for power failure scenarios.
