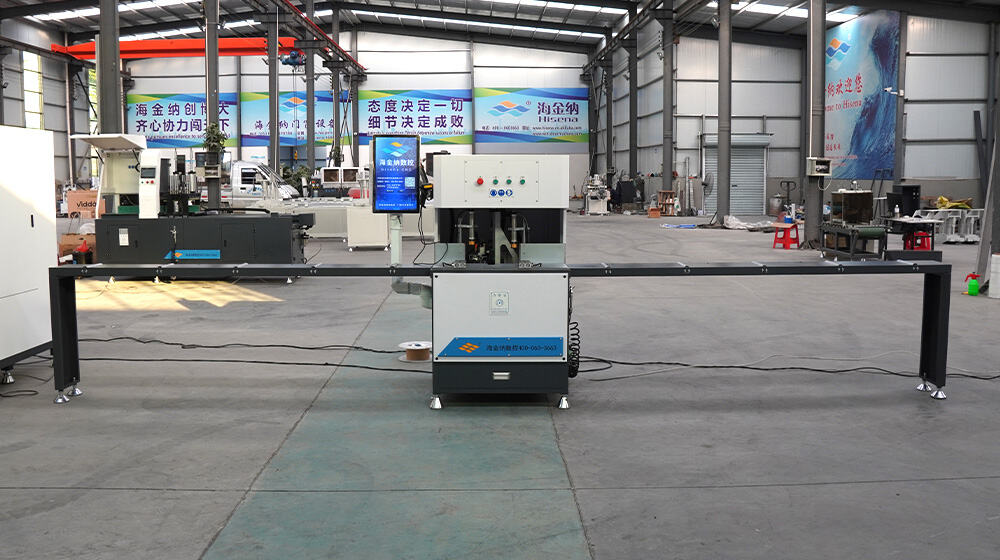

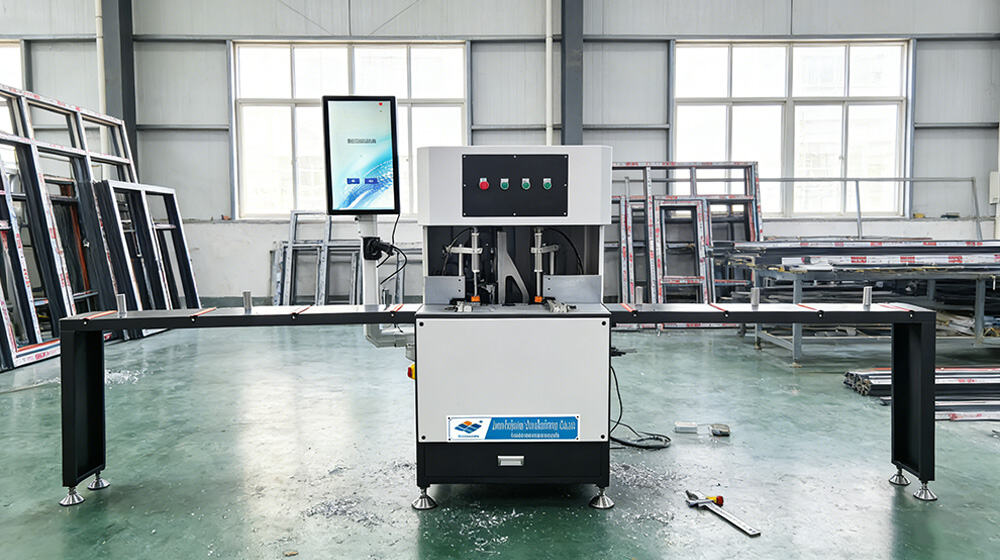

HJN-CNC-120 Smart Connection Process Holes Drilling Milling Machine
Replacing punching with milling to address pain points in door and window processing, this solution is suitable for flexible machining of aluminum door and window pin holes, glue injection holes, etc., and can replace punching machines.The equipment features a 45° opening and sharp-angle avoidance design to protect profile corners and prevent scratching.The effective processing width is 120 mm and height 200 mm.The whole machine adopts precision casting combined with CNC machining, ensuring stable performance and low failure rate.
• Effective processing width: 120 mm, height: 200 mm. Adopts precision casting combined with CNC machining, featuring stable performance and low failure rate.
• Replaces punching with milling to solve pain points in door and window processing. Used for flexible machining of pin holes, glue injection holes, etc. in aluminum doors and windows. Instead of a punching machine, it uses 45° openings and sharp corner avoidance to protect profile sharp corners and prevent scratching.
• System operability: Software can be upgraded at any time with the development of aluminum profiles, making operation simpler.

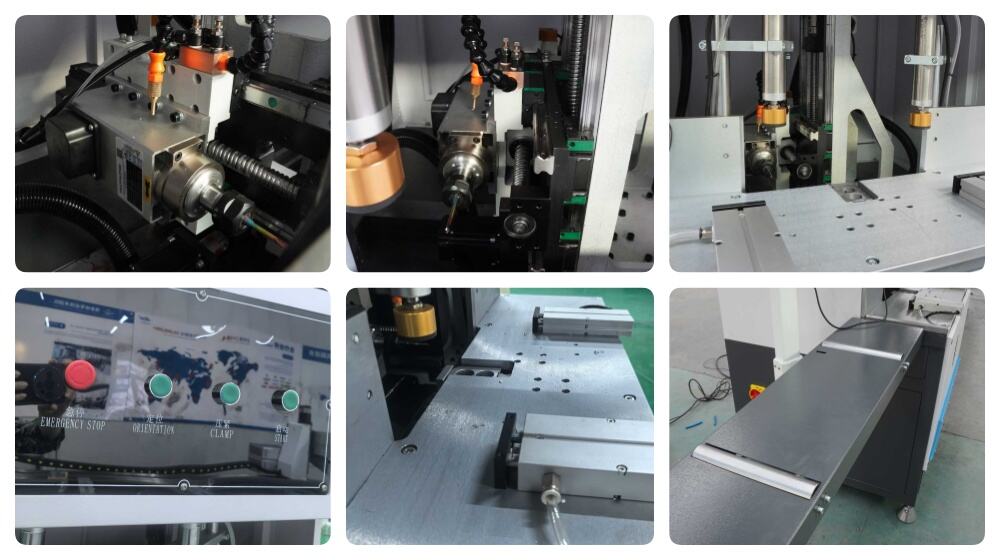

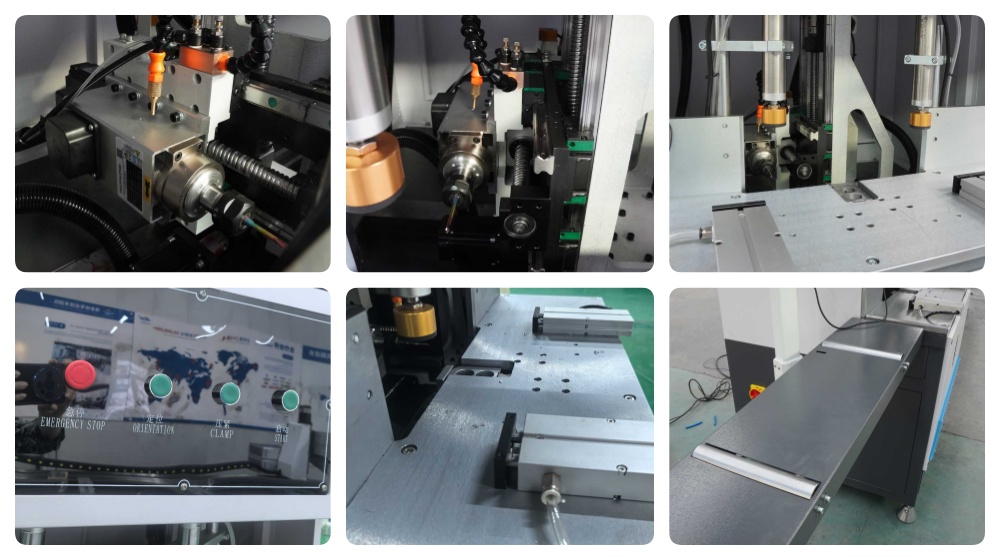

• Mechanical structure: Adopts precision casting combined with CNC machining, stable performance and low failure rate.
• Equipped with national standard high-speed spindle motors and control electrical appliances from leading domestic and international brands, further improving equipment stability.
Applications:
This machine is specially used for flexible processing of pin holes, injection holes and other precise holes on aluminum doors and windows. It replaces traditional punching with 45° openings and corner protection design, effectively protecting sharp corners of profiles and avoiding scratches or damages during processing. It is widely applied in aluminum door and window manufacturing, profile processing, curtain wall engineering and high-end window & door production workshops, providing safe and high-precision hole making and corner protection for various aluminum profiles.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
HJN-CNC-120 |
Specifications:
|
Power |
3.4KW |
|
Applicable Material |
Aluminum |
|
Place of Origin |
Shandong,China |
|
Core Components |
motor, PLC, Bearing |
|
Weight |
345kg |
|
Warranty |
1 Year |
|
Key Selling Points |
High Productivity |
|
Voltage |
380V |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Brand Name |
Hisena |
|
Dimension(L*W*H) |
870*900*1600mm |
|
Power supply |
380V/50Hz or customized |
|
Total power |
3.4kw |
|
Working air pressure |
0.5-0.7MPa |
|
Air consumption |
200L/min |
|
Main milling bit speed |
18000r/min |
|
Processing profile depth |
120mm |
|
Processing profile width |
120mm |
|
X axis working range |
260mm |
|
Z axis working range |
120mm |
|
Y axis working range |
200mm |
Competitive Advantage:
• Flexible Precision Processing：Realizes high-precision machining of pin holes, injection holes and other holes on aluminum doors and windows, with stable size and high consistency.
• 45° Opening & Corner Protection：Adopts 45° openings and professional corner protection structure to protect sharp corners of profiles, avoiding scratches and damages, greatly improving product appearance quality.
• Punching Free Design：Replaces traditional punching with safer processing method, reducing profile deformation and burrs, improving finished product rate.
• Wide Applicability：Suitable for various aluminum door and window profiles, meeting diversified hole making and corner protection requirements in mass production.
• Easy Operation & High Efficiency：Simple operation, stable performance, reduces manual damage and improves overall production efficiency and product quality.
