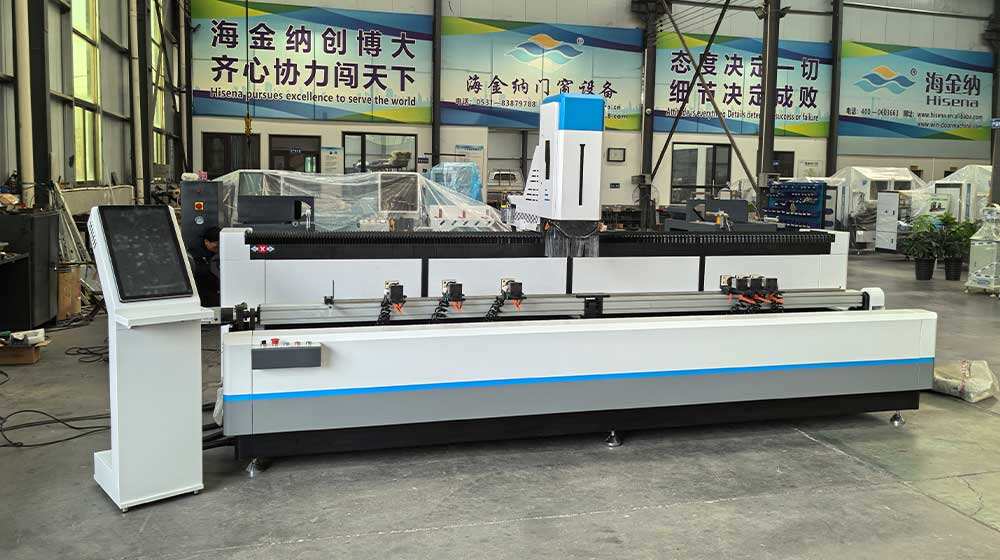

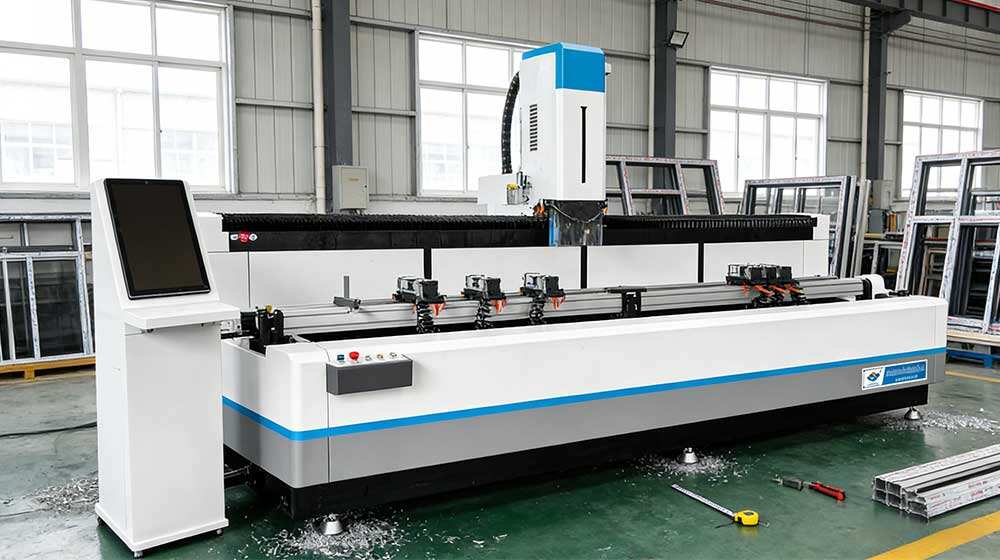

HJN-CNC-3000 3-meter CNC Drilling And Milling Machine
• The equipment is mainly designed to meet the drilling and milling processing needs of various aluminum profiles in the furniture industry, enabling multiple processing operations with a single clamping. It is suitable for the milling of various holes and slots on aluminum profiles, such as lock holes, drainage holes, and hinge holes for aluminum doors and windows.
• High-precision linear guide pairs and ball screws ensure smooth movement, as well as high positioning and processing accuracy.
• An imported high-speed motor spindle is adopted, featuring stable rotation, low noise, and strong cutting capacity.

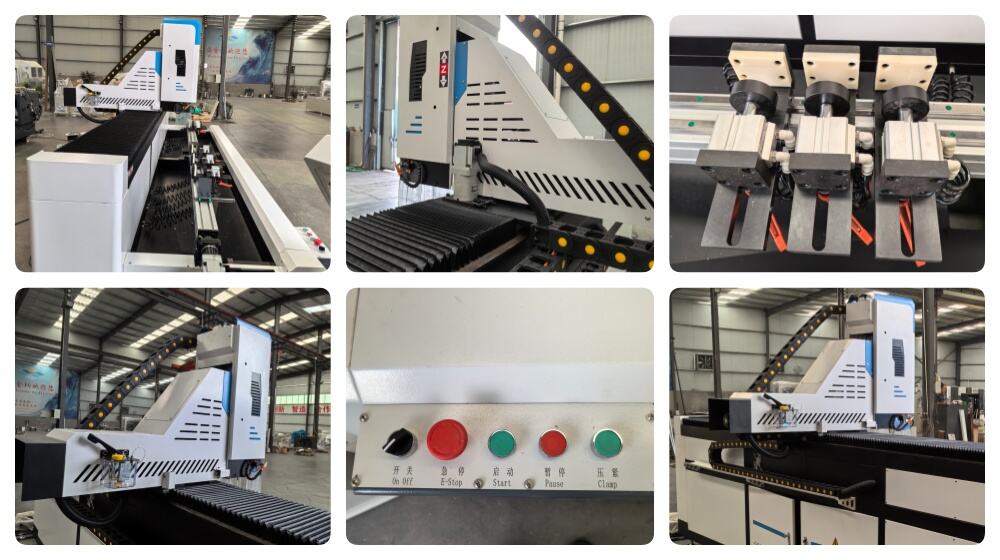

• The rotatable worktable can be freely switched among three positions: +90°, 0°, and -90°, allowing three-sided milling to be completed with a single clamping.
• The machining G-code is automatically generated and converted through programming software, featuring simple operation, high efficiency, and low labor intensity.
• Each motion mechanism adopts a scheme of servo motors, precision lead screws, and linear guides, which fully guarantees the accuracy and stability of the machine tool. Each motion mechanism is equipped with an automatic lubrication system, and the spindle is fitted with a spray cooling device.
Applications:
This equipment is mainly designed to meet the drilling and milling needs of various aluminum profiles in the furniture industry, and can also process lock holes, drainage holes, hinge holes and other holes/slots for aluminum doors and windows. It realizes multiple processing operations with a single clamping, widely applied in aluminum furniture manufacturing factories, furniture accessory processing workshops, and door and window processing enterprises. Suitable for aluminum profiles used in furniture and doors/windows, it meets the high-precision processing needs of batch production and customized processing, and is ideal for efficient, multi-process processing of aluminum components in the furniture and building materials industries.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
HJN-CNC-3000 |
Specifications:
|
Overall dimensions |
4400x1500x2100 (subject to actual conditions) |
|
Horizontal travel (X-axis) |
3000mm |
|
Longitudinal travel (Y-axis) |
400mm |
|
Vertical travel (Z-axis) |
280mm |
|
Machining accuracy |
0.1mm |
|
Drill spindle |
Power: 3.5kw / Maximum speed: 18000rpm / Collet: ER20 |
|
Milling cutter spindle |
Spindle power: 3.5kw / Maximum speed: 18000rpm / Tool collet: ER20 |
|
Servo motor power |
2.25KW |
|
Control mode |
CNC system (connected to Qinglan, not connected to Yisite) with machining program templates |
|
Total equipment power |
10KW |
|
Working air pressure |
0.6-0.8MPa |
|
Cooling method |
Spray system |
|
Chip removal method |
Detachable waste cart |
|
Machine tool protection |
Semi-closed sheet metal |
Competitive Advantage:
1. High-Efficiency Single-Clamping Processing: Enables multiple drilling and milling operations with one clamping, and the rotatable worktable switches freely among +90°, 0°, -90°, completing three-sided milling in one clamping, greatly improving processing efficiency.
2. Superior Precision & Stability: Adopts high-precision linear guide pairs, ball screws and servo motors for each motion mechanism, fully guaranteeing positioning and processing accuracy, with smooth movement and stable operation.
3. High-Performance Spindle: Equipped with imported high-speed motor spindle, featuring stable rotation, low noise and strong cutting capacity, adapting to high-intensity, high-precision drilling and milling of aluminum profiles.
4. Simple & Labor-Saving Operation: Programming software automatically generates and converts machining G-code, simplifying operation, improving efficiency and reducing labor intensity for workers.
5. Durable & Low Maintenance: Each motion mechanism has an automatic lubrication system, and the spindle is equipped with spray cooling, extending equipment service life and reducing daily maintenance workload.
