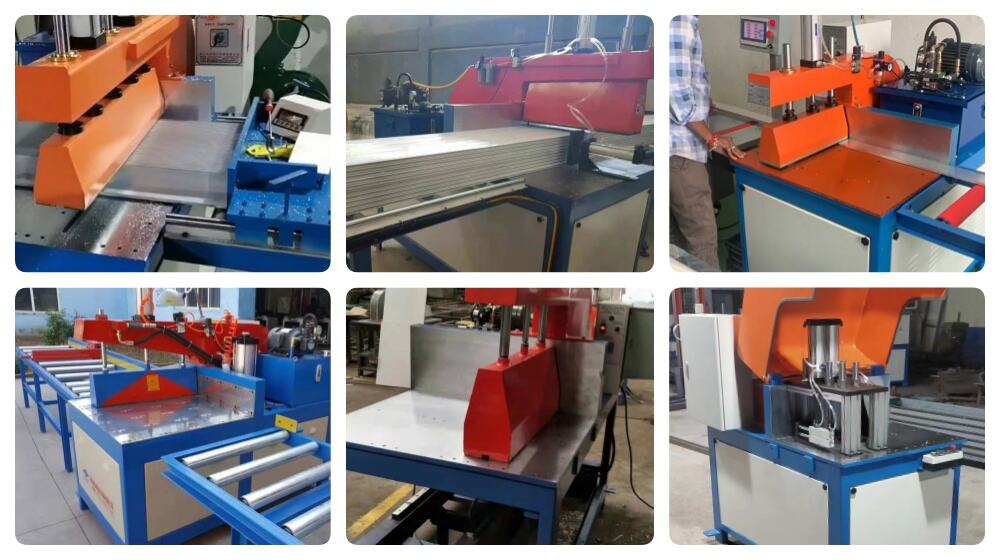

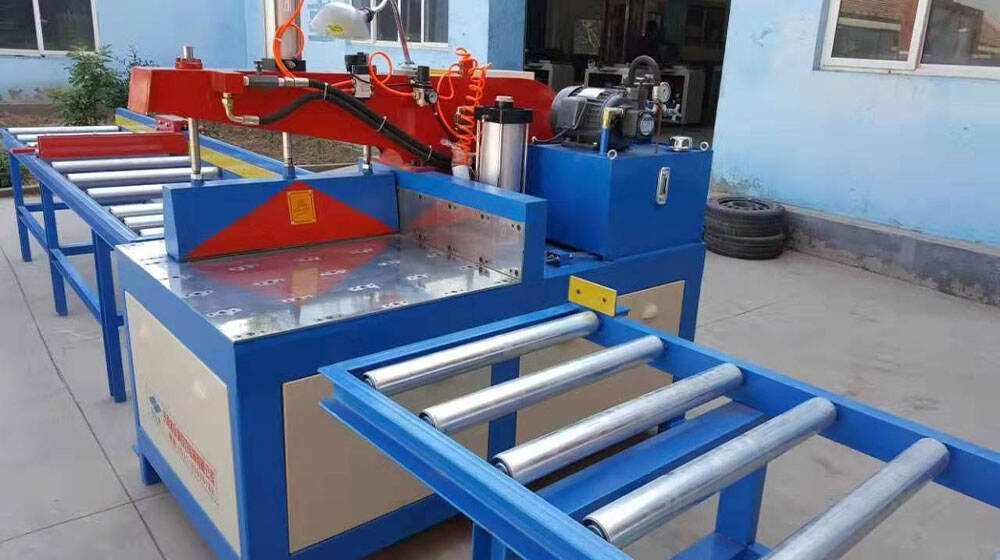

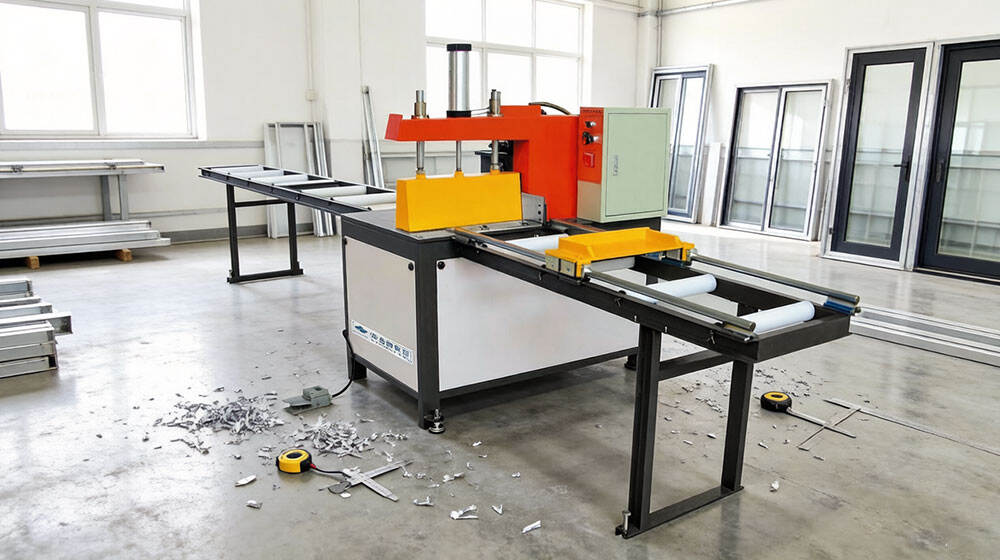

AFWS-700 Single Head Section Cutting Saw Machine

Hydraulic drive makes the feed more stable,feedingspeed can be adjusted by the throttle valve above the hydraulic station, and high-precision sawing ensures that the sawing surface is smooth and free of burrs.
It is suitable for long material cutting, convenient and fast, and the tail material can be controlled within 5-10MM.
Equipped with a micro-lubrication device and aluminum alloy special cutting oil, the service life of the saw blade can be increased by more than 30%, and the leakage of electricity can be avoided.
Optional digital display or CNC automatic for fixing the cutting length, the cutting size accuracy can be controlled within 0.1-0.2mm.
Optional low-decibel vacuum cleaner (within 80 decibels), which is convenient for workshop 7S management.

Applications:

This machine is a high-precision sawing equipment widely applied in the aluminum profile processing, industrial profile manufacturing and hardware processing industries. It is mainly used in professional profile processing factories, long material cutting workshops and large-scale production lines that require high-precision cutting. Suitable for long material cutting, it can control the tail material within 5-10MM, meeting the efficient, high-precision sawing needs of batch production. With optional dust removal and precision control functions, it is suitable for workshops with strict 7S management requirements, providing stable and high-quality sawing for various profiles.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	AFWS-700

Specifications:

Model	AFWS-700
Power supply	380V 50Hz
Main motor power	7.5kw
Hydraulic pump power	1.5kw
Water pump power	0.4kw
Feed rate	0-150mm/s
Retreat rate	150mm/s
Main spindle speed	2200rpm.
Max.cutting height	250mm
Max cutting width	700mm
Saw blade dimension	Φ700×Φ38mm Z=120
Feed Principle	Hydraulic driven/Horizontal feed
Cutting angle	90deg
Measurement	Digital display or CNC measuring stop
Weight	1200kg
Machine dimension	190012001750mm
Weight	About 1000Kg
Conveyor length	Left 3000mm and right 3000mm

Competitive Advantage:

1. Stable Hydraulic Drive: Adopts hydraulic drive for more stable feeding; feeding speed can be adjusted via the throttle valve on the hydraulic station, ensuring smooth and burr-free sawing surfaces with high precision.

2. Efficient Long Material Cutting: Specially suitable for long material cutting, convenient and fast, with tail material controlled within 5-10MM, reducing material waste and improving processing efficiency.

3. Extended Saw Blade Service Life: Equipped with a micro-lubrication device and special aluminum alloy cutting oil, increasing saw blade service life by more than 30% and avoiding electric leakage, ensuring safe operation.

4. High Cutting Precision: Optional digital display or CNC automatic length fixing, with cutting size accuracy controlled within 0.1-0.2mm, meeting high-precision processing requirements.

5. Workshop-Friendly Design: Optional low-decibel vacuum cleaner (≤80 decibels), facilitating workshop 7S management, creating a clean and quiet working environment.
