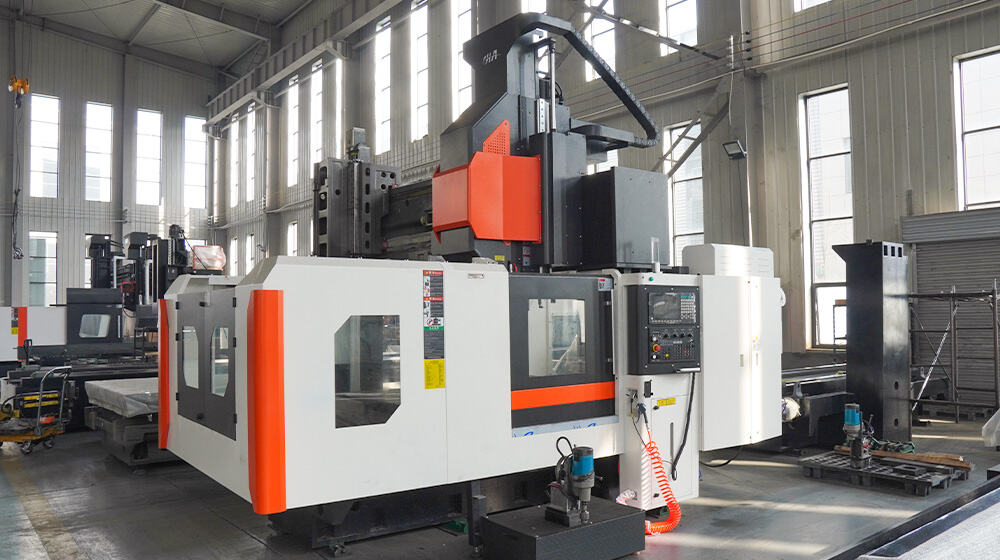

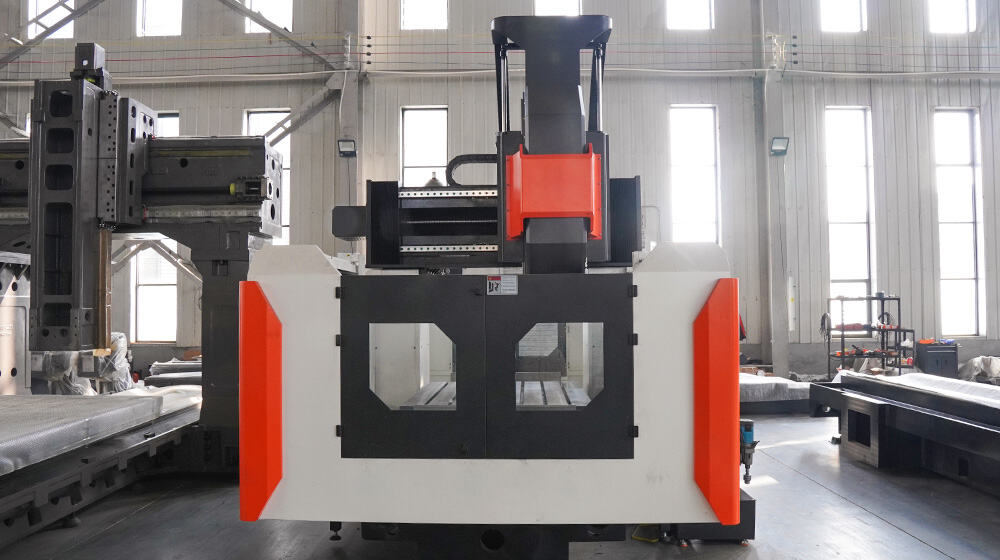

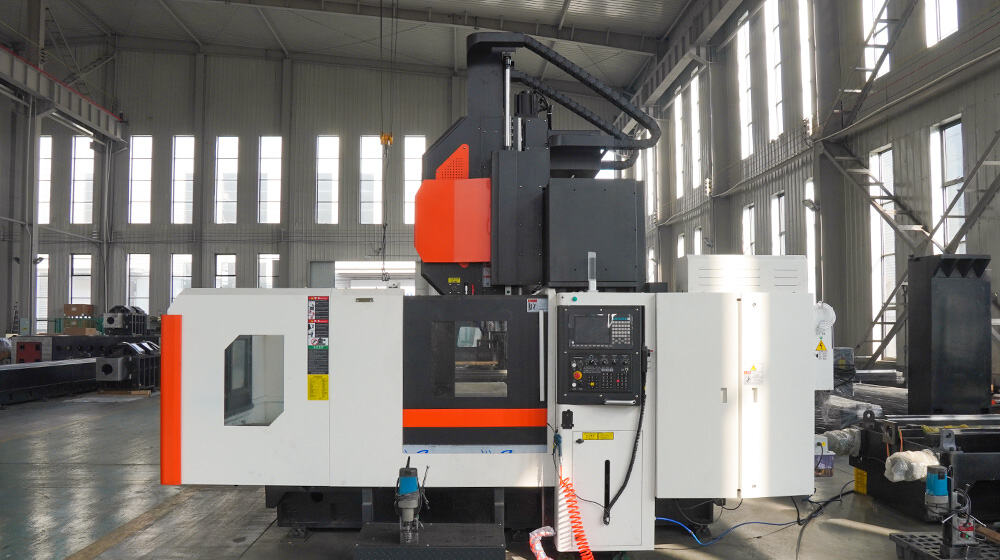

Small Gantry Series

Applications:

This series of machine tools is widely applied in the precision mechanical processing industry, including mold manufacturing, aerospace component processing, precision hardware production, and high-end equipment part machining. It is suitable for professional precision processing factories, large-scale manufacturing enterprises, and workshops that require high-speed, high-precision, and heavy-load cutting. Equipped with a high-speed spindle, it meets the needs of high-speed precision machining, ensuring stable and accurate processing of high-precision parts, making it an essential equipment for high-standard, high-efficiency precision machining.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	1090/1713

Specifications:

Category	Item	1090	1713
Travel	Effective Gantry Width (mm)	980	1320
	X-Axis Travel (mm)	1000	1700
	Y-Axis Travel (mm)	900	1300
	Z-Axis Travel (mm)	600	700
	Spindle Nose to Table Surface Distance (mm)	150-750	150-850
	Max. Clearance Under Gantry (mm)	750	850
Worktable	Worktable Size (mm)	1000×900	1500×1200
	Worktable T-Slot Size (mm)	18	18
	Max. Load Capacity (kg)	1000	2500
Spindle	Spindle (Model/Mounting Size)	BT40\BBT40-8000 BT40\BBT40-12000 BT50\BBT50-6000 BT50\BBT50-6000 HSK-A63-18000
	Spindle Motor Power (KW)	7.5/11	7.5/11
	Torque (N·m)	47/70	47/70
	Max. Spindle Speed (r/min)	8000	8000
Transmission	X, Y, Z Axis Ball Screw Specification	4010\3210\4010	4010\4010\4010
	X, Y, Z Axis Rapid Traverse Speed (m/min)	16/24/16	16/24/16
	X, Y, Z Axis Roller Linear Guide Specification	RGH45\RGH45\RGH452+352
	X, Y, Z Axis Coupling Specification	φ65\φ80	φ65\φ80
	X, Y, Z Axis Motor Connection	Direct Drive	Direct Drive
Accuracy	Positioning Accuracy (mm)	0.012	0.012
Accuracy	Repeat Positioning Accuracy (mm)	0.01	0.01
Optional	Tool Magazine	BT40\BT50-24T Disc Type	BT40\BT50-24T Disc Type
Optional	Z-Axis Guideway	Z-Axis 4-Linear Guide (Hard Guide)	Z-Axis 4-Linear Guide (Hard Guide)
Others	Total Power (Kw)	20	25
	Approx. Machine Weight (Ton)	6	9
	Overall Machine Dimension	3500×2400×3900	5000×2800×4200
	CNC System	FANUC (Syntec, Mitsubishi)	FANUC (Syntec, Mitsubishi)

Competitive Advantage:

1. High Rigidity & Stability: Designed through finite element analysis, with overall design based on high-speed, heavy-load and heavy-cutting requirements, ensuring excellent rigidity, stability and precision during long-term operation.

2. High-Speed Precision Machining: Equipped with a high-speed spindle, specially suitable for high-speed precision machining, improving processing efficiency while ensuring high processing accuracy.

3. High-Quality Core Components: Selects imported high-precision functional components, strictly following precision-grade machine tool manufacturing process requirements to ensure overall accuracy and stable performance.

4. Reliable & Durable: Adopts strict quality process control standards, effectively extending product service life, and ensuring long-term stable and reliable operation, reducing equipment downtime.

5. Versatile Heavy-Cutting Adaptability: The heavy-load and heavy-cutting design enables it to adapt to various high-intensity precision machining tasks, meeting the diverse high-standard processing needs of the precision manufacturing industry.

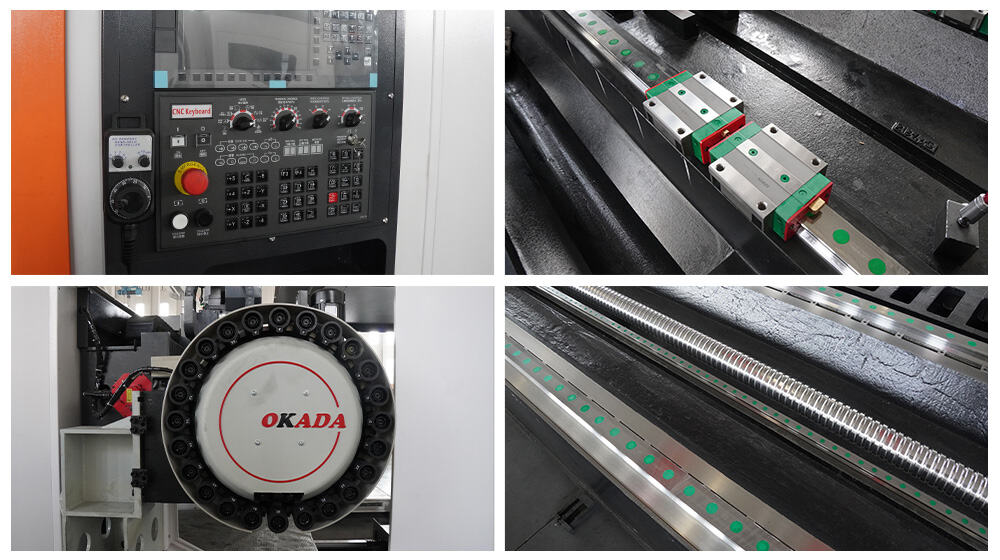

Main Feature:

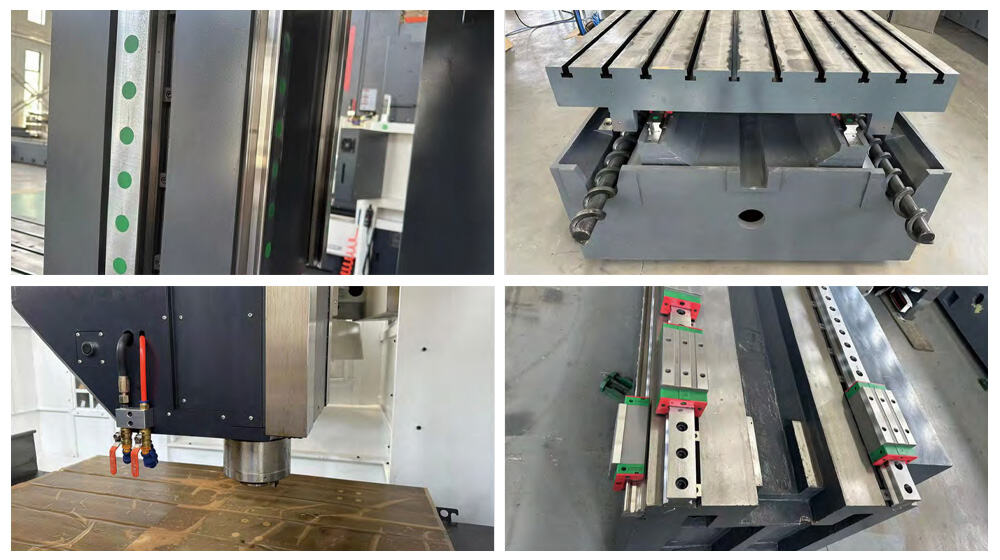

Select imported high-precision functional components and strictly follow the manufacturing process requirements for precision-grade machine tools to meet overall accuracy and performance.

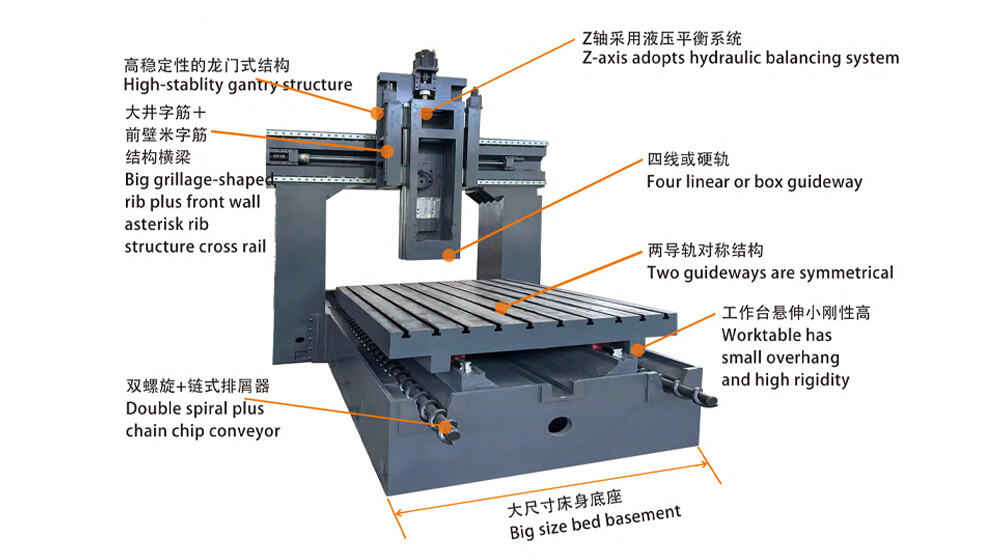

Overall design is based on the requirements of high speed, heavy load and heavy cutting, which meets high rigidity of machine tool.
Strict quality process control standard ensures product service life, stability and reliability.
