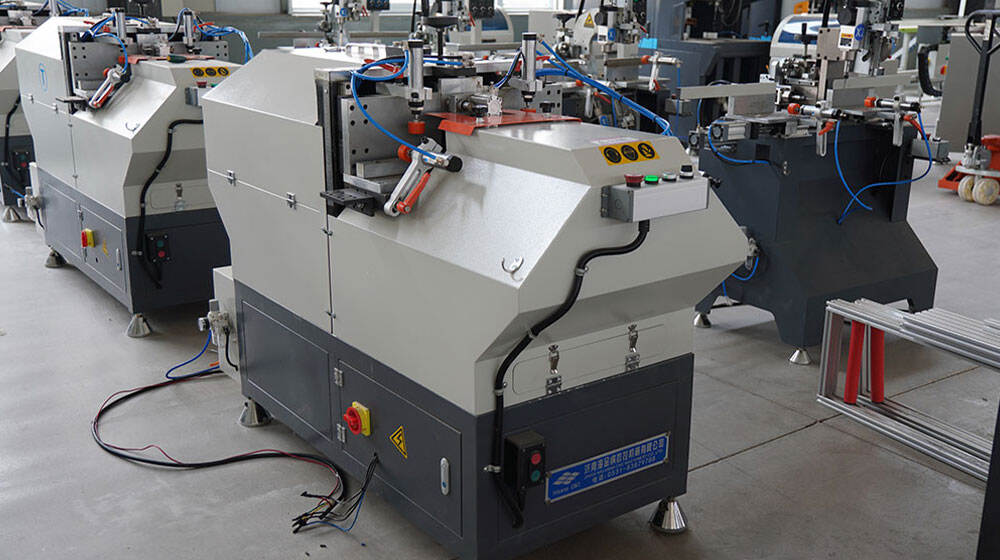

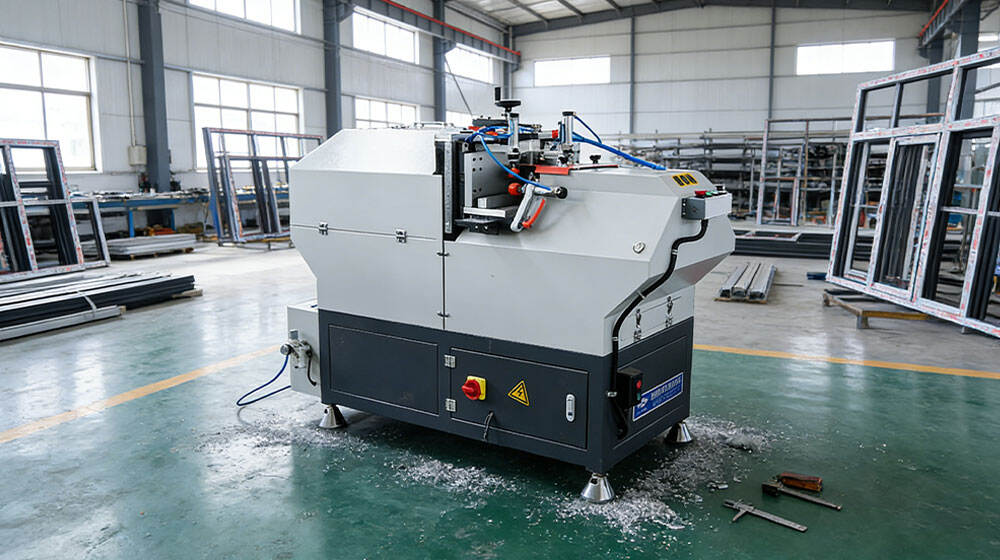

JP-Z Mullion Cutting Machine

JP-Z is a mullion cutting saw for making upvc windows and doors，V-shaped tenon cut for pvc window mullion profile，Specially used for the mullion welded pvc window.

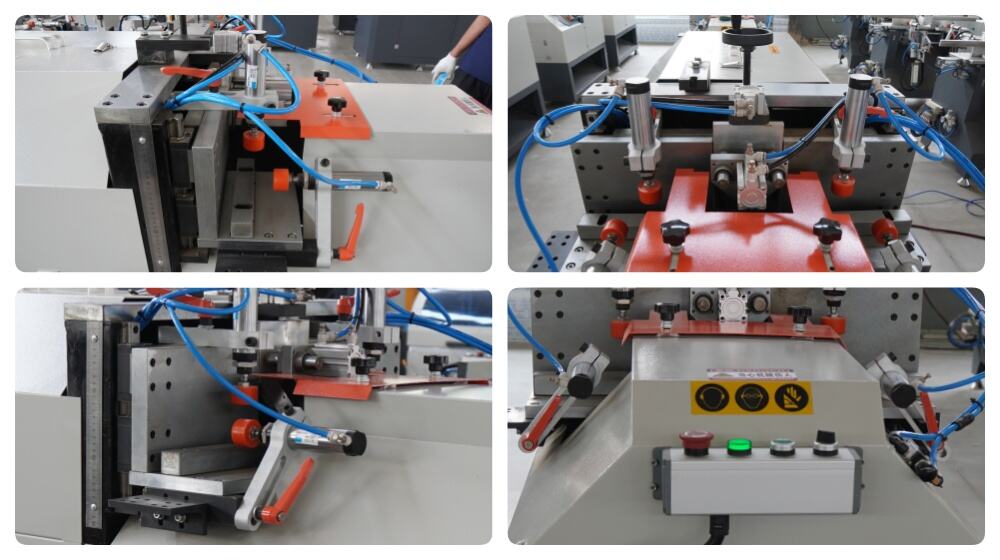

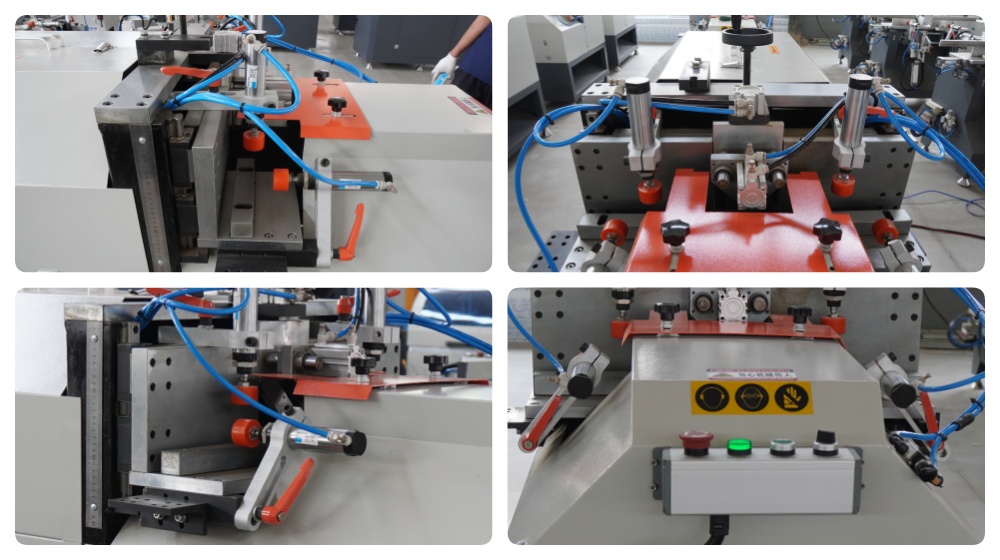

This machine is used for sawing the mullion profiles of plastic doors and windows. Both the pressing and feeding operations of this machine adopt pneumatic drive, making sawing processing more convenient and efficient. When adjusting the profile width of this machine, the adjustment can be made with reference to the attached scales on the two vertical guide shafts, ensuring convenient adjustment and accurate sawing dimensions.
This machine features a compact structure, safe and convenient operation, and easy maintenance. It consists of a profile support frame, a main machine, and a profile measuring mechanism.
The profile support frame is connected to the main machine and is equipped with support rollers. The rollers rotate with the movement of the profile, making profile pushing and pulling lighter. Its height can be adjusted in accordance with the lifting of the worktable.
The profile measuring mechanism adopts a sliding structure. After dragging the positioning device to the required position, lock the pentagonal handle on it. A rocking handle is installed at the end of the measuring mechanism, which can be manually operated to adjust the rectangular tube of the measuring mechanism along with the lifting of the main machine. A scale is attached to the positioning mechanism for length dimension reference during positioning.
The frame of this machine adopts a square tube welded structure, featuring high rigidity and convenient waste cleaning.

Applications:

JP-Z is a dedicated mullion cutting saw for UPVC doors and windows, specially designed for V-shaped tenon cutting of PVC window mullion profiles and used exclusively for mullion-welded PVC windows. It is widely applied in professional UPVC door and window manufacturing factories and mullion processing workshops. Suitable for sawing mullion profiles of plastic doors and windows, it meets the high-precision cutting needs of mullion processing, ensuring the fitting accuracy of mullions in welded PVC windows. Its compact structure and convenient operation make it an essential equipment for efficient and accurate mullion processing in UPVC door and window production.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	JP-Z

Specifications:

Model	JP-Z
Power supply	380V 50Hz
Input power	2×1.1kw
Working pressure	0.4-0.6Mpa
Air consumption	100 L/min
Motor speed	2800 r/min
Feeding speed	6-50mm/s
Cutter dimension	Φ300/Φ400×Φ30mm
Profile length	320-2000 mm
Cutting width	Max 100mm
Cutting height	Max 90mm
Overall dimension	2200×620×1350mm
Weight	260kg

Competitive Advantage:

1. Specialized Mullion Processing: Dedicated to V-shaped tenon cutting of PVC window mullion profiles, exclusively suitable for mullion-welded PVC windows, perfectly matching the professional processing needs of UPVC window mullions.

2. Convenient & Efficient Pneumatic Drive: Both pressing and feeding operations adopt pneumatic drive, making sawing more convenient and efficient, reducing manual labor intensity and improving processing efficiency.

3. Accurate & Easy Adjustment: Profile width adjustment can refer to the scales on two vertical guide shafts, ensuring convenient adjustment and precise sawing dimensions, avoiding size errors.

4. Humanized Structural Design: Equipped with a profile support frame with adjustable-height support rollers (rotating with profiles for easy pushing/pulling) and a sliding profile measuring mechanism with scales, facilitating accurate positioning and operation.

5. Stable & Easy to Maintain: Frame adopts square tube welded structure with high rigidity; compact overall structure, safe and convenient operation, easy maintenance, and convenient waste cleaning, ensuring long-term stable use.
