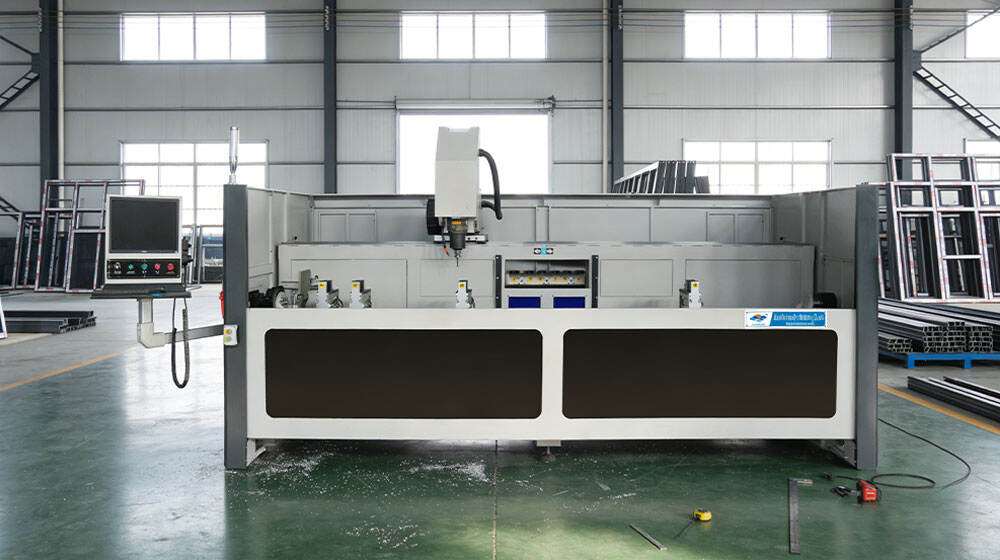

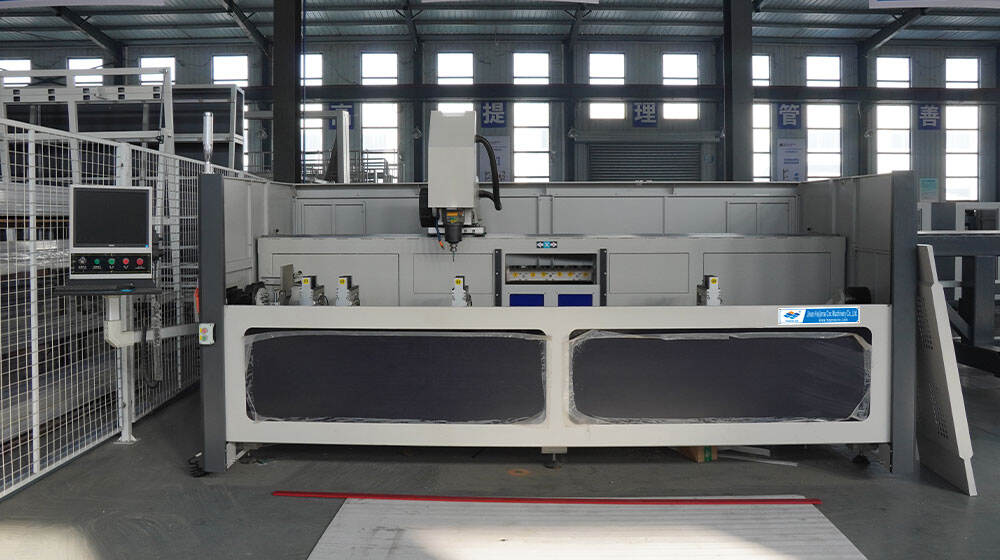

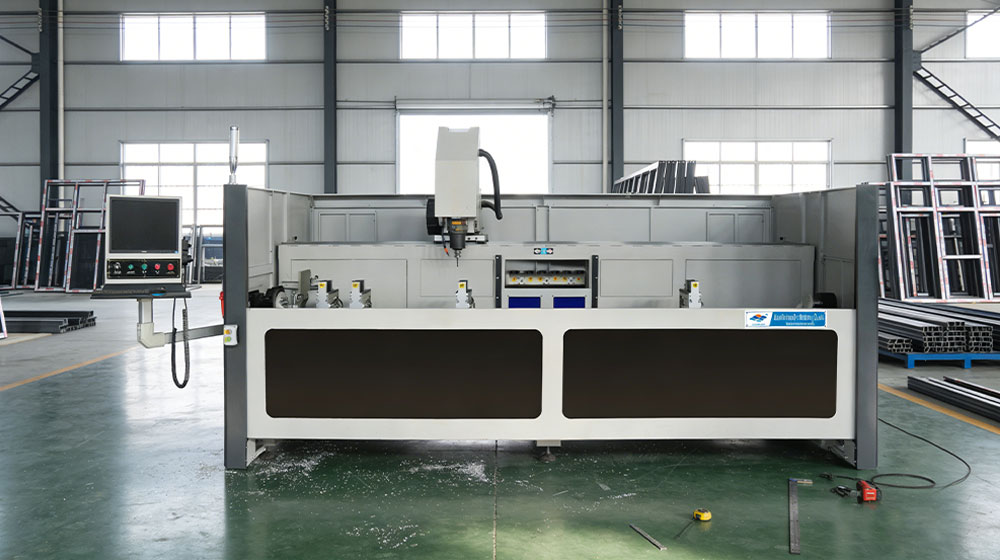

High-speed Four-axis Machining Center for Aluminum Profiles

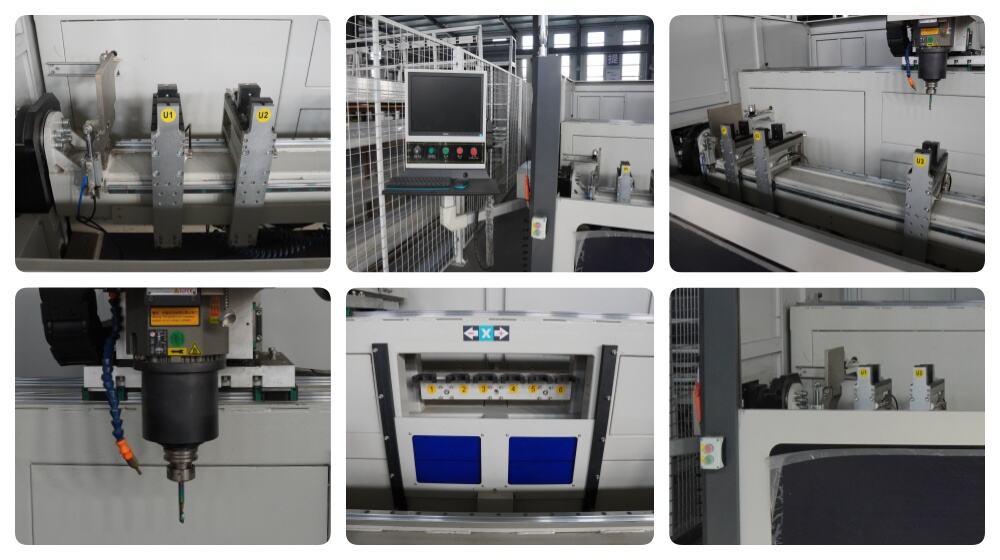

1. Specially designed for drilling and milling processing of aluminum profiles;
2. The workbench is automatically flipped driven by a servo motor, enabling milling of three surfaces with a single clamping;
3. The fixture is automatically positioned driven by a servo motor, saving more time and labor;
4. Easy-to-use operation:
a. No skilled workers required; connect with software and process automatically by scanning codes;
b. Equipped with a standard graphic library, allowing direct import of graphics to generate machining programs;
5. High efficiency: 4.5KW electric spindle with large torque, whose processing efficiency is twice that of an ordinary drilling and milling machine and eight times that of an ordinary profile milling machine;
6. Simpler operation: automatic tool change with a standard 6-station tool magazine;
7. Unique chip removal design with a bottom chip tray for a cleaner working site;
8. High safety: adopts a semi-closed protective cover with automatic lifting, delivering excellent safety performance;
9. Equipped with remote service functions (maintenance, upkeep, training), reducing service time and downtime, and lowering the factory's reliance on skilled workers.
Applications:
This machine is a professional drilling and milling equipment dedicated to the aluminum profile processing industry, specially designed for drilling and milling of aluminum profiles. It is widely applied in industrial aluminum profile processing factories, aluminum door and window manufacturing enterprises, and aluminum hardware accessory processing workshops. With multi-functional and high-efficiency processing capabilities, it meets the batch processing needs of aluminum profiles, suitable for scenarios requiring high-precision, automated drilling and milling. It is an essential equipment for improving production efficiency and reducing labor costs in aluminum processing industry.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
DLGZA-CNC-3200 |
Specifications:
|
Worktable A-axis Rotation Angle |
+90°~0~-90° |
|
Feed Rate (X/Y/Z/A Axis) |
60/30/30m/min/18r/min |
|
Positioning Accuracy |
±0.1mm |
|
Repeat Positioning Accuracy |
±0.05mm |
|
Cylindricity |
0.1/100mm |
|
Spindle Power |
4.5KW |
|
Spindle Speed |
18000rpm |
|
Number of Fixtures |
4 |
|
Working Air Pressure |
6~8kg/c㎡ |
|
Total Power |
8.1kw |
|
Weight |
2500kg |
|
Travel Range (X/Y/Z Axis) |
3200*530*400 |
|
Servo Motor (X/Y/Z/A/U Axis) |
0.75/0.75/0.4/0.85/0.2kw |
|
Automatic Tool Change Time |
8s |
|
Drilling and Milling Perpendicularity |
0.1/100mm |
|
Cut Surface Roughness |
≤Ra6.3 |
|
Tool Magazine/Tool Holder |
6/ISO30 |
|
Max. Clamping Diameter of Drilling and Milling Tool |
16mm |
|
Voltage |
380V/50HZ |
|
Worktable Height |
1000mm |
|
Processing Range (LWH) |
3200*200*180mm |
|
Overall Dimension (LWH) |
4200*1900*2200mm |
Competitive Advantage:
1. High-Efficiency Processing: Equipped with a 4.5KW large-torque electric spindle, whose processing efficiency is twice that of ordinary drilling and milling machines and eight times that of ordinary profile milling machines, greatly improving batch production efficiency.
2. Automated & Labor-Saving Operation: Servo-driven automatic workbench flipping (three-surface milling with one clamping) and fixture positioning; 6-station automatic tool change, no skilled workers required, with code scanning automatic processing and graphic library support for quick program generation.
3. High Safety & Cleanliness: Adopts a semi-closed protective cover with automatic lifting for excellent safety; unique chip removal design with a bottom chip tray keeps the working site clean and facilitates workshop management.
4. Convenient Remote Service: Equipped with remote maintenance, upkeep and training functions, reducing service time and equipment downtime, and lowering the factory’s reliance on skilled workers.
5. Specialized & Precise: Specially designed for aluminum profile drilling and milling, with servo-driven positioning and automated operation, ensuring high processing precision and consistent product quality.
