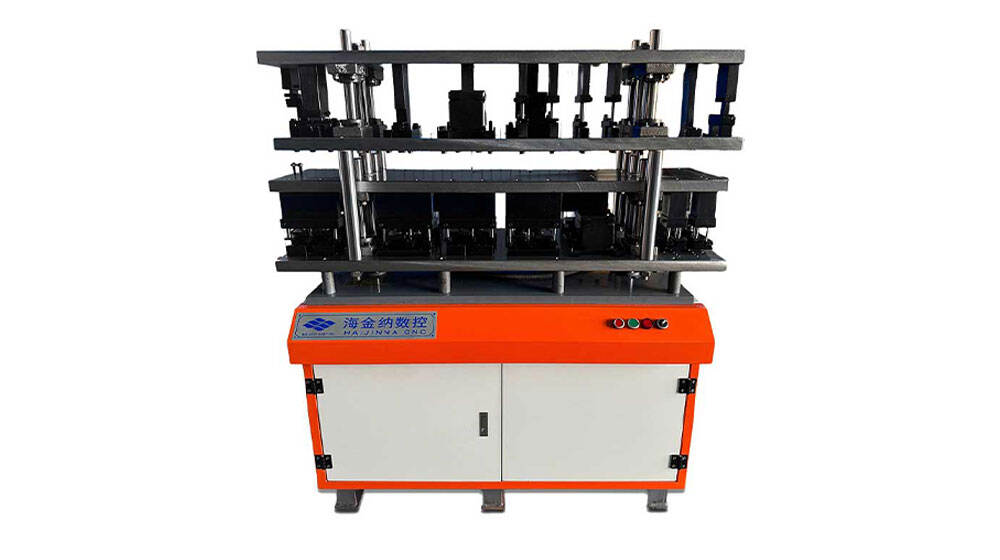

LYA Series Hydraulic Punching Machine

• LYA Series is a hydraulic punching machine which is mainly used for the punching processes on aluminium windows and doors,such as the corner joint holes,lock holes,drain holes and other processes for assembly

• Applicable material:Aluminum,upvc and thin-walled steel.

• The transmission structure based on the lever principle provides punching force with the least possible effort.

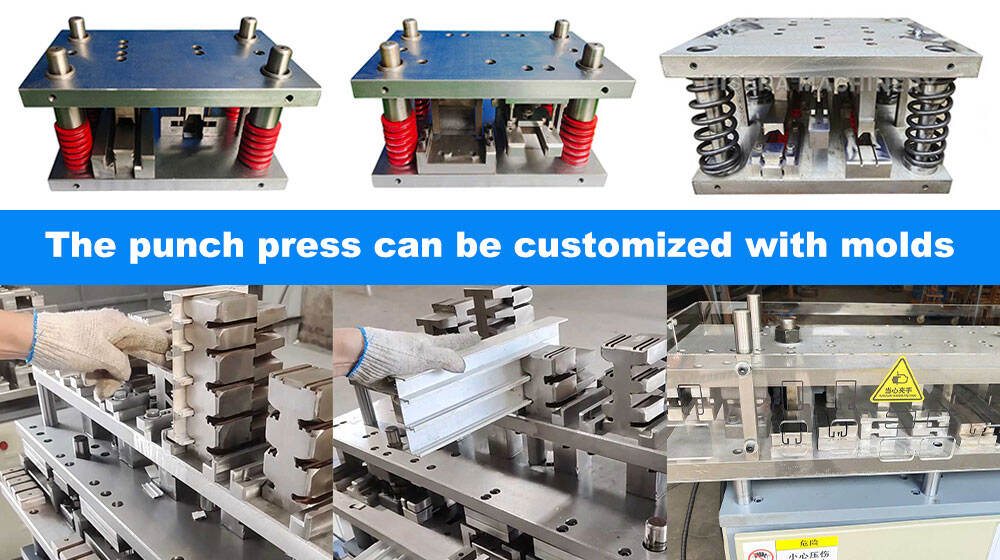

• Die set is large in size which allows installation of as many punching stations as possible,

• Taking into account high production requirements and economical.

• The dies are CNC processed and vacuum hardened for high durability.

• Two operation modes can be realized: inching adjustment and linkage.

Applications:

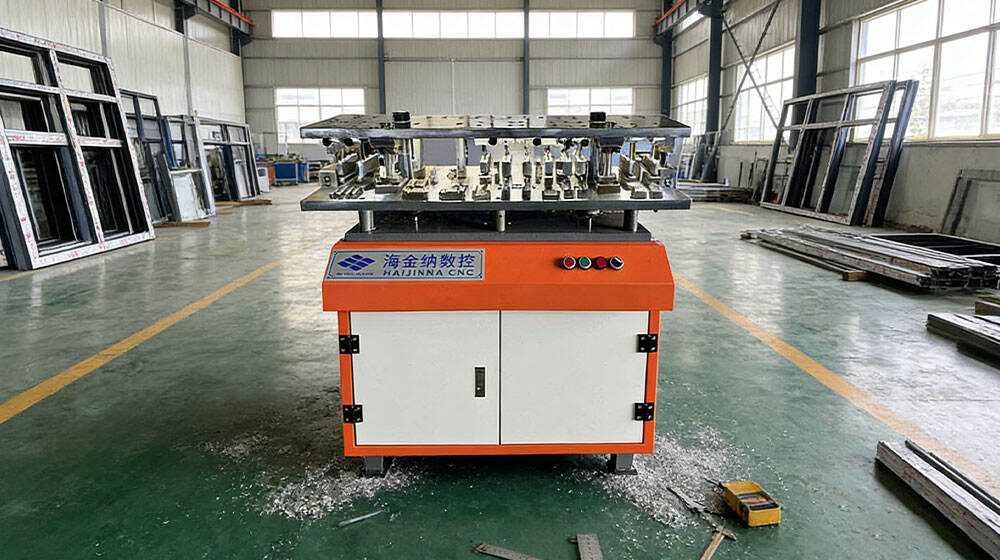

LYA Series is a hydraulic punching machine mainly used for punching processes of aluminum windows and doors, such as corner joint holes, lock holes, drain holes and other assembly-related punching operations. Applicable to aluminum, UPVC and thin-walled steel, it is widely applied in professional door and window manufacturing factories, profile processing workshops and small-to-medium-sized building materials processing enterprises. It meets the high-efficiency and precise punching needs of batch production and customized processing of aluminum/UPVC/thin-walled steel door and window profiles, and is an essential equipment for improving the assembly efficiency and quality of door and window products.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	LYA Series

Specifications:

Model	LYA Series
Input power	1.5/2.2/3.75kw
Nominal pressure	15-25MPa
Max.punching stroke	90mm
Center distance of guide column	500-850mm
Die set dimension	700400mm/1100400mm/1400*400mm
Weight	400-1200kgs

Competitive Advantage:

1. Labor-Saving Lever Transmission: Adopts lever principle-based transmission structure, providing sufficient punching force with minimal effort, reducing operator labor intensity.

2. Multi-Station Compatible: Large-size die set allows installation of as many punching stations as possible, enabling simultaneous or sequential punching of multiple holes, improving processing efficiency.

3. Durable High-Quality Dies: Dies are CNC processed and vacuum hardened, featuring high hardness and wear resistance, extending service life and reducing replacement costs.

4. Flexible Operation Modes: Supports two operation modes (inching adjustment and linkage), adapting to different processing scenarios, facilitating debugging and batch production.

5. Cost-Effective & High-Yield: Balances high production requirements and economy, suitable for enterprises of different scales, realizing high-efficiency punching with low operating costs.
