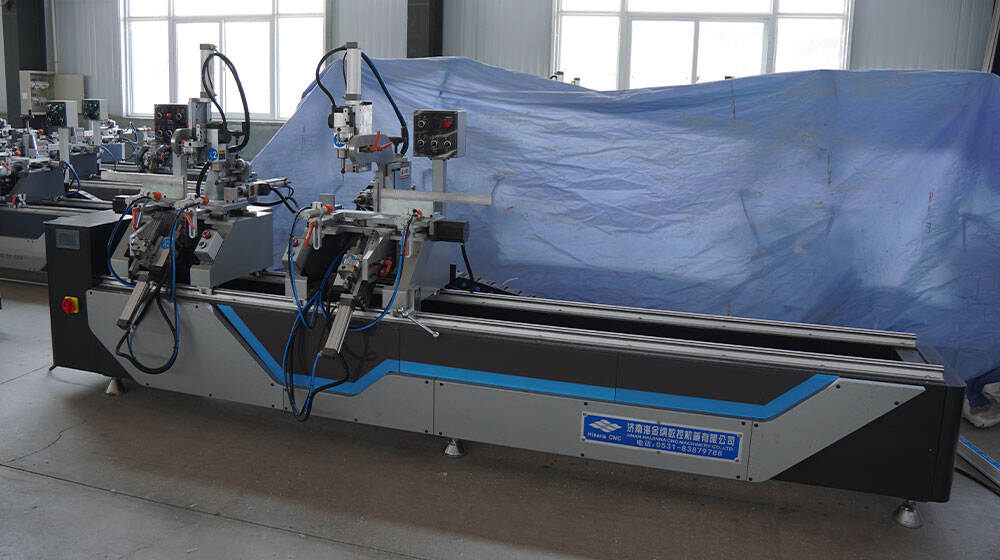

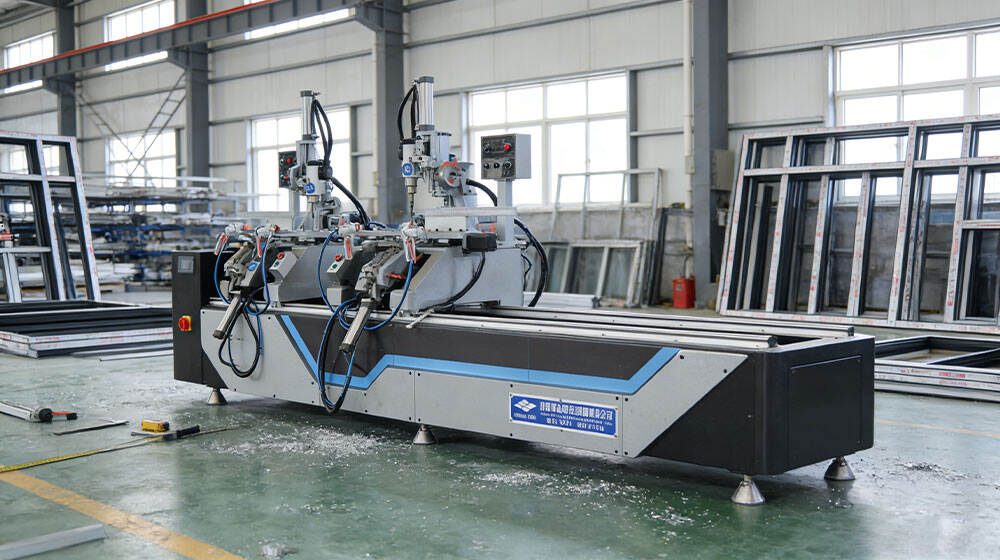

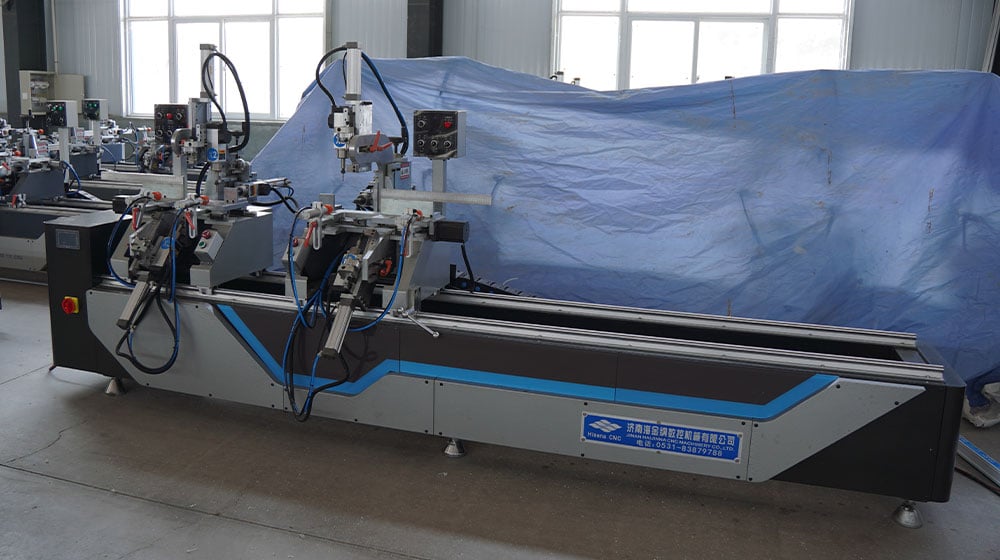

SC-DG3 Double Head Water Slot Milling Machine
- SC-DG3 is an automatic milling machine for processing the water slots on upvc windows.

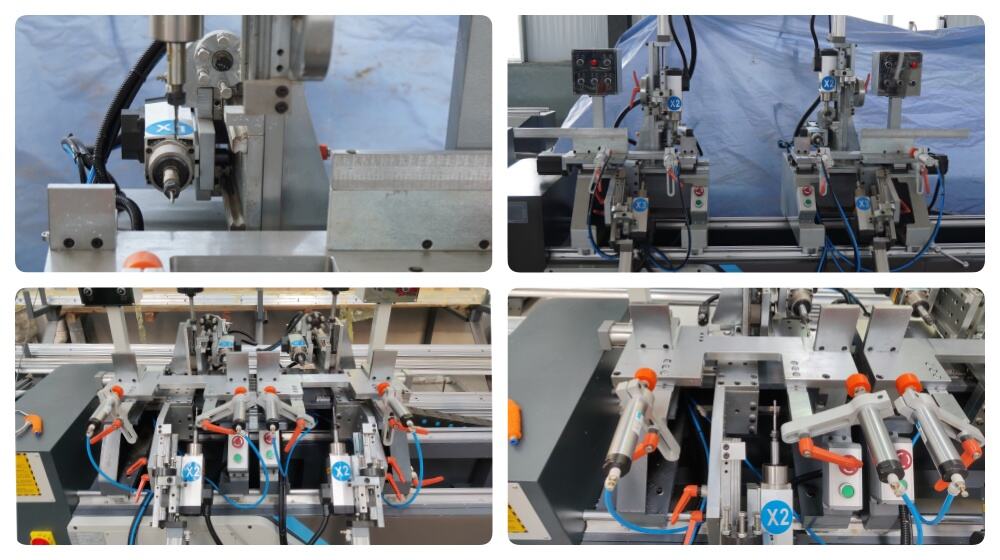

- Double head design.Each head has three milling units,one rotary unit for variable angle milling at the top,one horizontal unit at the rear,and one vertical unit at the front of machine.
- Each head is equipped with 3 spindle motors.
- Each milling unit has 6 stops for adjusting the milling depth.
- Milling units can work individually or simultaneously.
- Precision linear guide rails.
- Automatic working cycle.
Applications:
SC-DG3 is a dedicated automatic milling machine for processing water slots on UPVC windows, featuring a double head design with multiple milling units. It is widely applied in professional UPVC door and window manufacturing factories and UPVC profile processing workshops. Suitable for batch processing of water slots on various UPVC window profiles, it meets the high-precision, high-efficiency processing needs of UPVC window water drainage structures. It is an essential equipment for ensuring the sealing and drainage performance of UPVC windows, adapting to mainstream UPVC window production scenarios and improving the consistency of water slot processing quality.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
SC-DG3 |
Specifications:
|
Model |
SC-DG3 |
|
Power supply |
220V 50Hz |
|
Motor power |
6*800w |
|
Air pressure |
0.5~0.8Mpa |
|
Air consumption |
200L/min |
|
Rotation speed |
18000rpm |
|
Milling length |
60mm |
|
Milling depth |
30mm |
|
End mills |
Ø4*75mm/ Ø575mm |
|
Dimension |
4250*900*1500mm |
|
Weight |
1000kg |
Competitive Advantage:
1. Specialized UPVC Water Slot Processing: Dedicated to UPVC window water slot milling, with a double head design and three milling units per head (rotary, horizontal, vertical), perfectly matching the diverse water slot processing needs of UPVC windows.
2. High-Efficiency Flexible Processing: Milling units can work individually or simultaneously, with double heads and 3 spindle motors per head, greatly improving water slot processing efficiency and adapting to different production rhythms.
3. Precise Depth Adjustment: Each milling unit is equipped with 6 stops for adjusting milling depth, enabling accurate control of water slot depth, ensuring consistent processing quality and meeting different UPVC window specification requirements.
4. Stable High Precision: Adopts precision linear guide rails, ensuring smooth movement of milling units, high positioning accuracy and stable processing performance, avoiding water slot deviation and uneven depth.
5. Fully Automatic Operation: Equipped with an automatic working cycle, reducing manual intervention, lowering labor intensity, and ensuring continuous and efficient batch processing of UPVC window water slots.
