LDJ4-100 Four Heads Screwing Machine

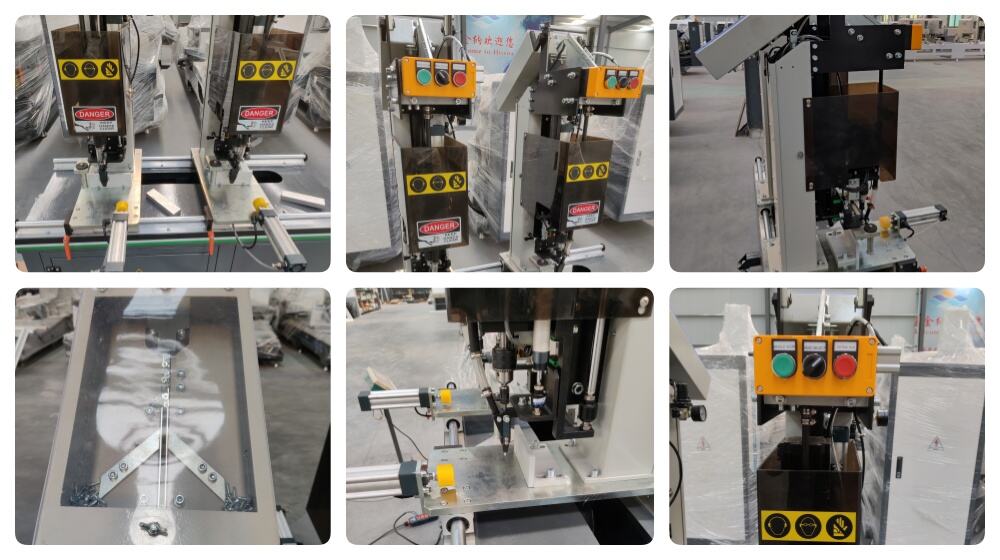

1. Automatic screw-feed and locking.

2. Screw mounting height adjustable, punching depth adjustable.

3. Adjustable front and rear position of the head, handwheel operation, ruler indication, efficient and practical.

Applications:

This machine is a professional automatic screw-feeding and locking equipment, widely applicable in the hardware processing, PVC/aluminum door and window manufacturing, and light industrial product assembly industries. It is mainly used for automatic screw installation in batch production scenarios, such as door and window profile assembly, hardware accessory fixing, and light-duty product fastening. Suitable for workshops and assembly lines that require efficient, precise screw locking, it meets the needs of standardized production, improves assembly efficiency, and reduces manual operation errors, making it an essential equipment for automated assembly in related industries.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	LD-S2

Specifications:

Power supply	380V/50Hz
Air pressure	0.6-0.8Mpa
Profile depth	32mm
Screw specification	Φ3-Φ5mm/13-19mm
Screw holes pitch	250 to 380mm
Total power	1.5kw
Steel reinforcement thickness	1-2mm
Profile height	25-120mm
Screw type	Cross countersunk head
Dimension	2800×1000×1700mm

Competitive Advantage:

1. Efficient Automatic Operation: Realizes automatic screw feeding and locking, eliminating manual screw feeding and locking steps, greatly improving assembly efficiency and reducing labor intensity.

2. Flexible Adjustable Parameters: Screw mounting height and punching depth are adjustable, which can flexibly adapt to different product specifications and screw installation requirements, enhancing equipment versatility.

3. Precise & Efficient Head Adjustment: The front and rear position of the head is adjustable, operated by a handwheel with ruler indication, ensuring accurate positioning, simple operation, and high practicality.

4. High Consistency & Accuracy: Automatic operation and precise adjustment ensure consistent screw locking depth and position, reducing manual errors and improving product assembly quality.

5. Wide Industry Adaptability: Suitable for various industries such as door and window manufacturing and hardware processing, meeting the batch screw locking needs of different products, with strong applicability.
