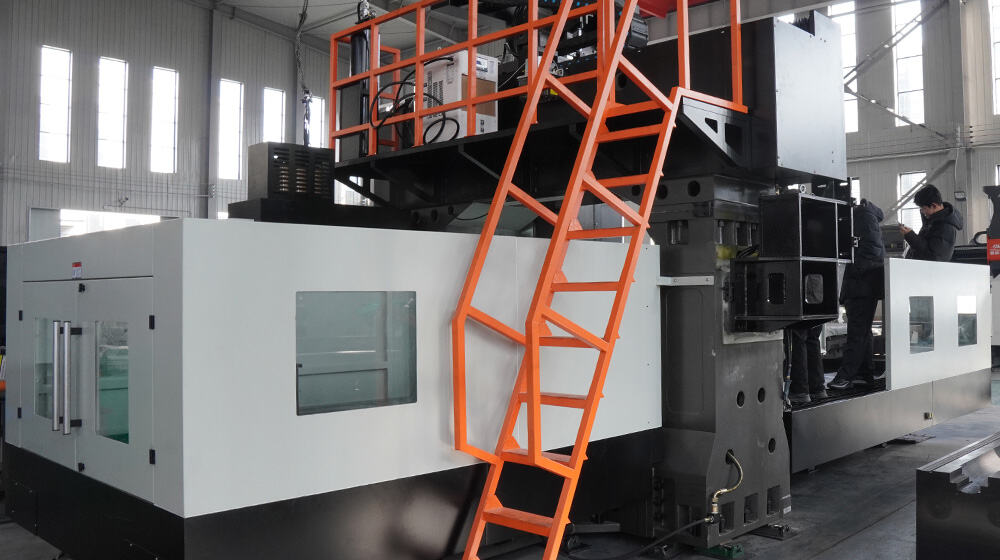

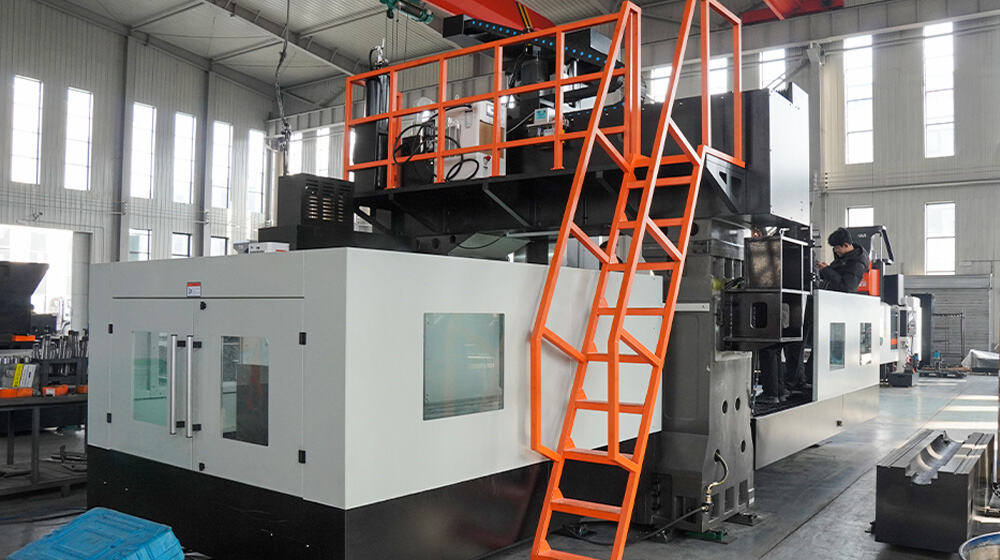

Medium Gantry Series

Applications:

This series of machine tools is mainly applied in the precision mold manufacturing and heavy-duty mechanical processing industries. It is widely used in professional mold factories, large-scale precision part processing enterprises, and high-end equipment manufacturing workshops. Specifically designed for processing molds of medium and large precision parts, it is suitable for high-speed, heavy-load and heavy-cutting precision machining scenarios. With high rigidity, stability and precision, it meets the high-standard processing needs of medium and large precision part molds, ensuring processing accuracy and efficiency, and is an essential equipment for precision mold manufacturing.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	20 Series（3220/4220）

Specifications:

Category	Item	3220	4220
Travel	Effective Gantry Width (mm)	2080	2080
	X-Axis Travel (mm)	3200	4200
	Y-Axis Travel (mm)	2100	2100
	Z-Axis Travel (mm)	800/950	800/950
	Spindle Nose to Table Surface Distance (mm)	150-950	150-950
	Max. Clearance Under Gantry (mm)	950/1100	950/1100
Worktable	Worktable Size (mm)	3000×1800	4000×1800
	Worktable T-Slot Size (mm)	22	22
	Max. Load Capacity (kg)	6000	8000
Spindle	Spindle (Model/Mounting Size)	BT50-6000
	Spindle Motor Power (KW)	15/18.5	15/18.5
	Torque (N·m)	96/118	96/118
	Spindle Speed (r/min)	50-8000	50-8000
Transmission	X, Y, Z Axis Ball Screw Specification	5010\6310	5010\6310
	X, Y, Z Axis Rapid Traverse Speed (m/min)	16/20/16	16/20/16
	X, Y, Z Axis Roller Linear Guide Specification	RGH45\55	RGH45\55
	X, Y, Z Axis Coupling Specification	65\80\95	65\80\95
	X, Y, Z Axis Motor Connection	Direct Drive	Direct Drive
Accuracy	Positioning Accuracy (mm)	0.020	0.020
Accuracy	Repeat Positioning Accuracy (mm)	0.01	0.01
Optional	Spindle (Model/Mounting Size/Speed)	BT40-8000-12000 BBT40-8000 BT50-8000 BBT50-6000
	Tool Magazine	24\32T Disc Type	24\32T Disc Type
	Z-Axis Guideway	Z-Axis 4-Linear Guide (Hard Guide)
Others	Total Power (Kw)	30	30
	Approx. Machine Weight (Ton)	25	28
	Overall Machine Dimension (mm)	7500×3100×4800	9500×3100×4800
	CNC System	FANUC (Syntec, Mitsubishi, Siemens)

Competitive Advantage:

1. High Rigidity & Stability: Designed through finite element analysis, with an overall design based on high-speed, heavy-load and heavy-cutting requirements, ensuring excellent rigidity, stability and precision during long-term high-intensity processing.

2. Specialized Mold Processing: Specifically suitable for processing molds of medium and large precision parts, perfectly matching the professional processing needs of precision mold manufacturing industry.

3. High-Speed Precision Machining: Equipped with a high-speed spindle, enabling high-speed precision machining, improving processing efficiency while ensuring the accuracy of mold processing.

4. High-Quality Core Configuration: Selects imported high-precision functional components, strictly following precision-grade machine tool manufacturing process requirements to ensure overall accuracy and stable performance.

5. Reliable & Durable: Adopts strict quality process control standards, effectively extending product service life, ensuring long-term stable and reliable operation, and reducing equipment downtime in mold processing.

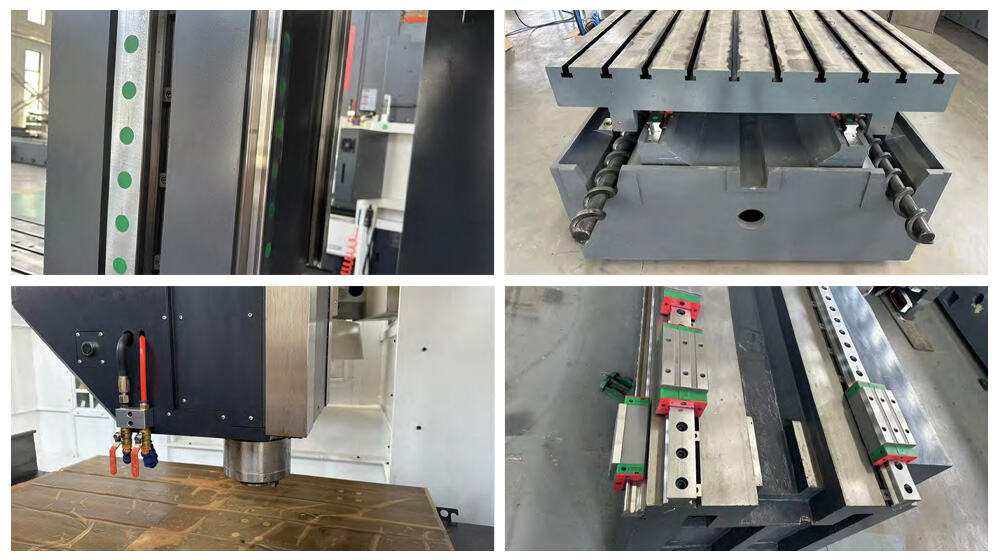

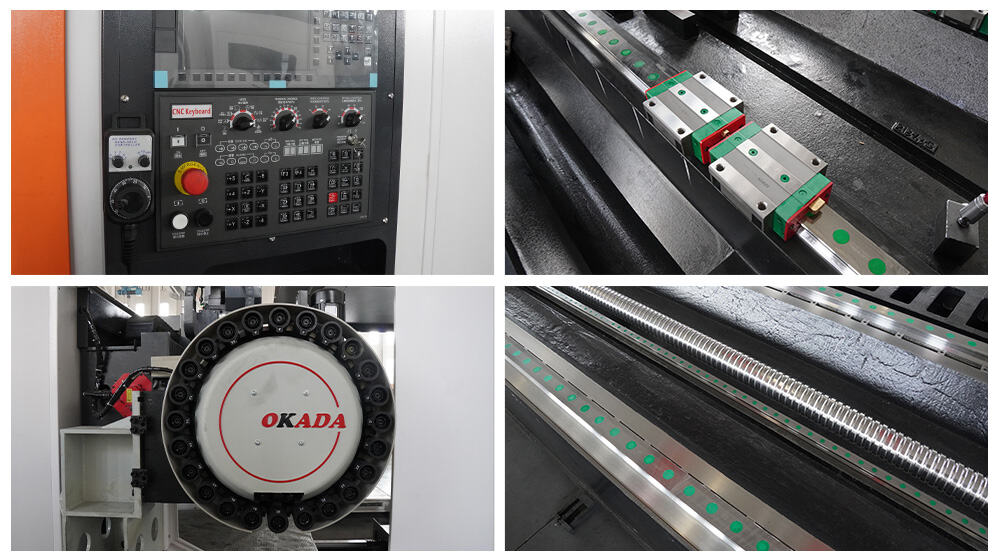

Main Feature:

Select imported high-precision functional components and strictly follow the manufac- turing process requirements for precision-grade machine tools to meet overall accuracy and per- formance.
Overall design is based on the requirements of high speed, heavy load and heavy cutting, which meets high rigidity of machine tool.
Strict quality process control standard ensures product service life, stability and reliability
Suitable for processing the mold of medium and large precision parts.
