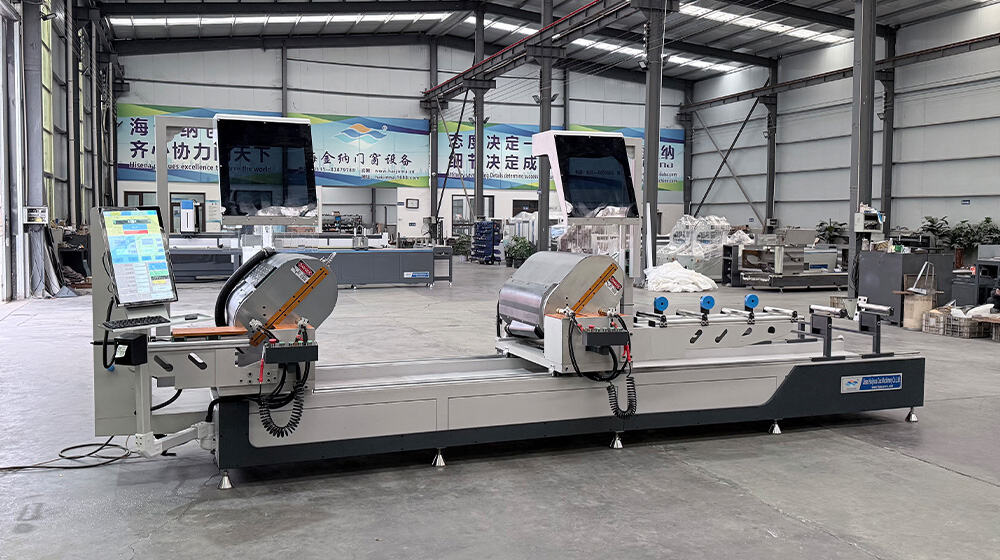

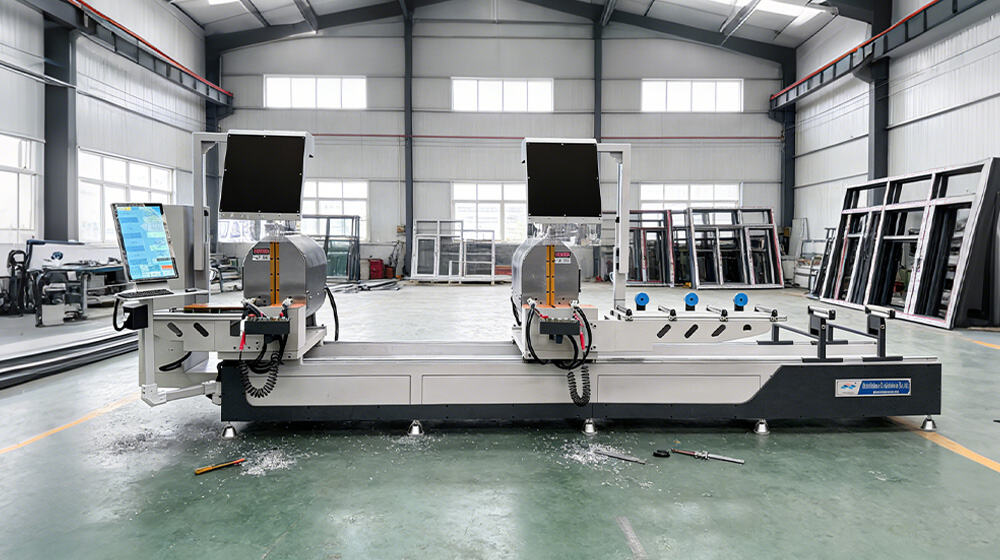

LRZ2-CNC-550-2500 CNC Dual-Headed Miter Saw with Arbitrary Cutting Angles
• The LRZ2-CNC-550-2500 Arbitrary Angle CNC Double-Headed Cutting Saw is primarily used for processing and cutting aluminum profiles, performing arbitrary angle cutting on components such as curved anti-collision beams for new energy vehicles, and addressing various irregular cutting positions that require arbitrary angles.
• Simple operation, reliable performance, advanced technology, and easy maintenance.

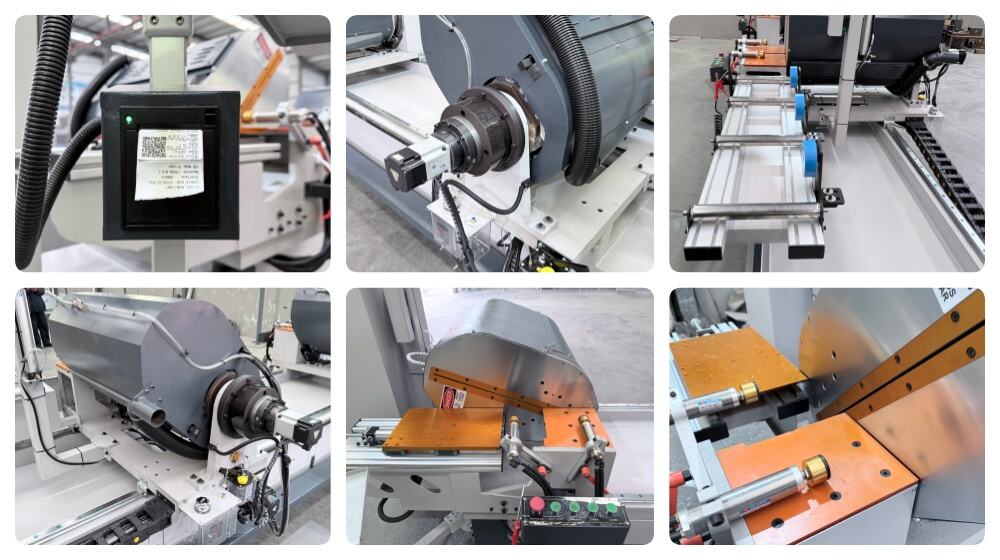

• Two servo motors (2*0.75kW) drive the high-precision lead screw to feed the saw blade, ensuring fast cutting speed, high efficiency, and superior machining accuracy.
• It can also be used for non-ferrous metal processing. Its two cutting heads can work independently or simultaneously, allowing for cutting to the required length and bevel angle in a single operation.
• Suitable for cutting various special-shaped aluminum alloy profiles and sliding door materials, as well as for sectioning aluminum windows, doors, and curtain wall profiles.
• Maximum cutting dimensions: 410mm at 90°, 210mm at 22.5°, and 290mm at 45°. The maximum cutting width for all three angles is 170mm.
Applications:
The LRZ2-CNC-550-2500 Arbitrary Angle CNC Double-Headed Cutting Saw is primarily used for processing and cutting aluminum profiles, performing arbitrary angle cutting on components such as curved anti-collision beams for new energy vehicles, and addressing various irregular cutting positions that require arbitrary angles. It can also be used for non-ferrous metal processing, suitable for cutting various special-shaped aluminum alloy profiles and sliding door materials, as well as for sectioning aluminum windows, doors, and curtain wall profiles.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
LRZ2-CNC-550-2500 |
Specifications:
|
Power Supply |
380V 50Hz |
Input Power |
9.5kW |
|
Working Air Pressure |
0.5-0.5MPa |
Saw Blade Speed |
3000r/min |
|
Saw Blade Specification |
D=550mm d=30mm |
Cutting Angle |
-22.5°~22.5° |
|
Cutting Roughness |
Ra12.5μm |
Overall Dimensions |
850019501900mm |
|
Cutting Width |
170mm |
Cutting Height |
90°: 410mm / 45°: 290mm / 22.5°: 210mm |
Competitive Advantage:
1. Simple operation, reliable performance, advanced technology, and easy maintenance.
2. Two servo motors (2*0.75kW) drive the high-precision lead screw to feed the saw blade, ensuring fast cutting speed, high efficiency, and superior machining accuracy.
3. Its two cutting heads can work independently or simultaneously, allowing for cutting to the required length and bevel angle in a single operation.
4. It can also be used for non-ferrous metal processing, expanding the scope of application.
5. Maximum cutting dimensions: 410mm at 90°, 210mm at 22.5°, and 290mm at 45°. The maximum cutting width for all three angles is 170mm, covering most overseas mainstream profile processing sizes.
6. Complies with CE safety certification and international processing standards, ensuring barrier-free cross-border export and smooth customs clearance for foreign trade.
7. Supports multi-language operation system, adapting to operators in different overseas regions and reducing training costs for foreign customers.
8. Optimized energy-saving design, low power consumption and air consumption, in line with the global green production trend and reducing long-term operating costs for overseas factories.
9. Modular structure design, easy replacement of consumables, and 24-hour remote technical support, efficiently solving after-sales problems for overseas customers and reducing maintenance costs.
15. Compact overall structure, small floor space, suitable for overseas factories with limited production area, saving workshop layout costs.
