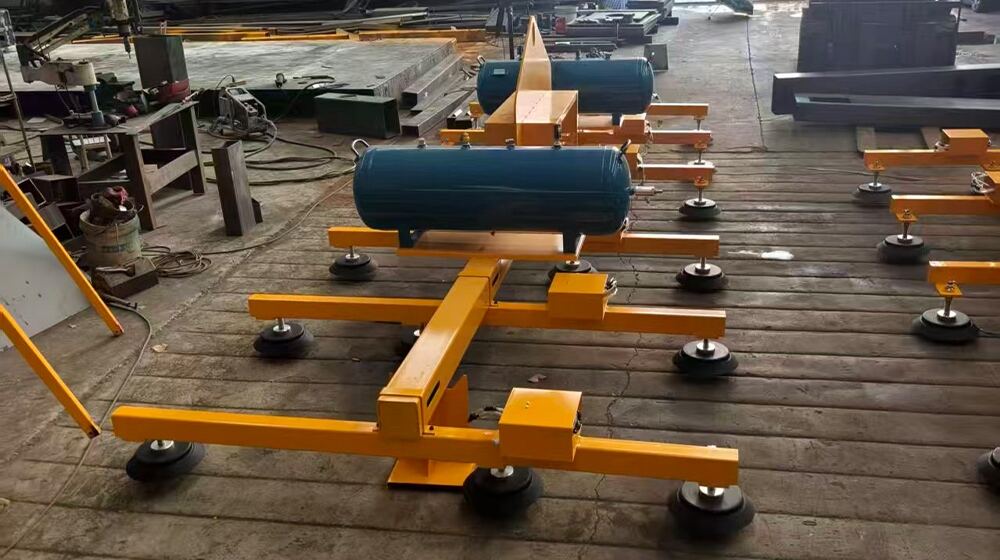

Air Charged Vacuum Locking Suction Lifter
The air-charged vacuum locking suction lifter is a highly efficient and safe auxiliary equipment specifically designed for lifting and loading large panels. Adopting industry-leading vacuum locking technology, it requires no electricity or vacuum pump — only a single air hose to achieve fast and safe panel transfer. It completely solves the common pain points of traditional lifting methods, such as low efficiency, high risk of panel falling, and serious safety hazards. The equipment is widely applicable to various working scenarios, including aluminum door and window fabrication, panel production, warehousing, and logistics.
Applications:
- Aluminum Door & Window Fabrication Industry: Perfectly suited for glass panel loading and transfer within aluminum door and window processing procedures, improving loading efficiency and reducing damage caused by manual handling.
- Panel Processing Workshops: Facilitates workstation transfer and loading operations for various metal panels, composite panels, and glass sheets.
- Building Material Warehousing & Logistics: Enables stacking, loading/unloading, and transfer of large panels, significantly reducing labor costs.
- Other Industrial Scenarios: Ideal for short-distance transfer of heavy panels in environments without power supply where flexible movement is required, adapting to a wide range of working conditions.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
XPJ-ACV8/12/14/16/18 |
Specifications:
|
Suction Cup Quantity |
Suitable Sheet Size (L × W × T) |
Max Loading Weight |
Core Configuration / Notes |
|
8-head |
2-4m × 1-1.5m × 6mm |
≤200kg |
Standard model for small sheets; optional remote control |
|
12-head |
3-5m × 1-2m × 8mm |
≤300kg |
Standard model for medium sheets; optional remote control |
|
14-head |
3-6m × 1-2m × 10mm |
≤500kg |
Custom model for 6m×1.5m×8mm 600kg iron plates; standard with 2 × 60L gas tanks |
|
16-head |
3-6m × 1-2m × 10mm |
≤700kg |
Standard model for large thick plates; optional remote control |
|
18-head |
3-6m × 1-2m |
≤900kg (≤1000kg for high-mirror-surface plates) |
Flagship model; 5m×2m mechanism, standard with control handle + remote control & large-capacity gas tanks |
Competitive Advantage:

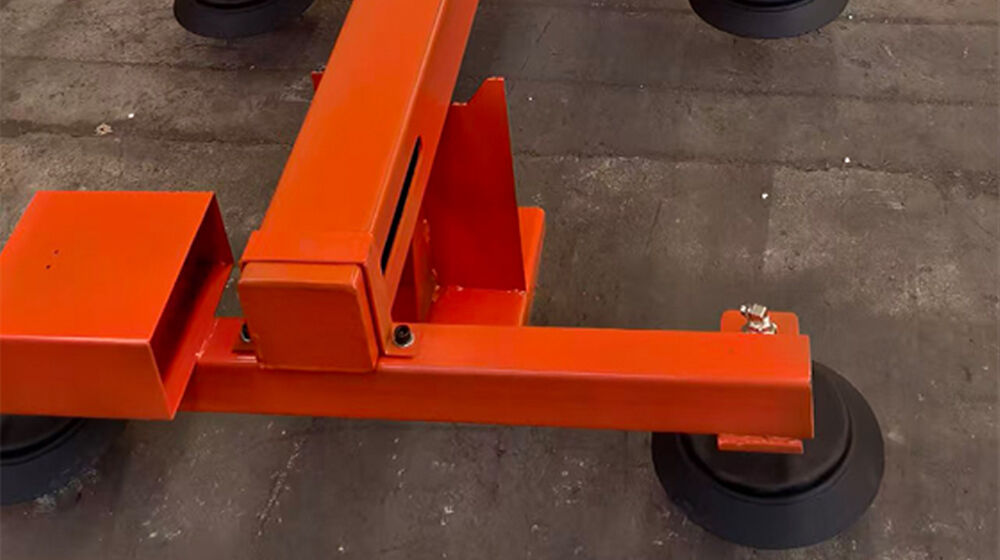

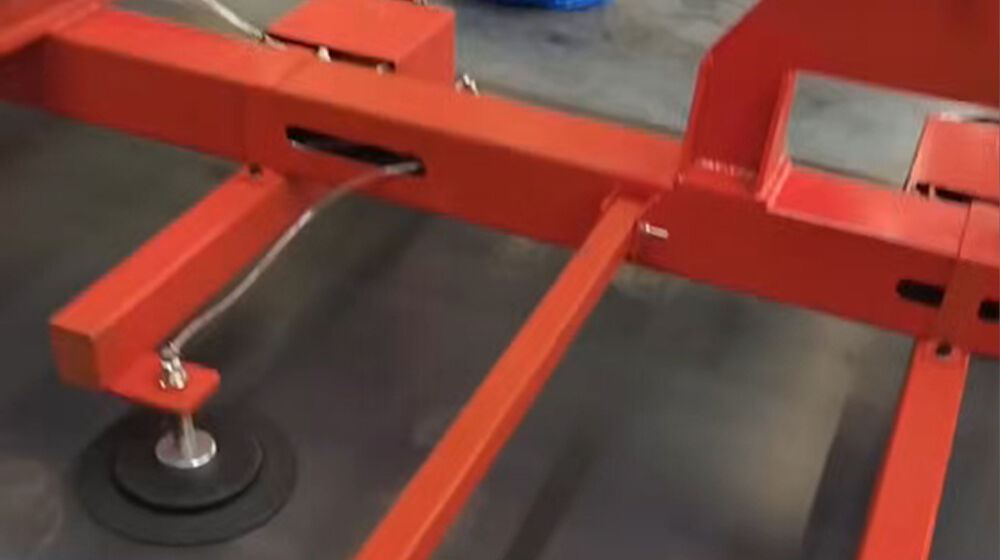

1. Equipped with high-strength wear-resistant vacuum suction cups, and standard with an independent vacuum locking device on all models. Each suction cup is individually controlled and operates independently. Even in the event of sudden air pressure drop or air hose rupture, the panel remains securely locked，100% prevention of falling accidents, ensuring comprehensive safety for operators and equipment.
2. Supports dual operation modes: manual control handle + wireless remote control. Allows inching control for lifting and lowering, enabling precise adjustment of panel position and height. No professional training required，ordinary workers can quickly master it, greatly improving work efficiency.

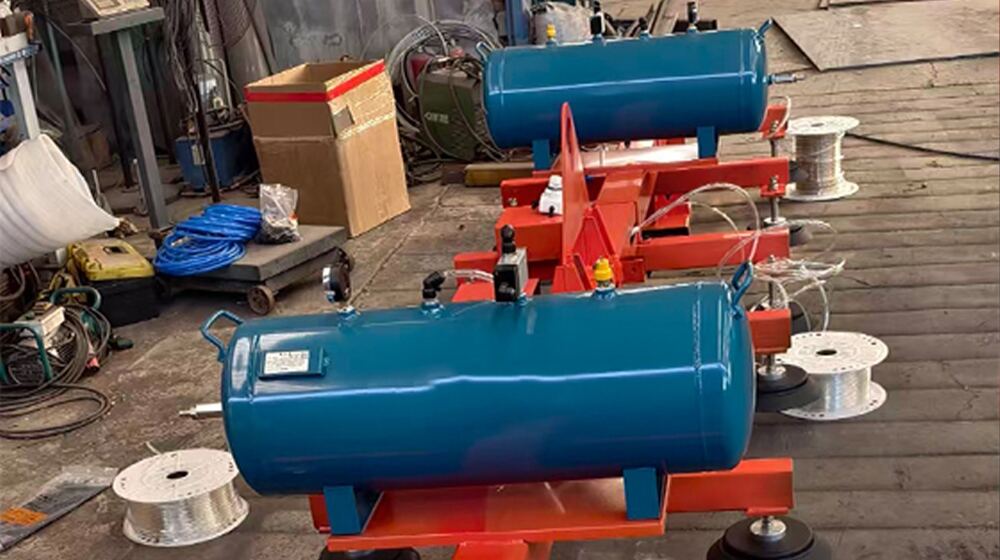

3. Standard with a large-capacity air receiver tank. One charge supports multiple lifting cycles, eliminating the need for continuous hose connection. Free and unrestricted movement, flexibly adapting to panel transfer needs between different workstations within the workshop.
4. Covers panel lifting capacities from 200 kg to 1000 kg. Suitable for various panel types, sizes, and thicknesses, including aluminum sheets, iron plates, glass, and more. Strong versatility meets the customized needs of different industries.
Key Product Highlights：
- Vacuum Locking Technology: Standard on all models, independent pressure control eliminates falling risks.
- Dual Control Modes: Handle + remote control for flexible near/far distance operation.
- Gas Storage Power Reserve: Traveling version with built-in gas tanks, one charge for multiple jobs.
- Low-Maintenance, No-Energy Design: No power supply or vacuum pumps required, easy installation and low maintenance cost.
- Customization: Adjustable suction cup quantity and gas tank capacity for special working conditions.
