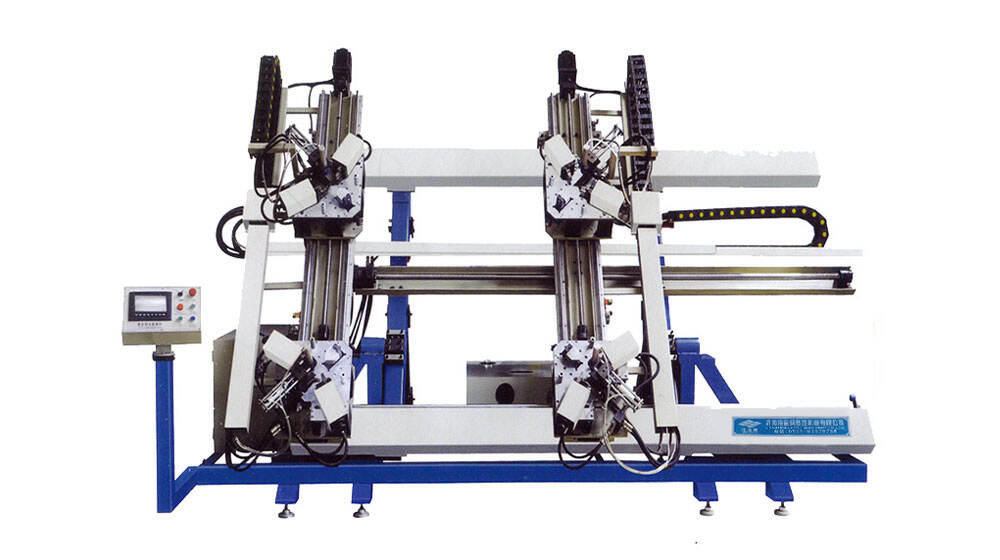

LM4B-90X2200X3000 Automatic Four Corners Crimping Machine
• This machine is used for high-efficiency assembly of aluminum doors and windows, and it can complete the four-corner punching connection at one time.
• The pressing device automatically moves back and forth, easy to operate, and the window size is automatically adjusted.
• The frame is professionally welded with high-quality steel and treated with aging.
• Using imported high-quality CNC system, taking into account both speed and precision.
• Through the torque monitoring function of the servo system, the four corners can be automatically preloaded to ensure the accuracy of the group angle.
• The corner knives can be easily adjusted back and forth, to meet the needs of different profiles.
• One-time framing can control the joints and flatness between profiles, making the quality of the framing predictable.
• The seamless connection between the control system and the servo system greatly improves the control accuracy.
• The hydraulic system of this machine adopts low-pressure feed and high-pressure group angle feed, which greatly reduces operating errors.
Applications:
This machine is widely applied in the high-efficiency assembly of aluminum doors and windows, suitable for large-scale production workshops, aluminum profile processing enterprises and door and window manufacturing factories. It is applicable to the assembly of various aluminum profiles, including common flat aluminum doors and windows, as well as special-shaped aluminum profiles. It can meet the production needs of different specifications and models of aluminum doors and windows, especially for projects requiring high precision of corner assembly and stable product quality, such as residential buildings, commercial buildings and industrial workshops. It effectively solves the pain points of low efficiency and poor precision in traditional manual assembly, and is an essential equipment for modern aluminum door and window intelligent production.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
HJN-CNC-300 |
Specifications:
|
Model |
LM4B-90*2200*3000 |
|
Power supply |
380V/50Hz |
|
Input power |
4Kw |
|
Air pressure |
0.6–0.8Mpa |
|
Air consumption |
0.2L/min |
|
Hydraulic pressure |
15Mpa |
|
Profile width |
90mm |
|
Min Frame |
550×550mm |
|
Max Frame |
2200×3000mm |
|
Pressure part move range |
0-50mm |
|
Dimension |
4700*2250*2900mm |
|
Weight |
2500kg |
Competitive Advantage:
1.High-efficiency and time-saving: It can complete four-corner punching connection at one time, and realize automatic adjustment of window size and automatic movement of pressing device, which greatly improves assembly efficiency and reduces manual operation time.
2.High precision and stable quality: Adopting imported high-quality CNC system and seamless connection between control system and servo system, combined with servo torque monitoring and automatic preloading function, the corner assembly accuracy and flatness of profiles are effectively guaranteed.
3.Strong adaptability: The corner knives can be easily adjusted back and forth to flexibly meet the assembly needs of different types of aluminum profiles, adapting to the diversified production demands of the industry.
4.Durable and reliable: The frame is made of high-quality steel through professional welding and aging treatment, which enhances the structural stability and service life of the machine, reducing maintenance costs.
5.Easy operation and low error: The hydraulic system adopts low-pressure feed and high-pressure corner assembly feed, which greatly reduces operating errors; the overall design is user-friendly, requiring no professional and skilled operators, reducing labor costs and operational thresholds.
