Description
1. The system platform adopts the WINDOWS operating system, featuring a user-friendly software interface that is easy to learn and operate. Testing software is also provided to enable machine performance and fault detection.
2. It supports simulated display without physical marking, allowing users to directly view the marking effect on the screen for what you see is what you get.
3. The printing content can be edited flexibly, with serial numbers automatically incremented and stored automatically, supporting storage of more than 600,000 files.
4. The system operates stably with a low risk of software crash, enabling 24-hour continuous operation.
5. Automatic memory function: the set parameters and serial numbers are automatically restored upon the next startup, allowing immediate operation without initialization. It also features automatic inspection and alarm functions.
6. The device supports printing of multiple fonts and adjustable printing lines.
7. The driver adopts a microstepping drive mode, ensuring smoother motor operation, better high-speed performance, more stable and smooth movement trajectories, and clearer, more attractive printed fonts.
8. The printing motion is supported by linear rolling guides. After printing, the system automatically checks the steps moved by the stepper motor, performs automatic calibration, and ensures accurate positioning for the next operation.
9. All moving parts of the device are self-lubricating, and the equipment is also corrosion-resistant and anti-static.
10. Cables are connected to the device using standard locking glands for easy operation.
11. The operating noise of the electrical system is ≤65dB.

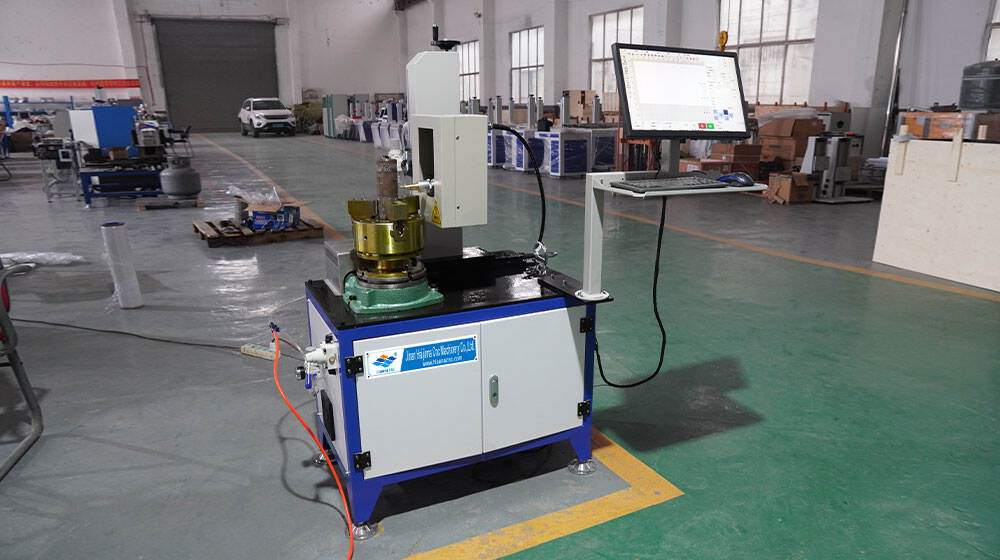

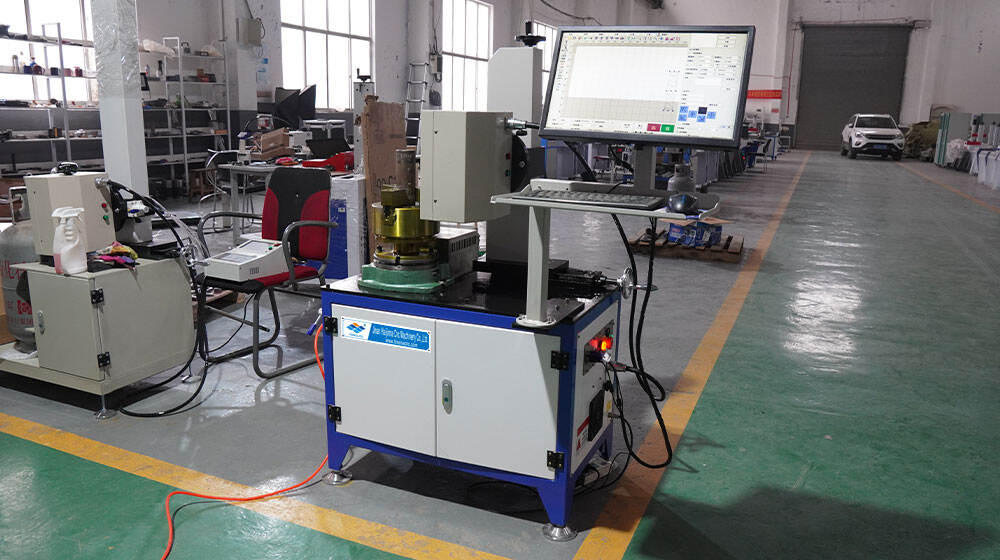

A. Control Cabinet:
The control unit mainly processes computer signals, performs vector conversion, and drives synchronous signals through a dedicated matched stepper motor driver. The core driver of the control unit features excellent high-speed performance, no noise, and high stability.

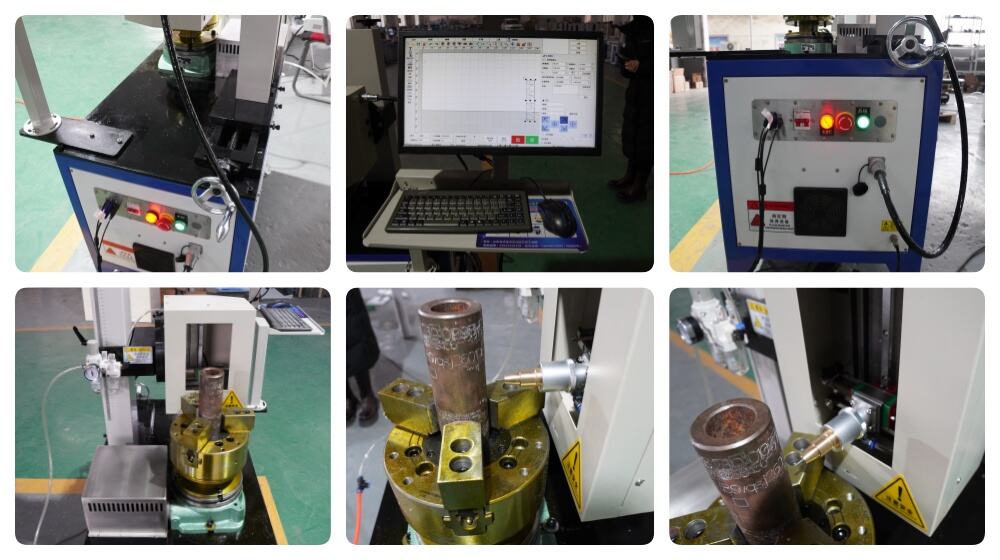

C. Marking Head:
The mechanical part mainly executes the stepping motion according to system programs. The linear guide has high load-bearing and high-torque capabilities. The slider body adopts an embedded design when combined with the frame, end covers, and sealing plates, eliminating the need for screw fixation and saving design space. A fully sealed dustproof structure is formed by thin bottom and end face seals, greatly reducing the ingress of contaminants.
Applications:
This marking and printing equipment is widely applied in the manufacturing industry, including metal profile processing, hardware production, electronic component manufacturing, and plastic product processing. It is suitable for workshops, batch production lines, and factories that require high-precision, continuous marking and printing. It can flexibly print serial numbers, text, and various fonts on products, supporting simulated preview and 24-hour continuous operation. It meets the marking needs of mass-produced products, ensuring clear, accurate marking and convenient management, and is an essential equipment for standardized product marking in modern manufacturing.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
LYQD-1508-GD |
Specifications:
|
Printing Speed |
1–4 characters per second |
|
Printing Direction |
Up, down, left, right and arc printing are all optional |
|
Printing Lines |
1–16 lines optional |
|
Printing Characters |
Character size and spacing are adjustable; character size ranges from 2–80 mm and can be larger |
|
Printing Content |
Chinese characters, digits 0–9, uppercase and lowercase English letters A–Z, serial numbers, QR codes, barcodes, common mathematical symbols, customized anti-counterfeiting patterns |
|
Printing Input |
Manual free input, reading data downloaded from upper computer or internal network data |
|
Font & Character Function |
Supports various fonts; characters can be rotated at any angle, allowing normal/inverted printing and reverse characters (normal when viewed from the back) |
|
Power Supply |
220V±15%, 50 Hz±3%, power consumption < 300W |
|
Operating Temperature |
-40℃ – +40℃ |
|
Operating Humidity |
≤ 90% |
|
Air Supply Pressure |
0.3–0.6 MPa |
|
Air Supply Quality |
No special requirements; the equipment can purify and dewater the air supply |
|
Repeatability Accuracy |
< 0.04 mm |
|
Print Needle Durability |
1,000,000 characters per needle |
Competitive Advantage:
1. User-Friendly & Stable Operation: Adopts WINDOWS operating system with an intuitive interface, easy to learn and operate; supports 24-hour continuous stable operation with low software crash risk, and is equipped with testing software for performance and fault detection.
2. Flexible & Efficient Marking: Print content is editable flexibly, with automatic serial number increment and automatic storage (supports over 600,000 files); supports multiple fonts and adjustable printing lines, matching diverse marking needs.
3. High-Precision & Smooth Marking: Adopts microstepping drive and linear rolling guides, with automatic step calibration, ensuring smooth motor operation, accurate positioning, and clear, attractive printed fonts.
4. Durable & Low-Maintenance: All moving parts are self-lubricating; the equipment is corrosion-resistant and anti-static; marking head has a fully sealed dustproof structure, reducing contamination and extending service life.
5. Convenient & Safe: Equipped with automatic memory, inspection and alarm functions; cables use standard locking glands for easy operation; electrical system operating noise ≤65dB, creating a comfortable and safe working environment.
