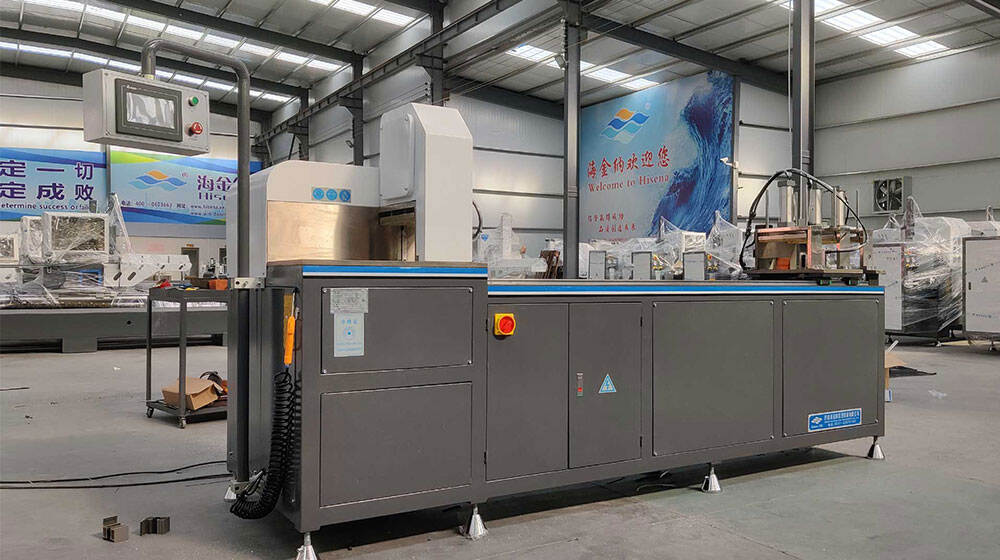

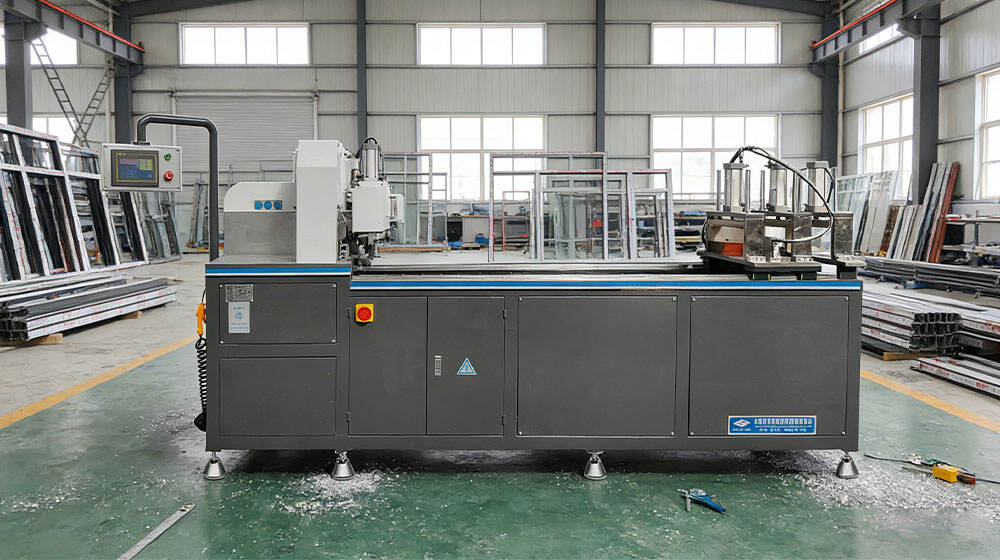

HJN-CNC-150 Auto-feed Aluminum Profile Cutting Saw Machine

• HJN-CNC-150 is an auto feed saw for cutting aluminum profile,such as the corner cleat extrusion,pipe or other industrial aluminum profile.

• Hydro-pneumatic saw feed.

• Servo controlled profile feed.

• 90 degree cutting.

• Cutting width is in large size and also customized.

• Touch screen LCD monitor.

• Variable cutting length can be set.

• Support secondary feed.

• Non-waste design.

Applications:

HJN-CNC-150 is an auto feed saw specially designed for cutting aluminum profiles, including corner cleat extrusions, pipes and other industrial aluminum profiles. It is widely applied in industrial aluminum processing factories, door and window supporting processing workshops, aluminum pipe manufacturing enterprises and corner cleat production plants. Suitable for 90-degree cutting of various industrial aluminum profiles, it meets the high-efficiency, high-precision cutting needs of batch production and customized processing, and is ideal for cutting aluminum components used in door and window assembly, industrial equipment and pipeline fitting.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	HJN-CNC-150

Specifications:

Model	HJN-CNC-150
Power supply	380V 50Hz
Motor power	3Kw
Rotation speed	2840rpm
Cutting angle	90°
Maximum cutting width	300mm
Maximum cutting height	150mm
Feed stroke	300mm (or to order)
Dimension	150015001600mm
Weight	500kg

Competitive Advantage:

1. High-Precision Servo Feed: Servo controlled profile feed ensures stable and accurate feeding, matching hydro-pneumatic saw feed to guarantee uniform 90-degree cutting precision and reduce profile waste.

2. Flexible & Customizable Cutting: Supports variable cutting length setting and secondary feed, with large and customizable cutting width, adapting to different specifications of aluminum profiles and diverse processing needs.

3. Cost-Saving Non-Waste Design: Adopts non-waste cutting design, maximizing material utilization and reducing production costs for batch processing.

4. User-Friendly Operation: Equipped with LCD touch screen monitor, enabling intuitive parameter setting and simple operation, reducing training cost and lowering operation threshold.

5. Efficient Stable Cutting: Hydro-pneumatic saw feed ensures smooth cutting, matching servo control to realize efficient continuous cutting, suitable for long-term batch production of industrial aluminum profiles.
