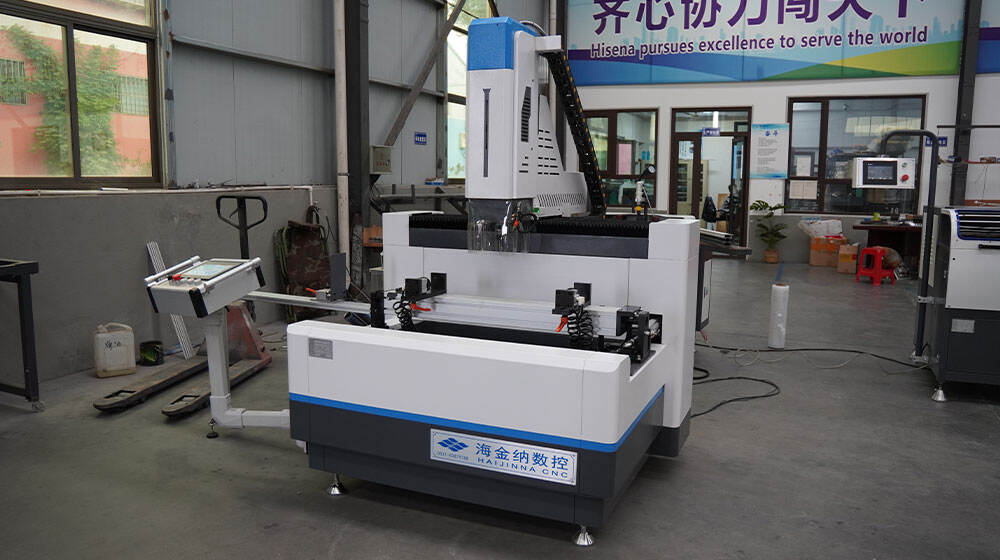

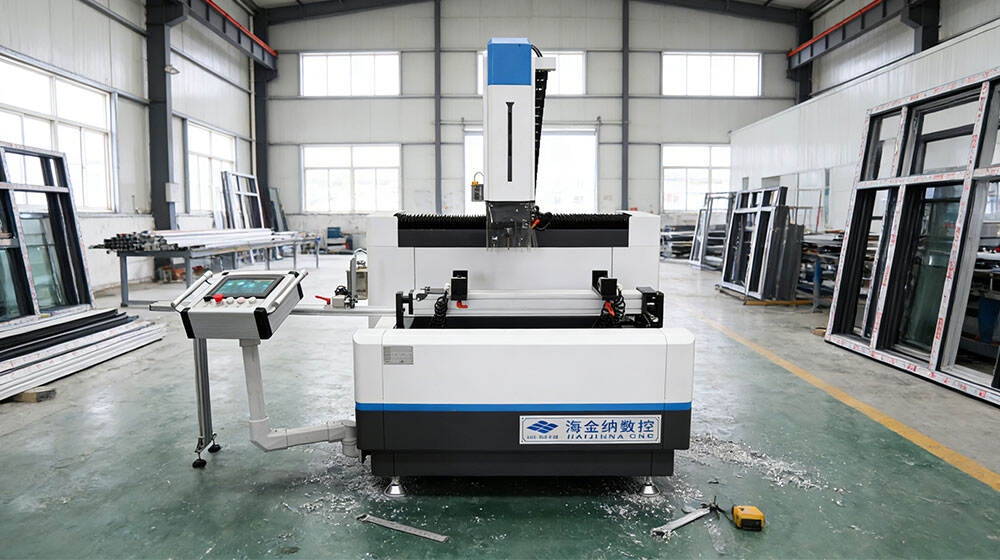

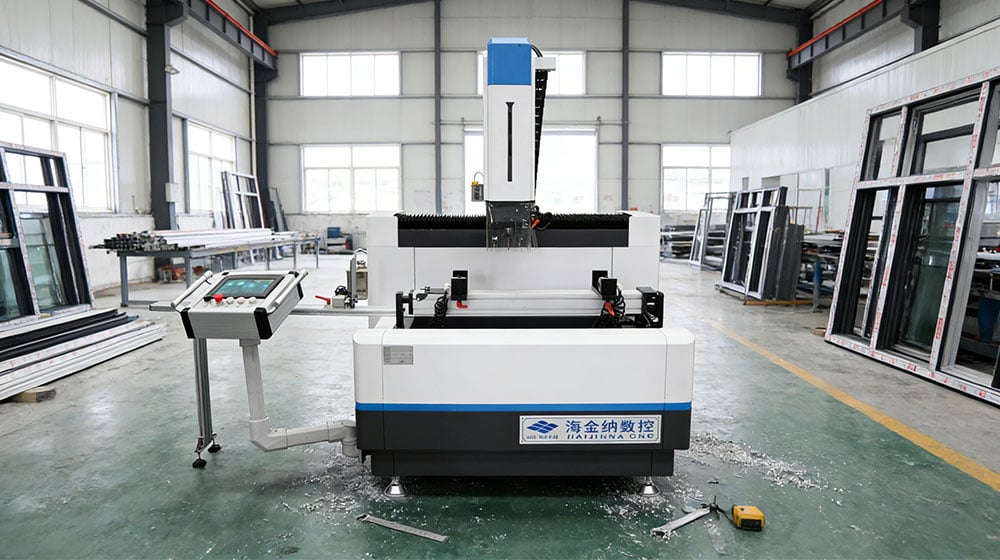

HJN-800 3 Axis CNC Copy Router

• HJN-800 is a 3-axis CNC copy router which is used for automatic processing of lock hole and slot,water drain slots and hinge holes on pvc and aluminum windows and doors.

• Applicable material:pvc,aluminum profile

• X,Y,Z three axis with servo-feed,fully automatic processing.

• Programming is easy,graphics library for selecting the appropriate hole type and setting the size.

• Equipped with hand-operated pulse generator.

• The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.

• Automatic coolant spraying.

Applications:

HJN-800 is a 3-axis CNC copy router, specially used for automatic processing of lock holes, slots, water drain slots and hinge holes on PVC and aluminum windows and doors. Applicable to PVC and aluminum profiles, it is widely applied in professional door and window manufacturing factories, small and medium-sized profile processing workshops and customized door and window processing stations. It is ideal for high-precision machining of functional holes and slots on PVC/aluminum windows and doors, meeting batch production and small-batch customization needs, and adapting to mainstream door and window processing scenarios with simple operation and stable performance.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	HJN-800

Specifications:

Model	HJN-800
Power supply	380v/50hz
Air pressure	0.5-0.8mpa
Total power	5.75kw
Spindle motor power	3.5kw
Servo motor power	3*750w
Rotation speed	18000r/min
X-axis stroke	800mm
Y-axis stroke	300mm
Z-axis stroke	280mm
Processing range	100*120mm
X-axis feed rate	0-60m/min
Y,Z-axis feed tate	0-15m/min
Collet	ER20
Dimension	160015001950mm
Weight	610Kg

Competitive Advantage:

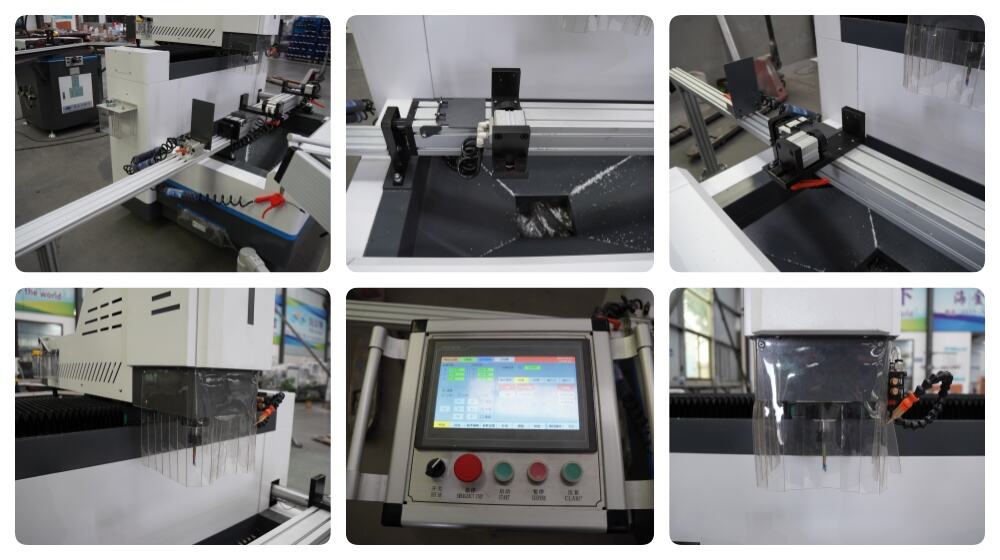

1. Fully Automatic Precision Processing: X, Y, Z three axes with servo-feed, realizing fully automatic processing of door and window holes and slots, reducing manual intervention and ensuring consistent machining precision.

2. Simple & Efficient Programming: Easy programming with a built-in graphics library, allowing quick selection of appropriate hole types and size setting, lowering operation threshold for workers.

3. Convenient Multi-side Machining: Worktable can be turned over on three sides (0°, 90°, -90°), facilitating multi-side processing of profiles and perfectly matching diverse hole/slot positions on windows and doors.

4. Flexible Operation: Equipped with a hand-operated pulse generator, enabling manual fine-tuning when needed, adapting to special processing requirements and improving operation flexibility.

5. Stable & Durable: Equipped with automatic coolant spraying, effectively reducing tool wear, ensuring long-term stable operation and extending equipment service life.
