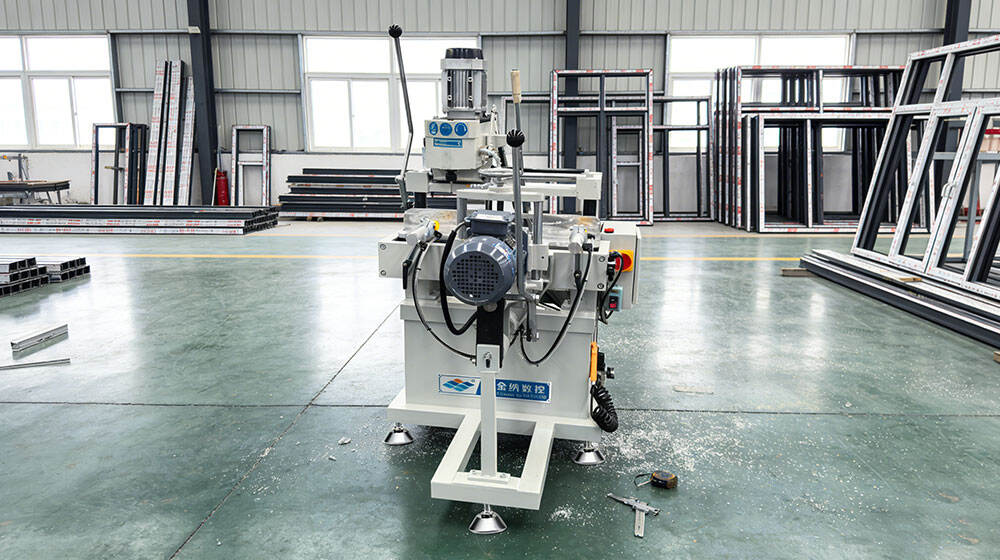

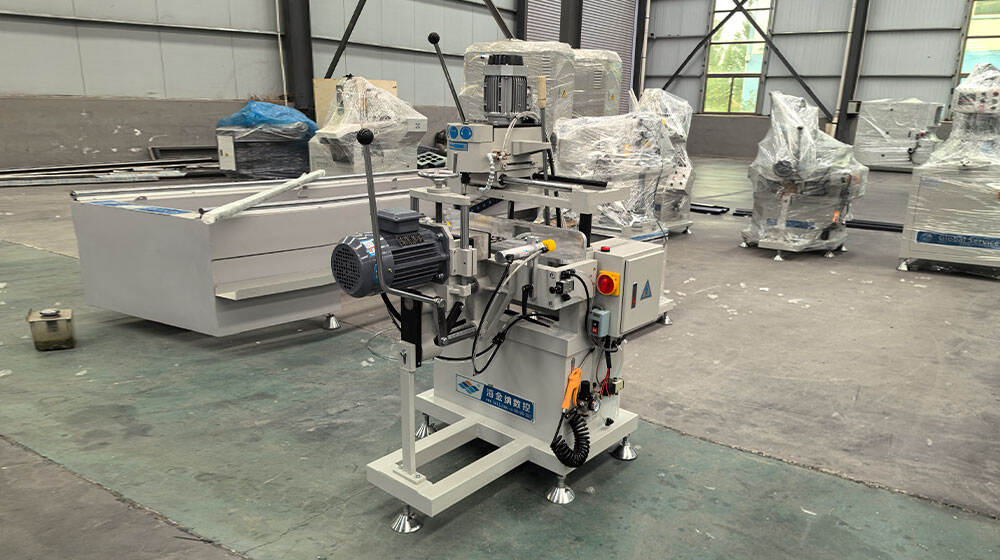

HJN-100 Copy Router with Triple Drilling

The plastic door and window lock hole and groove processing machine is used for machining mounting holes and grooves of various types of locks on different profiles. This machine features a compact structure, small size, pneumatic clamping of profiles, high efficiency, simple and safe operation.

1. It is suitable for high-efficiency milling of lock holes, grooves and mounting holes of plastic-steel doors and windows.

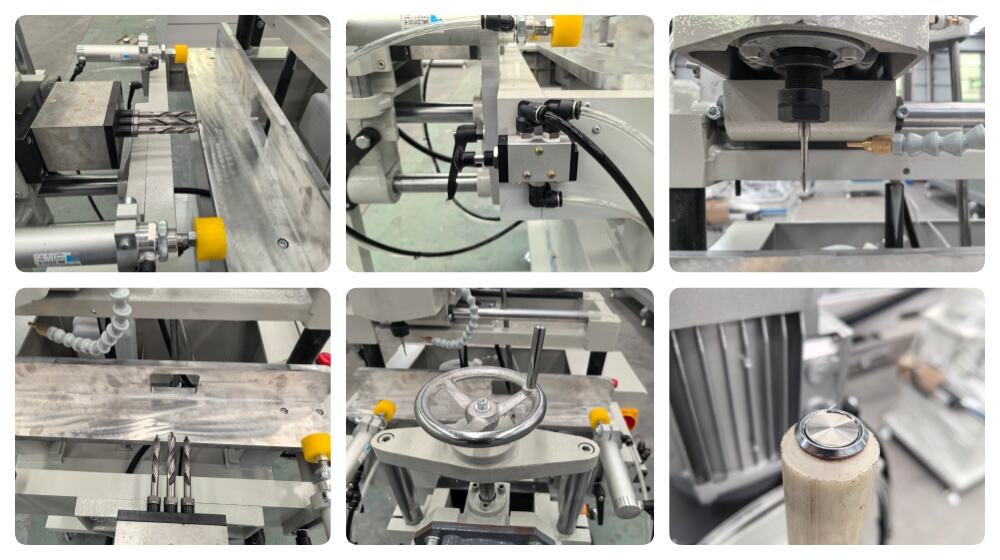

2. The equipment consists of three horizontal drilling heads and a vertical profiling milling unit for special-shaped mounting holes, enabling two operations to be completed with one clamping.

3. The feed of all drill bits is manual to control the feed speed. The feed depth is adjustable and fixable to meet the requirements of different profiles.

4. For the vertical profiling milling part, templates can be customized according to customer requirements.

Applications:

This machine is a dedicated processing equipment for plastic door and window industry, mainly used for machining mounting holes, lock holes and grooves of various locks on different plastic-steel door and window profiles. It is widely applied in professional plastic-steel door and window manufacturing factories, small and medium-sized profile processing workshops, and door and window accessory processing stations. Suitable for high-efficiency milling of lock-related holes and grooves, it meets the batch processing and customized processing needs of plastic-steel doors and windows, ensuring the accuracy of lock installation and improving the assembly efficiency of door and window products, which is an essential equipment for plastic-steel door and window accessory processing.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	HJN-100

Specifications:

Model	HJN-100
Power supply	AC 380V 50Hz
Motor power	1.85kw
Air pressure	0.5-0.8mpa
Air consumption	30L/min
Rotation rate of drilling unit	960rpm
Rotation rate of routing unit	2800rpm
Drilling bits	2Ø8mm+Ø10mm or 2Ø10mm+Ø12mm
End mills	Ø5mm/Ø8mm
Overall Dimension	100011301500mm
Weight	195kg
Model	HJN-100
Power supply	AC 380V 50Hz

Competitive Advantage:

1. Specialized Lock Processing: Dedicated to machining lock holes, grooves and mounting holes for plastic-steel doors and windows, perfectly matching the professional processing needs of door and window lock accessories, ensuring the fitting accuracy of locks and profiles.

2. Efficient Integrated Processing: Equipped with three horizontal drilling heads and one vertical profiling milling unit, realizing two processing operations with one clamping, greatly improving processing efficiency and reducing manual operation steps.

3. Flexible Feed Adjustment: The feed of all drill bits is manually controlled, with adjustable and fixable feed depth, which can flexibly meet the processing requirements of different plastic-steel profiles.

4. Customizable Profiling Milling: For the vertical profiling milling part, templates can be customized according to customer requirements, adapting to the processing needs of different types of special-shaped mounting holes.

5. Compact & User-Friendly: Features compact structure and small size, easy to place in workshops; adopts pneumatic profile clamping, with simple and safe operation, low labor intensity and easy maintenance.
