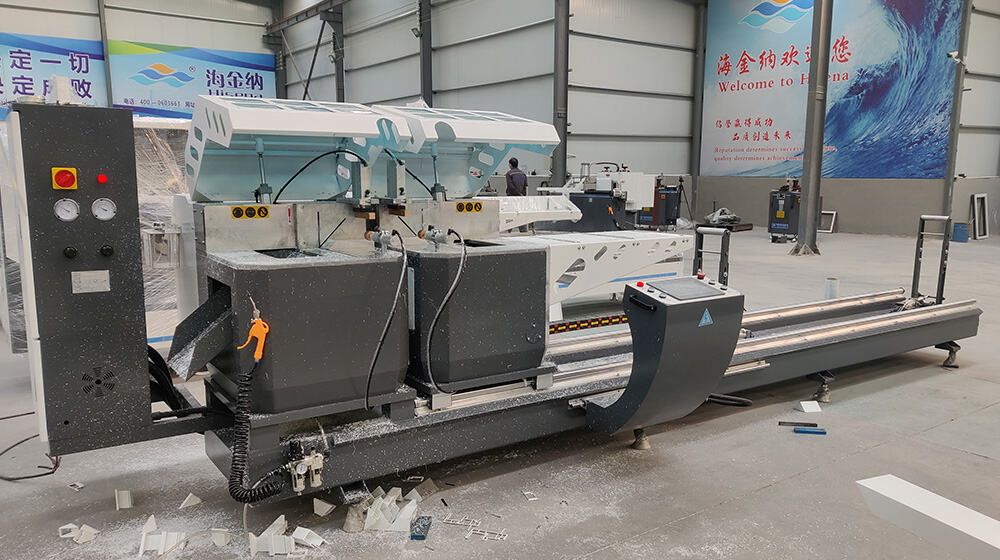

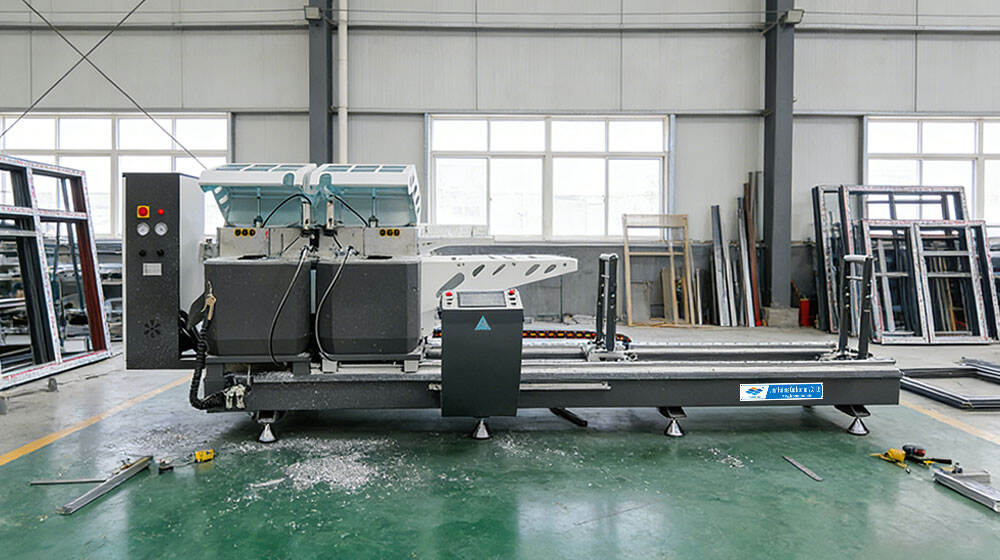

LJB3A-500×4200 CNC Double Head Upcut Saw
LJB3A-500*4200 is a fully automatic double head upcut saw for 90 degree and 45 degree cutting, used for the production of aluminum and PVC windows and doors. The cutting angle, length and quantity can be set through HMI and executed automatically.
Applications:
LJB3A-500*4200 is a fully automatic double head upcut saw, specially used for 90° and 45° cutting in the production of aluminum and PVC windows and doors. It supports setting cutting angle, length and quantity via HMI for automatic execution, with a large cutting width enabling multi-profiles cutting simultaneously. It is widely applied in professional aluminum and PVC door and window manufacturing factories, large-scale profile processing workshops and door and window supporting production lines, meeting the high-efficiency, high-precision batch cutting needs of door and window frames and sashes, and is an essential equipment for intelligent door and window production.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
LJB3A-500×4200 |
Specifications:
|
Model |
LJB3A-500*4200 |
|
Power supply |
380V 50Hz |
|
Motor power |
2*2.2KW |
|
Servo motor power |
0.75kw |
|
Air pressure |
0.6-0.8Mpa |
|
Air consumption |
200L /min |
|
Rotation rate |
2840rpm |
|
Cutting length |
420(320)-42000mm |
|
Blade size |
Ø500mm |
|
Cutting angle |
90 °/45 ° |
|
Cutting W x H |
230*100mm，250*90mm(45 deg) |
|
Repeatability |
≤0.2mm |
|
Angle tolerance |
±5′ |
|
Plane of cutting surface |
≤0.10 |
|
Cutting profile surface roughness |
Ra12.5um |
|
Size: (width × high × long) |
5900mm*1750mm*1800mm |
|
Weight: |
1800Kg |
Competitive Advantage:
1. High-Efficiency Multi-Profile Cutting: Large cutting width allows simultaneous cutting of multiple aluminum and PVC profiles, matched with fully automatic operation (HMI parameter setting + automatic execution), greatly improving batch production efficiency.
2. Precise & Durable Feeding System: Adopts imported linear guide pair, servo motor and reducer for feeding, with high positioning accuracy, stable operation and long service life; right head feeds automatically to the set cutting length, ensuring consistent cutting size.
3. High-Quality & Stable Cutting: Equipped with high-precision main spindle (ensuring smooth saw blade rotation) and imported carbide saw blade, realizing accurate cutting, high processing quality and strong saw blade durability.
4. Smooth & Stable Processing: Imported linear bearing motion pair and airdraulic damping cylinder ensure uniform feeding speed and smooth motion, avoiding cutting errors and improving processing stability.
5. Safe & User-Friendly Operation: Fully automatic operation with HMI parameter setting, simple and efficient; auto-opening guard shield ensures safe operation, reducing potential operational risks and lowering labor intensity.

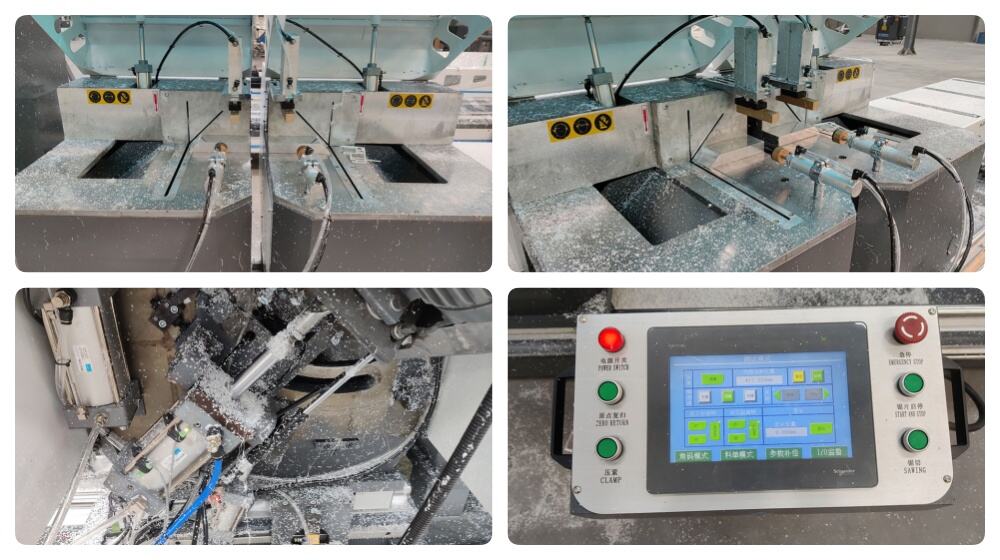

Main Features:
1. Used for cutting pvc and aluminum profiles.
2. Cutting width is very large ,can realize multi-profiles cutting at the same time.
3. Feeding system adopts imported linear guide pair, with high accuracy and long service life.The right head can feed to the set cutting length automatically.Feeding is by servo motor and reducer
4. 45°and 90° cutting is available.
5. Saw blade rotate smoothly due to high accuracy main spindle.
6. Imported carbide saw blade give accurate processing and high endurance.
7. Imported linear bearing motion pair ensured steady processing accuracy.
8. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
9. Auto-opening guard shield ensured safety operation.
