LYA series Hydraulic punching machine
• Human-machine interface: Embedded ARM9 industrial control platform, full-screen touch control
• Display system: 7-inch touch screen (industrial grade)
• Drive control card: ARM+STM32 dual-processor
• Stepping motor driver: Fully digital drive, noiseless operation, extremely smooth marking effect, automatic half-current control
• Stepping motor: High-quality domestic product (Features: low noise, large torque, low heat generation)
• Transmission mechanism: High precision, low operating noise, fully enclosed
• Electromagnetic marking assembly: Unique linear marking machine technology
• Printing pin: High-quality composite material.

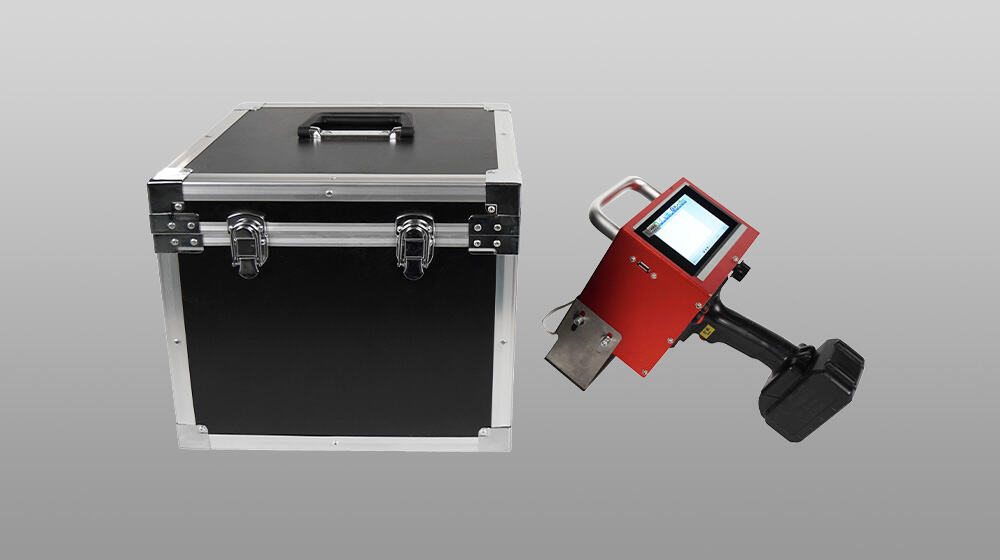

• Suitable for mobile marking applications, integrated design for enhanced convenience.
Applications:
This electromagnetic marking machine is widely applied in manufacturing industries such as metal processing, hardware production, auto parts, and mechanical equipment. It is suitable for mobile marking scenarios, including on-site marking of large workpieces, batch product marking in workshops, and outdoor emergency marking. With integrated design and portable performance, it is ideal for small and medium-sized enterprises, mobile processing teams, and workshops needing flexible marking. It meets the high-precision, low-noise marking needs of various metal and non-metal workpieces, providing convenient and stable marking solutions for production and processing.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
LYA Series |
Specifications:
|
Model |
LYD-5200L-ZL |
|
Printing Area |
90×30 mm |
|
Gross Weight |
6 kg |
|
Fixing Method |
Handheld |
|
Printing Depth |
0.01–1.0 mm adjustable (depending on material) |
|
Printing Speed |
5–100 characters per minute |
|
Printing Direction |
Up, down, left, right printing are all optional |
|
Printing Characters |
Character size and spacing are flexibly adjustable |
|
Printing Content |
Chinese characters, digits 0–9, letters A–Z, graphics, common graphic symbols, etc. |
|
Applicable Workpieces |
Metal parts such as copper, aluminum, iron, stainless steel, etc. |
|
Input Method |
Touch screen input, external keyboard & mouse input |
|
Functions |
Supports automatic serial number printing, VIN standard printing, time printing, barcode scanning printing, and automatic storage of printing content for traceability |
|
Lithium Battery Voltage |
21V±10% |
|
Battery Charger Input Voltage |
220V±10% |
|
Lithium Battery Life |
4 hours (under laboratory conditions) |
|
Repeat Accuracy |
< 0.1 mm |
|
Impact Frequency |
≥ 300 Hz |
Competitive Advantage:
1. User-Friendly Operation: Adopts embedded ARM9 industrial control platform with 7-inch industrial-grade full-screen touch screen, enabling intuitive and simple operation, reducing the operation threshold for workers.
2. Stable & High-Precision Control: Equipped with ARM+STM32 dual-processor drive control card and fully digital stepping motor driver, ensuring noiseless operation, smooth marking effect and automatic half-current control.
3. Reliable Core Components: Uses high-quality domestic stepping motor (low noise, large torque, low heat) and high-quality composite material printing pin, ensuring long-term stable operation and durable use.
4. Portable & Convenient: Integrated design, suitable for mobile marking applications, flexible to use in on-site, outdoor and other scenarios, greatly improving marking convenience and adaptability.
5. Quiet & Precise Transmission: High-precision fully enclosed transmission mechanism, featuring low operating noise and stable transmission, matching the unique linear marking technology to ensure clear and accurate marking results.
