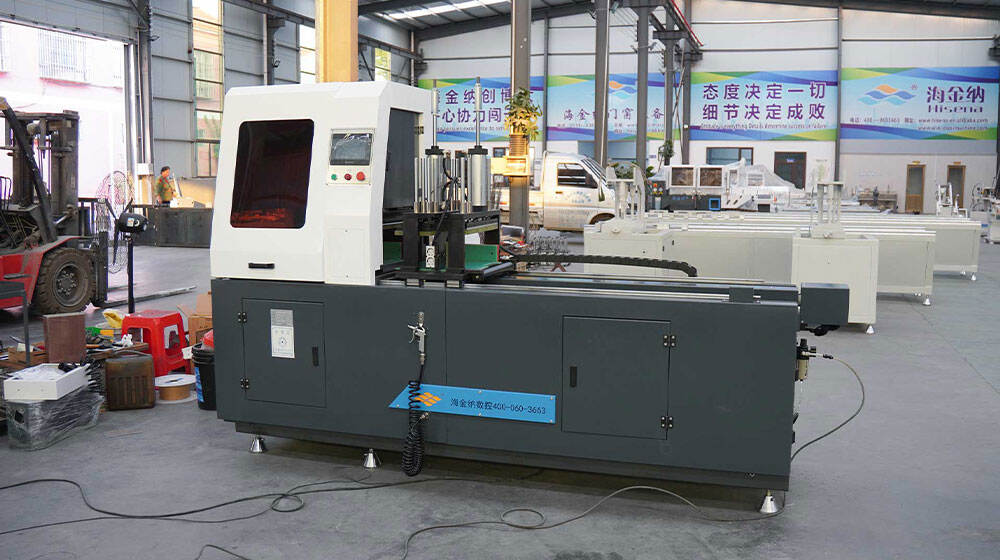

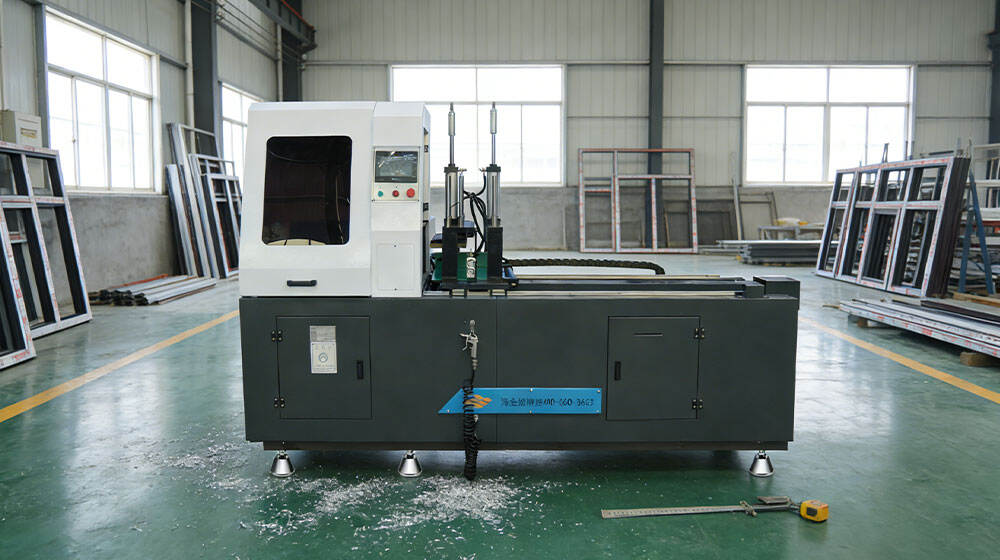

LJZS-500NW None Waste Fully Automatic Aluminum Profile Cutting Machine

LJZS-500NW is an auto feed saw for cutting aluminum profile,such as the corner cleat extrusion,pipe or other industrial aluminum profile.This machine isby servo controlled ball screw way to drive saw blade, servo motor driven ball screw feeding way, and cylinder clamping material. Advantages for this machine are none-waste profile design, smooth and flat cutting, easy and quick operation, easy maintenance, etc. It is the best choice for copper and aluminum profile precision cutting.

Applications:

LJZS-500NW is a professional auto feed saw in the aluminum profile processing industry, specially designed for cutting aluminum profiles such as corner cleat extrusions, pipes and other industrial aluminum profiles. It is widely applied in industrial aluminum profile processing factories, aluminum corner cleat production workshops, and industrial aluminum product manufacturing enterprises. Featuring 90° cutting, large and customizable cutting width, it meets the high-precision, high-efficiency cutting needs of batch production of aluminum profiles. Its non-waste design and flexible cutting length setting make it an ideal equipment for precision cutting of copper and aluminum profiles.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	LJZS-500NW

Specifications:

Model	LJZS-500NW
Air pressure	0.6-0.8Mpa
Air consumption	100L/min
Power supply	380V 50Hz
Motor power	8.5kw
Rotation speed	50HZ,1450-2800rpm/frequency-variable
Cutting angle	90°，angle tolerance 0-0.2 degrees
Blade size	Ø500*25.4mm /optional
Maximum cutting width	420mm
Maximum cutting height	150mm
Single feed stroke	1200mm (or to order)
Finished product accuracy	Profile width <400mm,vertical accuracy土 0.2mm
Cutting accuracy	20mm<finished length<700mm, height<100mm, length accuracy±0.1mm; 700mm＜finished length＜1400mm，height＜200mm,length accuracy±0.15mm； 1400mm＜finished length＜2000mm ,height＜250mmlength accuracy ±0.2mm
Dimension	188018503200mm
Weight	2400kg

Competitive Advantage:

1. Non-Waste Profile Design: Adopts non-waste design, effectively reducing aluminum profile material waste, lowering production costs and improving material utilization rate for batch processing.

2. High-Precision Servo Drive: Equipped with servo controlled ball screw to drive the saw blade and feed the profile, matched with hydro-pneumatic saw feed, ensuring smooth, flat cutting and high dimensional accuracy.

3. Flexible Cutting Adaptability: Large cutting width with customization option; variable cutting length can be set freely, and secondary feed is supported, adapting to different specifications of aluminum profiles and cutting requirements.

4. Convenient & Easy to Maintain: Equipped with touch screen LCD monitor for simple and quick operation; the machine features simple structure, easy maintenance, reducing downtime and improving production efficiency.

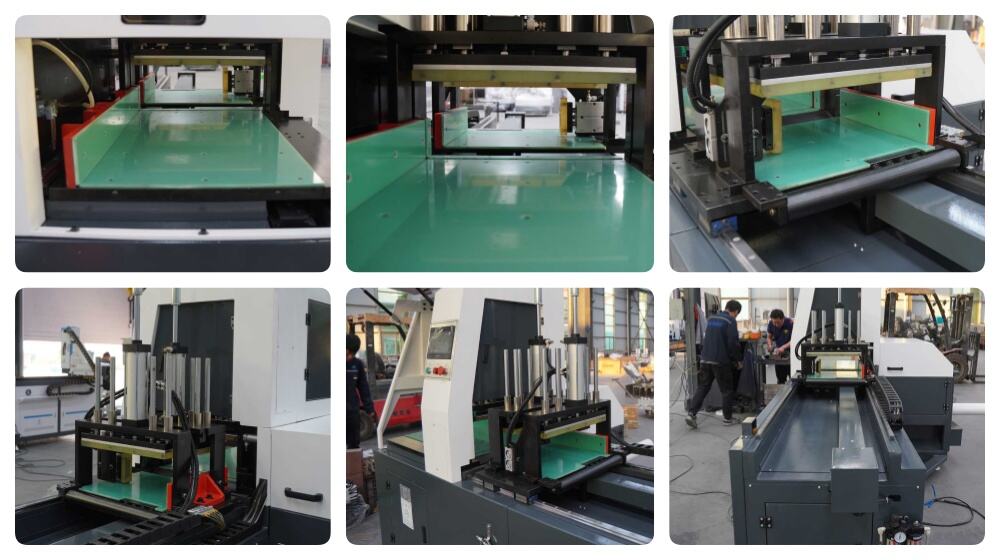

5. Stable & Reliable Processing: Cylinder clamping ensures firm fixing of materials during cutting, avoiding displacement and ensuring consistent cutting quality; it is a preferred choice for precision cutting of copper and aluminum profiles.
