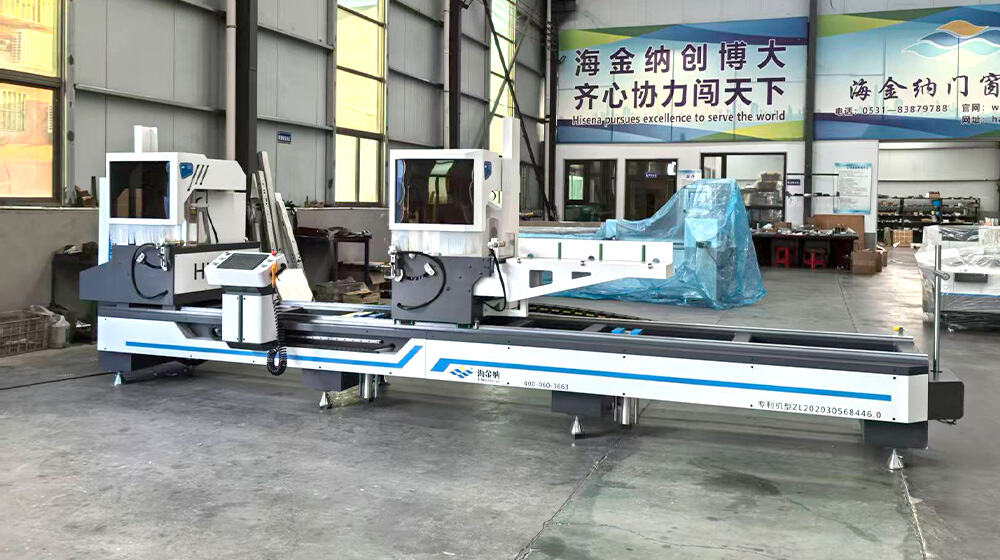

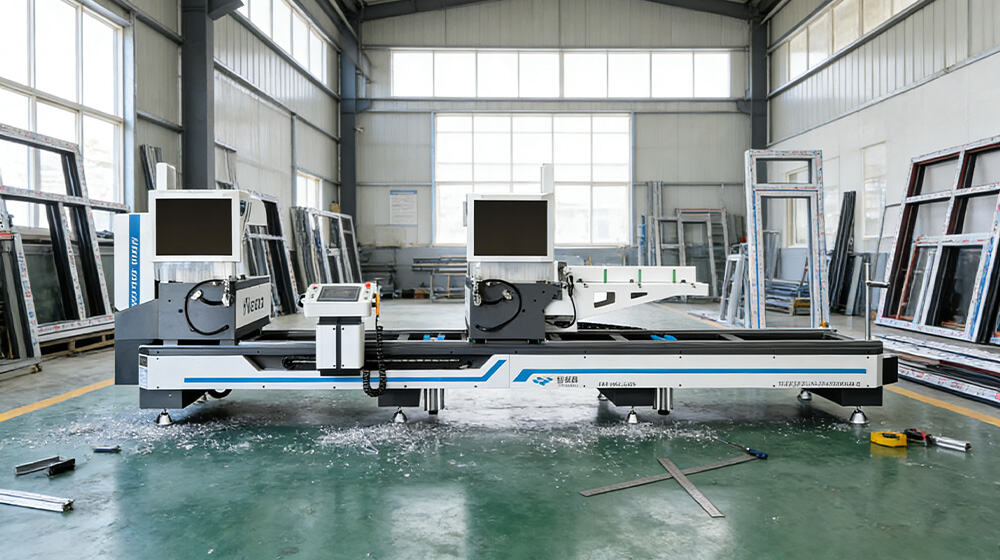

HJN4A-500x4400 CNC double head cutting machine

This machine is designed for 90° and 45° cutting of aluminum and PVC profiles, widely used in aluminum and PVC window and door production.Cutting angle, length and quantity can be set via HMI and executed automatically.It adopts a curved saw feeding structure instead of the traditional linear feeding system, which ensures higher cutting speed and lower blade wear.

This machine is designed for 90° and 45° cutting of aluminum and PVC profiles, widely used in aluminum and PVC window and door production.Cutting angle, length and quantity can be set via HMI and executed automatically.I adopts a curved saw feeding structure instead of the traditional linear feeding system, which ensures higher cutting speed and lower blade wear.

Applications:

This machine is widely applied in the production of aluminum and PVC windows, doors, curtain walls, and other architectural profiles. It is also suitable for processing industrial aluminum profiles used in transportation, electronics, and furniture manufacturing, meeting the high-precision cutting requirements of various profile processing enterprises.

Product General Information:

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	HJN4A-500x4400

Specifications:

Model	HJN4A -500*4400	Cutting angle	90°/45°
Power supply	380v/50hz	Cutting length	249-8800mm
Motor power	2*3kw	Max.cutting width	150mm
Input power	7.5kw	Repeatability	≤0.2mm
Air pressure	0.5-0.8Mpa	Angle tolerance	±5′
Air consumption	200L /min	Flatness	≤0.05mm
Rotational speed	2800rpm	Cutting surface roughness	Ra12.5um
Feed rate	0-20000mm/min	Overall dimension	5800x1500x1800mm
Blade size	Ø500Ø304.4mm*140T	Weight	2000kg

Competitive Advantage:

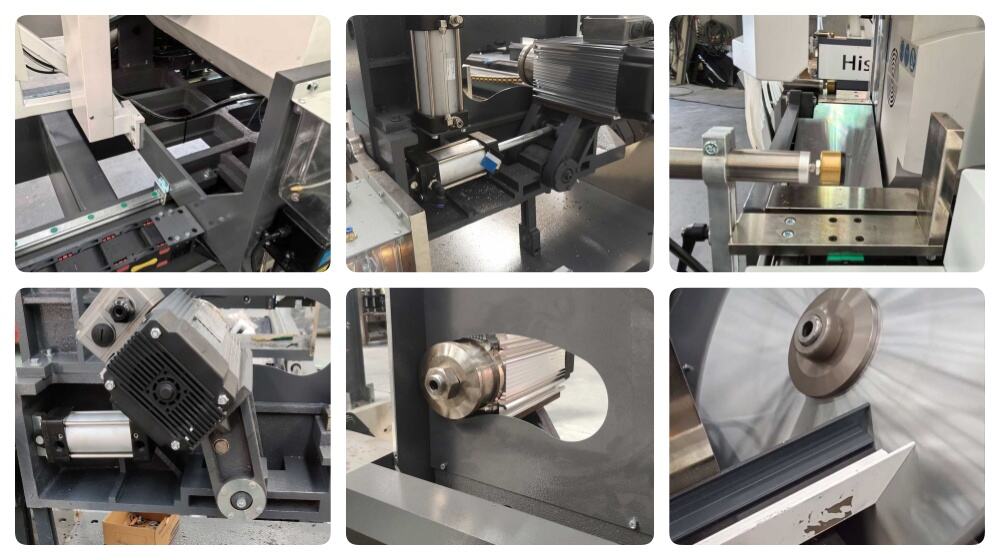

• Efficient Curved Saw Feeding System: Adopts a curved saw feeding structure instead of the traditional linear feeding system, which significantly improves cutting speed by over 30% compared with similar models, while effectively reducing blade wear and extending tool life.

• High-recision Automatic Control: Cutting angle, length, and quantity can be directly set via the HMI touchscreen, with fully automatic execution, eliminating manual measurement errors and ensuring consistent cutting accuracy within ±0.1mm.

• Versatile Cutting Capability: Supports 90° and 45° cutting of aluminum and PVC profiles, meeting the diverse processing needs of window and door production, with flexible adjustment for different profile sizes and batch requirements.

• Stable and Durable Structure: The machine body is made of high-strength steel with an integral welding process, ensuring stable operation under long-term heavy load, reducing vibration during cutting, and maintaining machining accuracy for a long time.

• User-riendly Operation & Maintenance: The intuitive HMI interface simplifies operation, and the modular design facilitates daily maintenance and component replacement, lowering the technical threshold for operators and reducing downtime.
