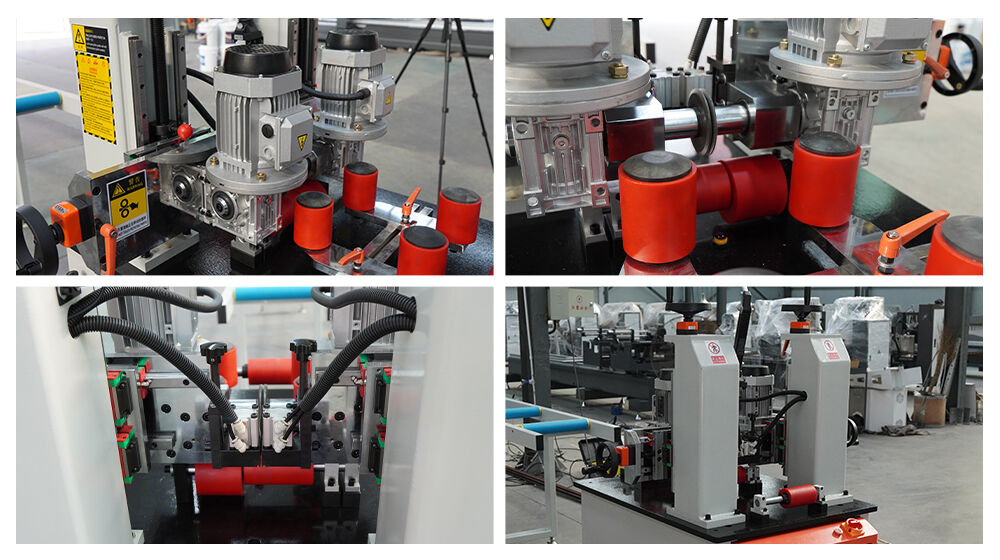

Knurling & Strip Feeder Machine

This machine performs knurling on the inner wall of the profile slot for thermal insulation strip installation, to enhance the bonding friction between broken-bridge aluminum profiles and insulation strips. With a dedicated pneumatic clamping system, it supports one-stop knurling, strip threading and film laminating at the same time.
• Multi-dimensional handwheel adjustment: bidirectional column adjustment, four-way transverse adjustment, fixture height adjustment and cutter head spacing adjustment, fully compatible with all profile specifications
• Intelligent induction function: automatic strip clamping & releasing, perfectly adapting to special-shaped profiles, high-low step profiles and misaligned structures
• One-pass processing: knurling and strip threading completed synchronously, greatly cutting labor costs and boosting production efficiency

Applications

• Specialized for knurling and thermal insulation strip threading of broken-bridge heat-insulation aluminum profiles for energy-saving doors, windows and building curtain walls
• Ideal equipment for aluminum profile manufacturers, door & window processing factories, and architectural aluminum profile deep-processing plants
• Fully adapts to standard profiles, special-shaped profiles, high-low step profiles and misaligned structural profiles
• Supports both stand-alone operation and seamless integration into automated broken-bridge aluminum profile production lines
• Compatible with 0-50mm width thermal insulation strips, meeting diversified customized processing demands

Product General Information

Place of Origin:	Jinan, Shandong, China
Brand Name:	Hisena CNC
Model Number:	TKC-01

Specifications

Power supply	380V/50Hz
Total power	1.5kW
Adjustment range of gear cutter	Horizontal (Width): 10-200mmVertical (Height): 0-200mm
Adjustment range of heat insulation strip	0-50mm
Positioning accuracy	±0.05mm
Profile feeding speed	6-60m/min
Overall dimension	1200×1100×1550mm
Total weight	Approx. 360kg

Core Selling Points

1.High-Efficiency One-Pass Processing: Knurling and strip threading completed synchronously, significantly cutting labor costs and boosting production efficiency
2.Full Profile Compatibility: Multi-dimensional handwheel adjustment, with 10-200mm horizontal & 0-200mm vertical gear cutter adjustment range, fits all types of aluminum profiles
3.Intelligent Stable Clamping: Dedicated pneumatic clamping system with automatic induction strip clamping & releasing, ensures reliable processing for complex special-shaped profiles
4.High-Precision Performance: ±0.05mm positioning accuracy, 6-60m/min stepless adjustable feeding speed, adapts to both mass production and high-precision customized processing
5.User-Friendly Design: Compact structure, simple operation, convenient adjustment and maintenance, supports long-term stable continuous batch production
