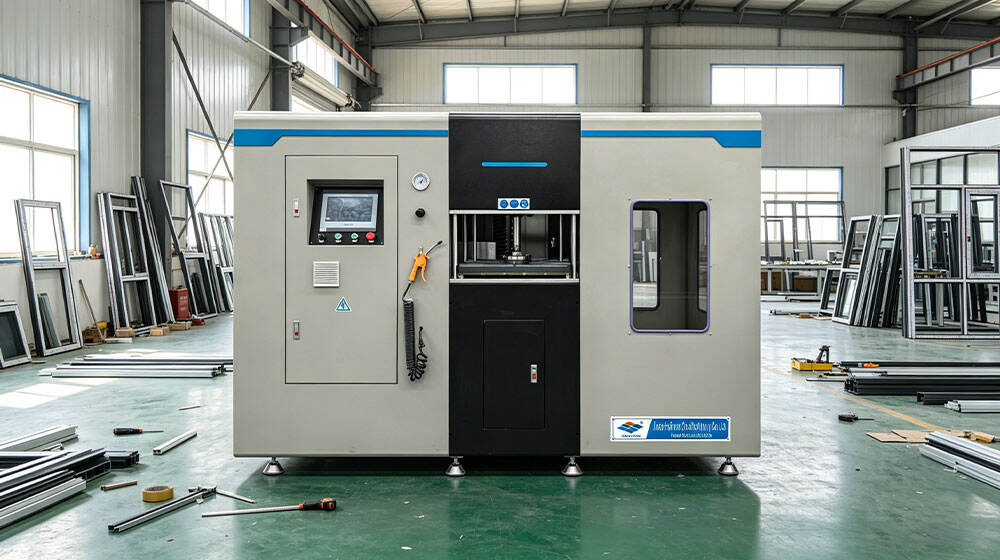

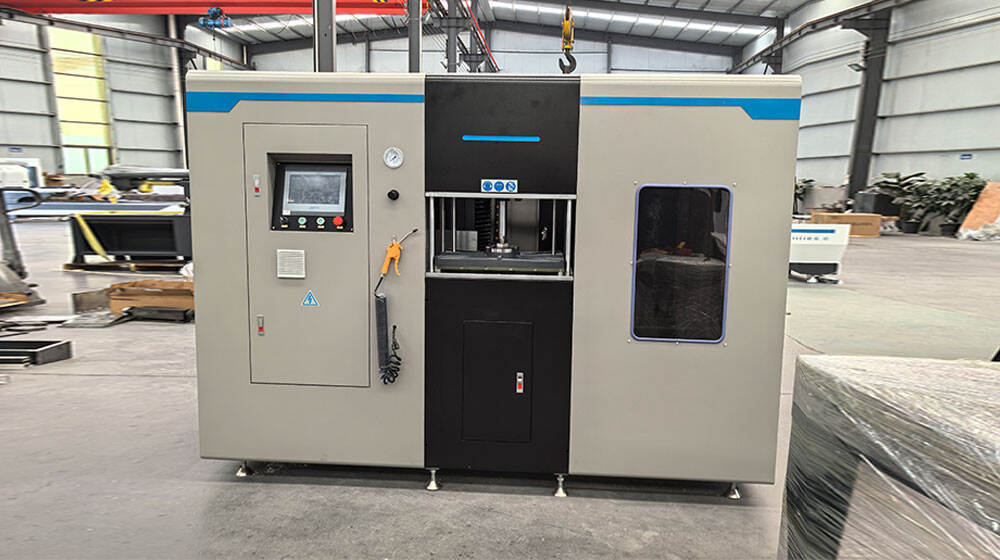

HJN-CNC-300 3 Axis CNC End Milling Machine
• This machine is widely used in the CNC intelligent optimization of end milling of aluminum windows and doors and various light industrial aluminum profiles.

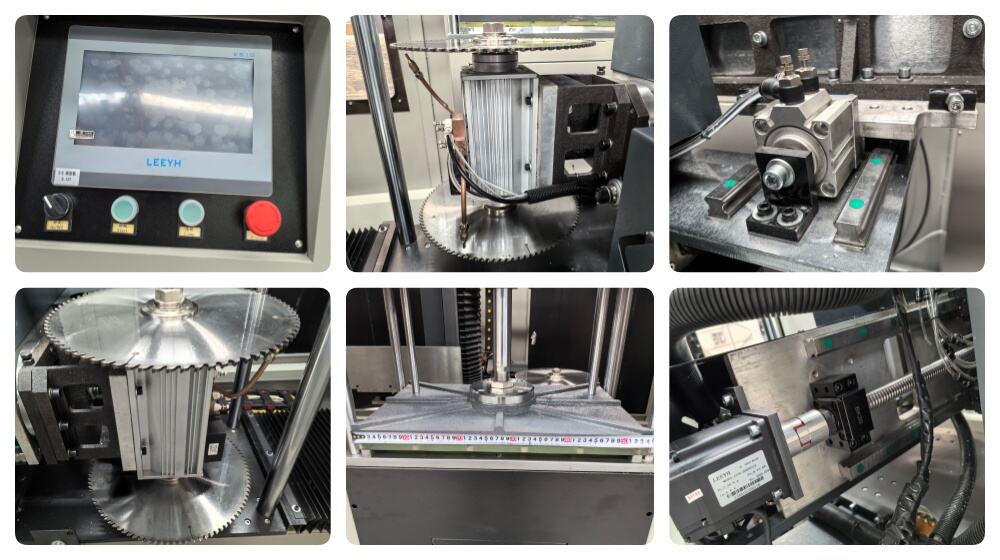

• This machine has X,Y and Z total 3 axes,servo feeding ensures the accuracy milling depth,height and width. The spindle can work in both vertical and horizontal planes by rotating, which is more efficient for large-size tenon processing.
• The machine body is all welded with industrial rectangular tube profiles, and after welding, it undergoes professional and effective treatment to remove internal stress. After professional precision machining by numerical control equipment, the accuracy of the entire machine operation and the stability of the speed are ensured.
• High-rigidity, high-precision spindle: air-cooled spindle motor.
• It adopts TAIWAN HIWIN guide rail and rack, high-strength ball screw which ensure high feeding accuracy and stability.
• The PLC can memorize multiple sets of programs, transfer the programs according to the profile, and directly process them.
Applications:
This machine is widely used for CNC intelligent optimized end milling of aluminum windows and doors as well as various light industrial aluminum profiles. It is specially designed for end face processing and large-size tenon milling of aluminum profiles, and widely applied in professional aluminum window and door manufacturing plants, light industrial aluminum profile processing workshops, curtain wall profile supporting factories and customized aluminum profile processing stations. It satisfies high-precision end milling requirements for mass production and customized processing, and provides stable, intelligent and efficient machining solutions for standard and special aluminum profile end forming in the construction and light industrial aluminum sectors.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
HJN-CNC-300 |
Specifications:
|
Model |
HJN-CNC-300 |
X-axis stroke |
800mm |
|
Power supply |
AC 380V 50Hz |
Y-axis stroke |
180mm |
|
Input power |
5.3Kw |
Z-axis stoke |
220mm |
|
Air pressure |
0.5-0.8 M pa |
Cutting angle |
0 and 90 degrees |
|
Air consumption |
80L /min |
Blade size |
Φ300mm |
|
Spindle motor |
3Kw 2800r/min |
Dimension |
2100*1400*1800mm |
|
Servo motor |
3*0.75Kw 3000r/min |
Weight |
800kg |
Competitive Advantage:
1.X/Y/Z three-axis servo feeding ensures high accuracy of milling depth, height and width.
2.Rotatable spindle works in both vertical and horizontal planes, greatly improving efficiency for large-size tenon processing.
3.Heavy-duty welded machine body with stress-relieved treatment and CNC machining guarantees stable running accuracy.
4.High-rigidity air-cooled spindle, plus Taiwan HIWIN guide rails, racks and high-strength ball screws for superior precision and stability.
5.PLC system stores multiple programs, allowing quick program calling and direct processing for different profiles.
