Heavy-Duty Metal Tube Laser Cutting Machine
Unstoppable force. Unmatched capacity. Engineered for the heaviest tubes.
A laser cutting powerhouse purpose-built for heavy structural steel, construction machinery, and ultra-large tube processing. The Thunder TSeries combines a groundbreaking heavy-duty frame with a robust high-power laser core, effortlessly mastering oversized, overweight, and extra-long tubes. It stands unrivaled in bevel cutting and complex profile machining.
Applications:
- Construction Machinery: Booms, arms, and chassis tubes for excavators, cranes, and loaders.
- Structural Steel: Truss and grid node tubes for stadiums, airports, and high-speed rail stations.
- Marine & Offshore: Piping systems, jacket structures, and outfitting components for offshore platforms and shipbuilding.
- Transportation: Rail vehicle frameworks, heavy truck chassis rails, and trailer pillars.
- Energy & Power: Wind tower internals, boiler heat exchanger tube sheets, and transmission towers.
Product General Information:
|
Place of Origin: |
Jinan, Shandong, China |
|
Brand Name: |
Hisena CNC |
|
Model Number: |
Thunder T Series |
Specifications:
|
Series |
Laser Power (W) |
Processing Range (mm) |
Weight (T) |
|
12036T-3 |
6000 - 20000 |
Φ40-360 □40-250 |
≈24.0 |
|
12036T-4 |
6000 - 20000 |
Φ40-360 □40-250 |
≈24.5 |
|
12050T-4 |
12000 - 20000 |
Φ50-500 □50-350 |
≈29.0 |
|
12063T-4 |
12000 - 30000 |
Φ80-630 □80-450 |
≈30.0 |
Core Selling Points：
1. Rock-Solid Heavy-Duty Bed
Constructed with a high-rigidity integrated welded bed and heavy-duty rail system, the machine weighs up to 30 tons, providing an unshakable foundation for stable conveying and high-speed cutting of ultra-large tubes. Its unique structure effectively suppresses centrifugal vibration during rotation of long tubes, ensuring consistent precision even on large-diameter, thick-walled pipes.
2. One-Pass Integrated Bevel Cutting

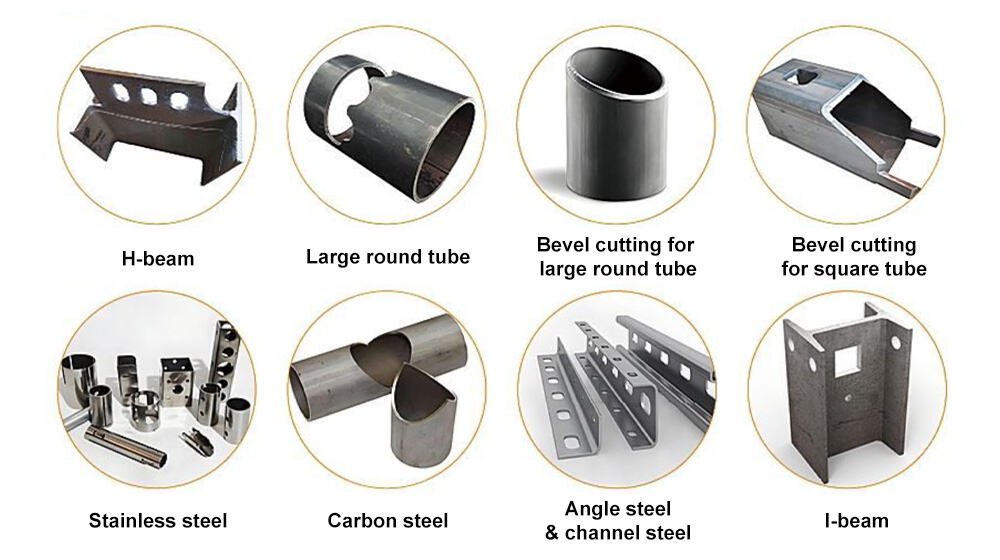

Equipped with a standard 3D five-axis bevel cutting head, the system supports one-pass completion of various bevel types (Y, V, K, X) on large round tubes, square tubes, and H-beams. This eliminates the cumbersome traditional process of cutting followed by milling, drastically reducing welding preparation time and significantly enhancing subsequent weld quality and structural integrity.
3. Superior Compatibility and Versatility
With a processing range spanning diameters from 40mm to 630mm, the machine seamlessly handles round, square, rectangular tubes, H-beams, and various profiles. Configurable with 6kW to 30kW laser sources, it effortlessly switches from high-quality cutting of thin-walled tubes to rapid piercing of thick-walled plates.
4. Intelligent Operation, Maximum Efficiency
Featuring an intelligent follow-up support system and heavy-duty precision chucks, the machine auto-centers and aligns instantly upon loading. A high-dynamic servo drive system ensures smooth transitions across complex contours and bevel switches, with traverse speeds and cutting acceleration reaching industry-leading benchmarks—redefining productivity in heavy-duty tube processing.
Parameter Highlights:
- Ultra-High Power Range: Supports up to 30kW laser power for efficient cutting of carbon steel tubes exceeding 20mm wall thickness and large H-beams.
- Extra-Large Diameter Capacity: Maximum processing diameter of 630mm meets demands for large-scale connectors in construction machinery and structural steel.
- Heavy-Duty Load-Bearing Design: The 30-ton class reinforced frame delivers exceptional stability for high-speed rotary cutting of large-diameter, thick-walled tubes, ensuring superior accuracy and extended service life.
